Overview
The ZF 0501.212.371 FRICTION DISC is a critical wear component engineered specifically for the clutch pack assemblies within the WG190 and related heavy-duty transmission series. This OEM genuine part ensures precise torque transfer and smooth gear engagement by providing the necessary frictional surface between rotating steel plates. Located inside the clutch drum, the SKU 0501.212.371 works in concert with the TRANSMISSION HOUSING to maintain hydraulic pressure integrity and prevent power loss during high-load operations.
Symptoms of Failure
- Delayed or harsh gear engagement: When the friction material wears thin, you may notice a lag when shifting from neutral to drive or reverse, often accompanied by a jarring thud.
- Transmission slipping under load: A worn 0501.212.371 disc causes the clutch pack to lose grip, resulting in RPM flare-ups without corresponding vehicle acceleration, especially on inclines.
- Burnt transmission fluid odor: Excessive heat from friction disc slippage degrades the ATF, producing a distinct burnt smell and darkening the fluid color.
- Metallic debris in the oil pan: As the friction lining disintegrates, particles accumulate in the sump, often visible during routine fluid changes or when inspecting the HOUS.FRONT SECT.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 0501.212.371 |
| Material | High-carbon steel core with sintered bronze friction lining |
| Outer Diameter | 180 mm (7.09 in) |
| Inner Diameter | 120 mm (4.72 in) |
| Thickness | 3.5 mm (0.138 in) |
| Weight | 0.45 kg (1.0 lb) |
| OEM Reference | ZF 0501.212.371 |
| Operating Temperature Range | -40°C to +150°C |
Compatibility
This friction disc is designed for ZF WG-series powershift transmissions, including the WG180, WG190, WG191, WG200, WG210, and WG230 models. It also fits select BP-series units such as the BP210 and BP230. The part is typically used in the forward clutch pack and requires proper alignment with the HOUSING REAR PART and the CYLINDRICAL PIN for correct assembly. Always verify the number of friction and steel plates in your specific transmission model before installation.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4657101039 | TRANSMISSION HOUSING | Encloses and supports all internal gear train components |
| 4657201028 | HOUS.FRONT SECT | Front section of the transmission case, houses the torque converter |
| 4657201013 | HOUSING REAR PART | Rear case section that supports output shaft bearings |
| 0631306792 | CYLINDRICAL PIN | Alignment dowel for precise housing mating |
| 0636100801 | CAP SCREW | Fastener for securing clutch pack retainers |
| 4656301148 | FIXING PLATE | Locks clutch pack components in position |
| 4657301034 | SCREEN SHEET | Fine mesh filter for hydraulic circuit protection |
| 4657301035 | SCREEN SHEET | Secondary filter screen for oil return line |
| 0636100803 | CAP SCREW | Bolt for valve body attachment |
| 4681301040 | OIL FEED.HOUSG. | Distributes pressurized oil to clutch packs |
ZF 0501.212.371 FRICTION DISC – Friction Plate RFQ Support
PartsZF helps B2B buyers source ZF 0501.212.371 FRICTION DISC with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This friction plate page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 0501.212.371 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
- Documentation reference: 4657023001
- Documentation reference: 4657023002
- Documentation reference: 4657023003
- Documentation reference: 4657023004

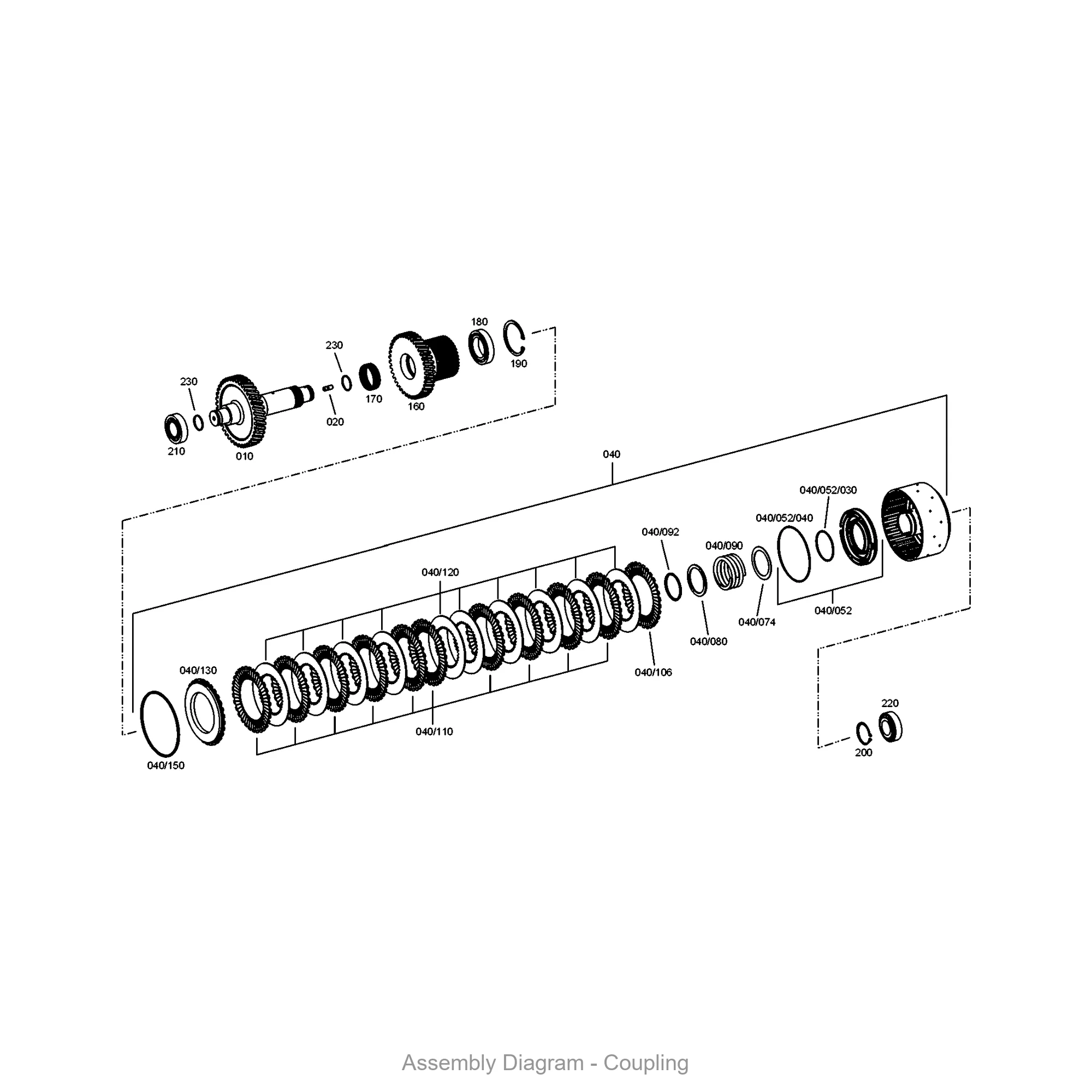

- Illustration section: COUPLING
- Illustration section: CLUTCH
Cross Reference Support
- Cross-reference record available for RFQ review.
Specification Snapshot
| ZF part number | 0501.212.371 |
|---|---|
| Normalized SKU | 0501212371 |
| Part name | FRICTION DISC |
| Product category | friction plate |
| Cross-reference support | Available for RFQ review |
| Weight | 0.13 |
Image and Documentation Notes
Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
Related Parts
More related ZF transmission parts can be reviewed through the PartsZF catalog and RFQ workflow.
