Overview
The ZF 0501.214.895 GEAR PUMP is a critical hydraulic component engineered for the WG115, WG131, and WG160 series transmissions. This OEM genuine part is responsible for generating the necessary oil flow and pressure to actuate clutch packs, lubricate internal gears, and maintain thermal stability within the transmission housing. Positioned directly on the front section of the gearbox, this pump draws fluid from the sump and delivers it through the valve body. The SKU 0501.214.895 is a direct replacement unit that meets ZF’s stringent factory tolerances, ensuring consistent volumetric efficiency. When installed alongside the 4656101037: TRANSMISSION HOUSING, it forms the core hydraulic circuit that powers the entire drivetrain.
Symptoms of Failure
- Erratic gear engagement or slipping under load: A worn gear pump cannot maintain adequate line pressure, causing clutches to slip during acceleration or hill climbs.
- Whining or cavitation noise from the transmission: Air ingestion or worn gears produce a high-pitched whine that intensifies with engine RPM, indicating internal wear.
- Low hydraulic pressure at the test port: When the pump fails to generate the rated pressure (typically 12-18 bar), shift quality degrades and the transmission may enter limp mode.
- Visible oil leaks around the pump mounting flange: Degraded seals or a cracked 4656201075: HOUS.FRONT SECT can allow fluid to weep externally, leading to low oil levels and overheating.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (OEM) | 0501.214.895 |
| Pump Type | External gear, fixed displacement |
| Displacement | 14.5 cc/rev (estimated) |
| Max Operating Pressure | 22 bar (320 psi) |
| Housing Material | High-strength aluminum alloy |
| Gear Material | Case-hardened steel |
| Weight | 2.3 kg (5.1 lbs) |
| Mounting Bolt Torque | 45 Nm ± 5 Nm |
| OEM Reference | ZF 0501.214.895 |
Compatibility
This gear pump is designed for ZF’s WG and BP series powershift transmissions used in off-highway and industrial machinery. It is a direct fit for the WG115, WG131, WG160, WG171, WG190, WG191, WG210, WG211, and WG230 series, as well as the BP210 and BP230 models. The pump interfaces with the 4656201035: HOUSING REAR PART and the 4472239178: HOUSING REAR PART to complete the hydraulic assembly. Always verify the pump rotation direction (clockwise or counter-clockwise) against your specific transmission build before installation.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 0631306816 | CYLINDRICAL PIN | Aligns pump to housing bore |
| 4656301148 | FIXING PLATE | Secures pump axial position |
| 0636100817 | CAP SCREW | Fastens pump to front housing |
| 4656301016 | SCREEN SHEET | Coarse filtration at pump inlet |
| 4656301017 | SCREEN SHEET | Fine filtration for valve body |
| 0636100803 | CAP SCREW | Mounts rear housing section |
ZF 0501.214.895 GEAR PUMP – Fast RFQ Support
PartsZF helps B2B buyers source ZF 0501.214.895 GEAR PUMP with expert part-number lookup, documentation review, and export coordination. As an authorized ZF parts distributor and focused ZF transmission parts supplier, we help reduce sourcing uncertainty before purchase.
ZF Part Number
Use ZF part number 0501.214.895 when sending an RFQ. The normalized lookup number is 0501214895, and our team can check dotted, spaced, and compact number formats.
Application or Assembly Context
- Transmission family: 3 WG 131
- Transmission family: 3 WG 171
- Transmission family: 6 WG 115
- Transmission family: 6 WG 160
- Assembly section: PRESSURE OIL PUMP
- PRESSURE OIL PUMP position 010 qty 1.0
Cross Reference
- 徐工铲运RZ: 860332426 (OEM)
- 徐工铲运: 860145609 (OEM)
- 柳工: SP155065 (OEM)
Replacement / Failure Scenario
This GEAR PUMP is relevant for service teams comparing a removed component, preparing a transmission repair quotation, or matching a diagram position before purchase. PartsZF supports WG / BP / HL / ERGOPOWER transmission parts inquiries for construction machinery buyers.
Specification Table
| ZF part number | 0501.214.895 |
|---|---|
| Normalized number | 0501214895 |
| Part name | GEAR PUMP |
| Group | Gear Pump / Oil Pump |
| BOM occurrence count | 30 |
| Illustration count | 1 |

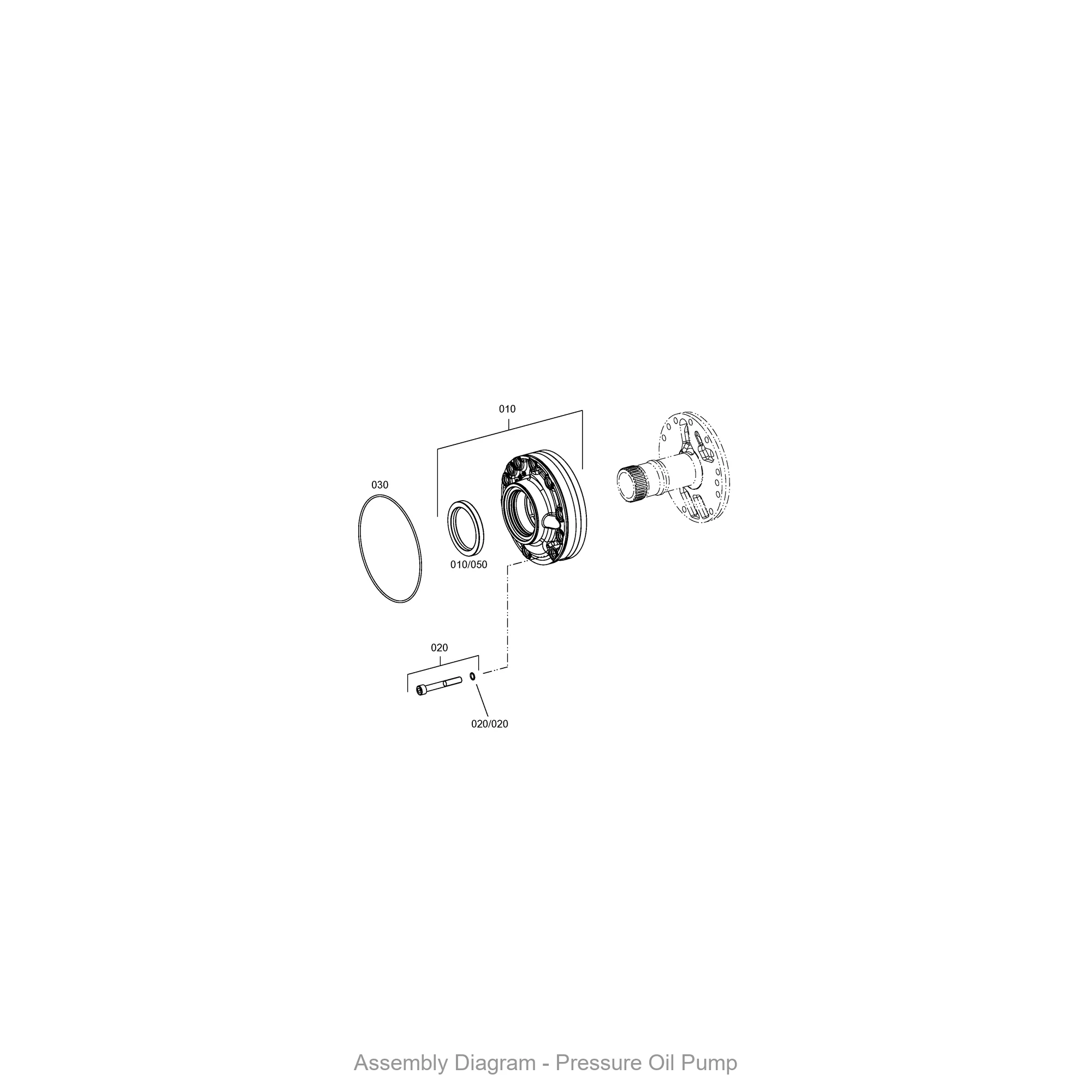

Image or Diagram Note

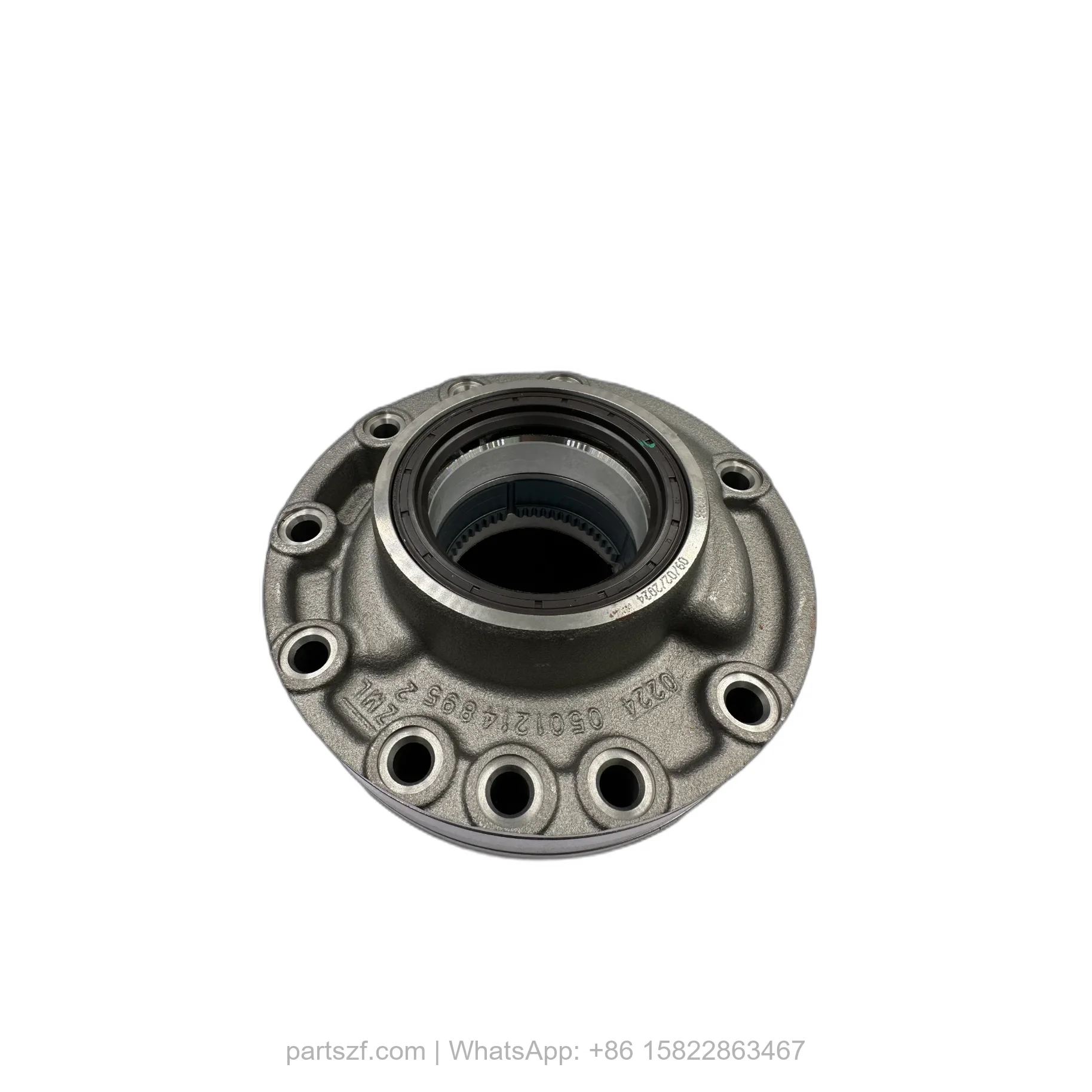

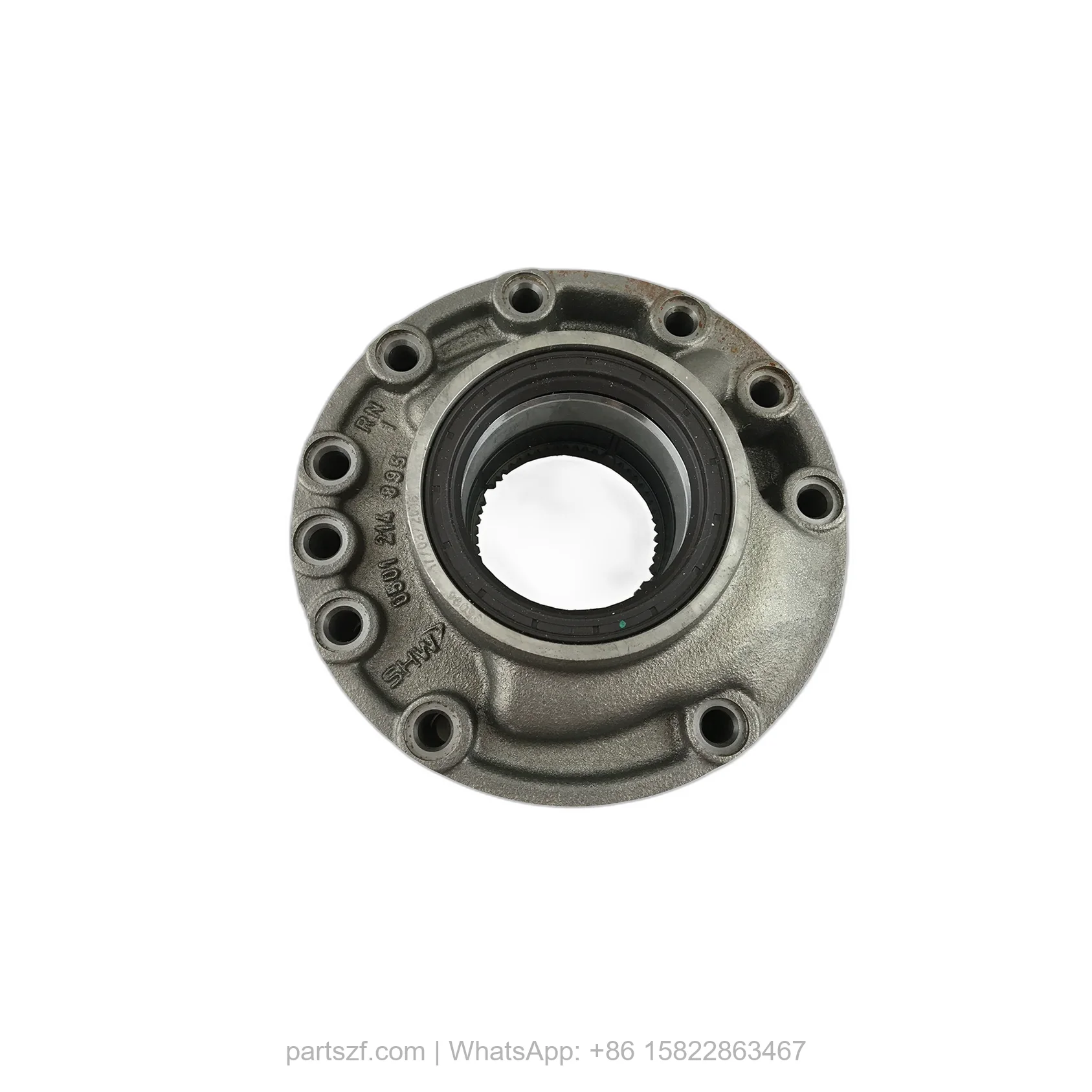

Current image support for this product is real photo. Share product photos, nameplate photos, or diagram positions with your RFQ to speed up part-number confirmation.
RFQ Confirmation Checklist
- ZF part number or OEM cross-reference number
- Transmission family or assembly number
- Machine model, serial number, or visible nameplate photo
- Removed-part photo and diagram position if available
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
