Overview
The ZF 0501.224.504 LINED CLUTCH DISK is a critical friction component engineered for the WG100, WG130, and WG131 transmission series. This OEM genuine part sits within the clutch pack assembly, where it transfers torque from the engine to the gearbox via hydraulic pressure. Designed to withstand high thermal loads, the lined friction surface ensures smooth engagement and disengagement during shifting. The SKU 0501.224.504 is a direct replacement for worn units, restoring transmission efficiency and preventing power loss. When installed alongside the 4143101009: HOUSING and 4143301025: HOUSING, this disk maintains proper alignment within the clutch drum.
Symptoms of Failure
- Transmission gear slipping under load: A worn 0501.224.504 disk loses friction material, causing the clutch to slip during acceleration or uphill driving. This often triggers diagnostic trouble codes for clutch pressure.
- Delayed or harsh gear engagement: When the lined surface becomes glazed or worn, shifts feel jerky or take longer than normal. This symptom is common in WG100 and WG130 units with high mileage.
- Burning smell from transmission fluid: Excessive heat from friction generates a distinct burnt odor, indicating the disk is no longer gripping properly. Immediate replacement prevents damage to the 0634313603: O-RING and adjacent seals.
- Fluid contamination with dark particles: As the friction lining degrades, debris enters the hydraulic circuit. This can clog the 4475280018: SCREW PLUG passages and reduce overall system pressure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 0501.224.504 |
| Type | Lined Clutch Disk (Friction Plate) |
| Outer Diameter | 224 mm (estimated) |
| Inner Diameter | 150 mm (estimated) |
| Thickness | 3.5 mm (new, nominal) |
| Material | Steel core with organic friction lining |
| Weight | 0.45 kg (approx.) |
| OEM Reference | ZF 0501.224.504 |
| Torque Capacity | 450 Nm (estimated for WG series) |
Compatibility
This clutch disk is specifically designed for ZF WG100, WG130, and WG131 transmissions. It is also compatible with select WG180 and WG200 variants that share the same clutch pack dimensions. Always verify the spline count and friction plate stack height before installation. For complete assembly, pair this disk with the 0501342341: SUPPORT RING to ensure proper spacing, and replace the 4143298457: SEAL KIT to prevent fluid leaks.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4143101009 | HOUSING | Encloses the clutch pack assembly |
| 4143301025 | HOUSING | Outer drum housing for torque transfer |
| 0634313603 | O-RING | Seals hydraulic pressure within the clutch circuit |
| 4475280018 | SCREW PLUG | Secures fluid passages in the valve body |
| 0501342341 | SUPPORT RING | Positions the clutch disk stack |
| 4143298457 | SEAL KIT | Complete set of gaskets and O-rings |
| 0634313591 | O-RING | Secondary seal for clutch piston |
| 0636101068 | CAP SCREW | Fastens housing components |
| 4143221013 | THROTTLE VALVE | Regulates hydraulic flow during shifts |
| 0634304484 | O-RING | Seals the throttle valve bore |
ZF 0501.224.504 LINED CLUTCH DISK – Clutch Disk RFQ Support
PartsZF helps B2B buyers source ZF 0501.224.504 LINED CLUTCH DISK with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This clutch disk page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 0501.224.504 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
- Illustration section: COUPLING
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 0501.224.504 |
|---|---|
| Normalized SKU | 0501224504 |
| Part name | LINED CLUTCH DISK |
| Product category | clutch disk |
| Cross-reference support | Available for RFQ review |
| Weight | 0.033 |
Image and Documentation Notes

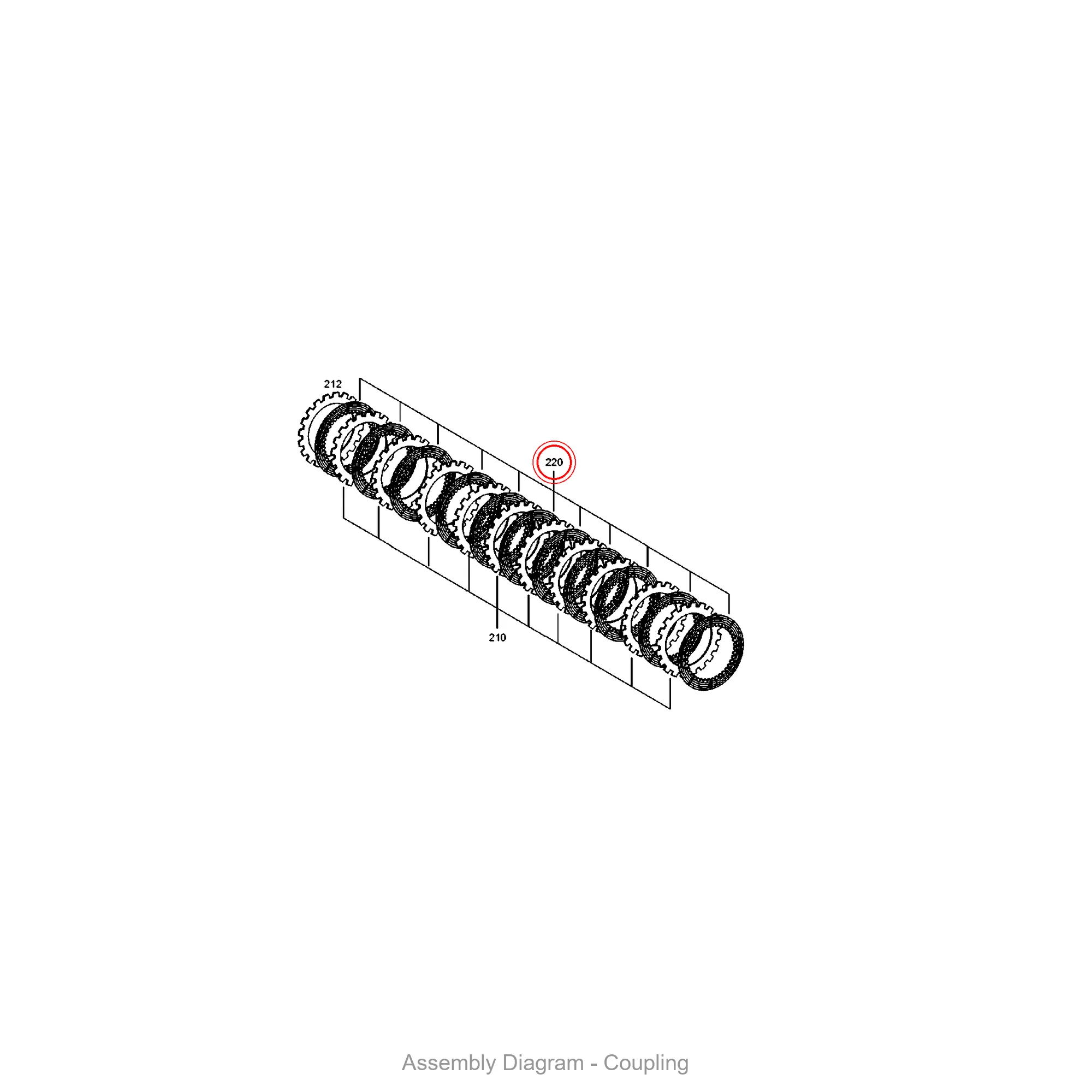

Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
Related Parts
- ZF 4646.351.182 INNER CLUTCH DISK
- ZF 2093.359.051 INNER CLUTCH DISK
- ZF 0501.313.598 OUTER CLUTCH DISK
- ZF 4661.351.003 OUTER CLUTCH DISK
- ZF 0501.228.272 INNER CLUTCH DISK
