ZF 0501.226.215 ROTOR SET
ZF Part Number: 0501.226.215 (also written as 0501226215 / 0501.226.215 / 0501 226 215)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Gear Shift Sensor | 095 | 1 |
| Lube Oil Pump | 350 | 1 |
| Output | 095 | 1 |
Application / Compatibility
| Assembly | Section | Model |
|---|---|---|
| 4143.000.124 | GEAR SHIFT SENSOR | — |
| 4143.000.125 | GEAR SHIFT SENSOR | — |
| 4143.000.126 | GEAR SHIFT SENSOR | — |
| 4143.000.130 | GEAR SHIFT SENSOR | — |
| 4143.000.132 | GEAR SHIFT SENSOR | — |
| 4143.000.137 | GEAR SHIFT SENSOR | — |
| 4143.000.141 | GEAR SHIFT SENSOR | — |
| 4143.000.143 | GEAR SHIFT SENSOR | — |
| 4143.000.152 | GEAR SHIFT SENSOR | — |
| 4143.000.154 | GEAR SHIFT SENSOR | — |
Related Parts in Same Assembly
- 4143.101.009 — HOUSING (Qty: 1)
- 4143.101.410 — HOUSING (Qty: 1)
- 4143.102.002 — INPUT (Qty: 1)
- 4143.102.405 — INPUT (Qty: 1)
- 4143.103.005 — OUTPUT (Qty: 1)
- 4143.103.401 — OUTPUT (Qty: 1)
- 4143.115.003 — PLANETARY DRIVE (Qty: 1)
- 4143.121.007 — OIL PIPE (Qty: 1)
Frequently Asked Questions
What is ZF part number 0501.226.215?
ZF 0501.226.215 is an OEM rotor set produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as various ZF transmission models. This is a genuine ZF component, not an aftermarket reproduction.
Where is ZF 0501.226.215 installed in the transmission?
This rotor set is located in the gear shift sensor area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 095 in the Gear Shift Sensor section.
How do I look up ZF part 0501.226.215?
This part can be found under several formats: 0501226215 / 0501.226.215 / 0501 226 215. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0501.226.215).
Where can I buy ZF 0501.226.215?
You can purchase genuine ZF 0501.226.215 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

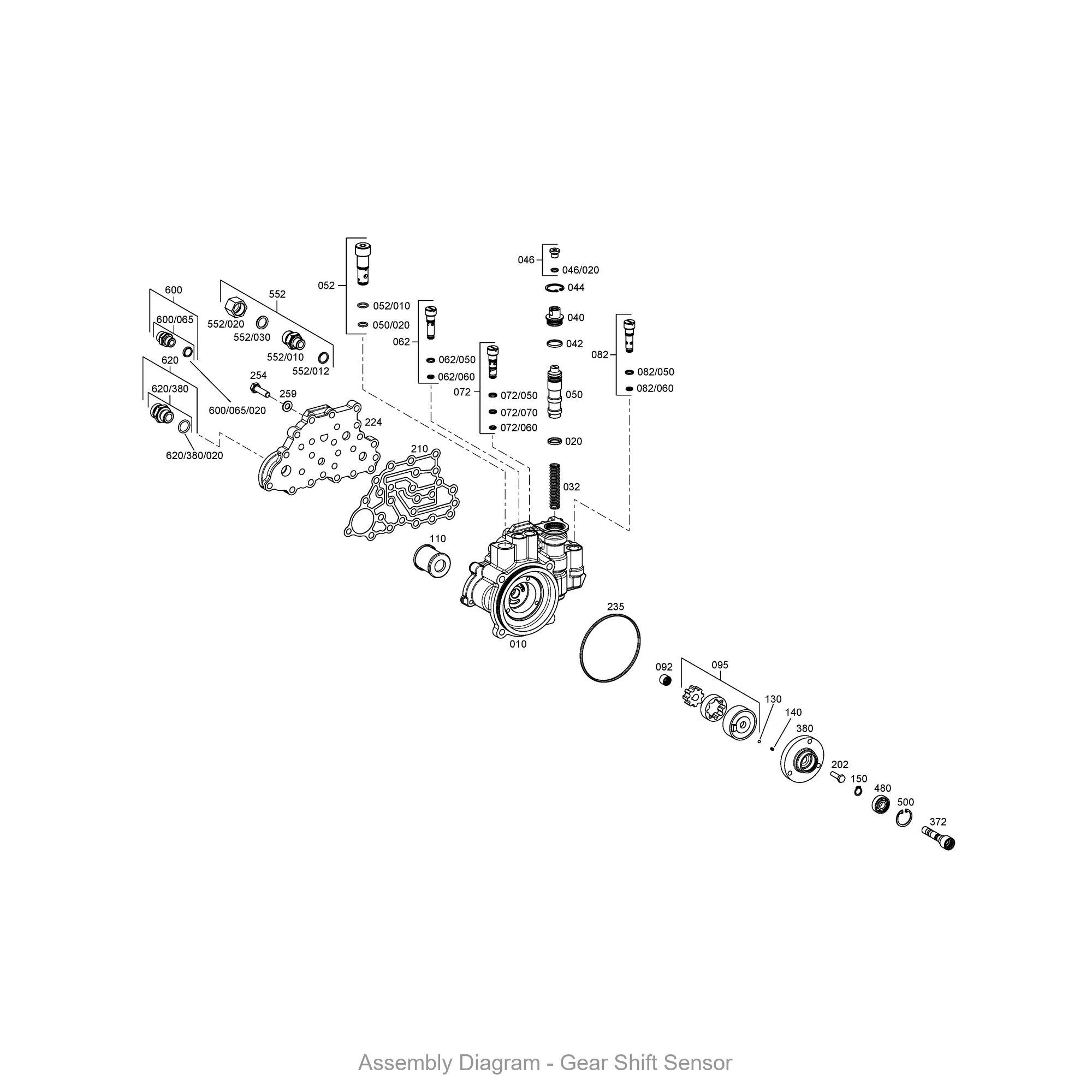

Exploded View / Assembly Diagram
The diagram below shows where ZF 0501.226.215 is located within the transmission assembly.
