ZF 0501.310.470 SOLENOID VALVE
ZF Part Number: 0501.310.470 (also written as 0501310470 / 0501.310.470 / 0501 310 470)
Compatible ZF Transmission Models
This solenoid valve is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 150
- ZF 4 WG 180
- ZF 4 WG 200
- ZF 4 WG 200(555)
- ZF 4 WG 200(555/5)
- ZF 4 WG 65
- ZF 6 WG 200
- ZF 6 WG 200(555)
- ZF 6 WG 200(555/4)
- ZF 6 WG 200(555/5)
- ZF 6 WG 65
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Control Unit | 090 | 1 |
| Control Unit | 880 | 1 |
| Shift System | 1180 | 1 |
| Shift System | 1181 | 1 |
| Shift System | 59.600 | 1 |
| Shift System | 600 | 2 |
| Shift System | 880 | 1 |
| Shuttle Valve | 340 | 1 |
Related Parts in Same Assembly
- 4616.101.089 — TRANSMISSION HOUSING (Qty: 1)
- 4616.102.057 — INPUT (Qty: 1)
- 4616.102.420 — INPUT (Qty: 1)
- 4616.103.089 — OUTPUT (Qty: 1)
- 4616.103.422 — OUTPUT (Qty: 1)
- 4616.105.051 — OUTPUT (Qty: 1)
- 4616.106.020 — SHIFT SYSTEM (Qty: 1)
- 4616.159.031 — SHIFT SYSTEM (Qty: 1)
Frequently Asked Questions
What is ZF part number 0501.310.470?
ZF 0501.310.470 is an OEM solenoid valve produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 150, 4 WG 180, 4 WG 200, 4 WG 200(555). This is a genuine ZF component — not an aftermarket reproduction.
Which ZF transmissions use 0501.310.470?
This solenoid valve is found in 12 ZF transmission variants, including: 3 WG 200, 4 WG 150, 4 WG 180, 4 WG 200, 4 WG 200(555), 4 WG 200(555/5), 4 WG 65, 6 WG 200, 6 WG 200(555), 6 WG 200(555/4). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0501.310.470 installed in the transmission?
This solenoid valve is located in the shift system, shuttle valve area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 090 in the Control Unit section.
How do I look up ZF part 0501.310.470?
This part can be found under several formats: 0501310470 / 0501.310.470 / 0501 310 470. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0501.310.470).
How do I test ZF 0501.310.470?
Test this solenoid valve by measuring the coil resistance with a multimeter. Compare the reading against the values specified in the ZF service manual for your transmission model. Also check for physical damage and connector corrosion.
What are common failure symptoms of ZF 0501.310.470?
Common symptoms include erratic shifting, delayed gear engagement, fault codes related to solenoid circuits, and transmission slipping. Diagnose with ZF diagnostic tools before replacing.
Where can I buy ZF 0501.310.470?
You can purchase genuine ZF 0501.310.470 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

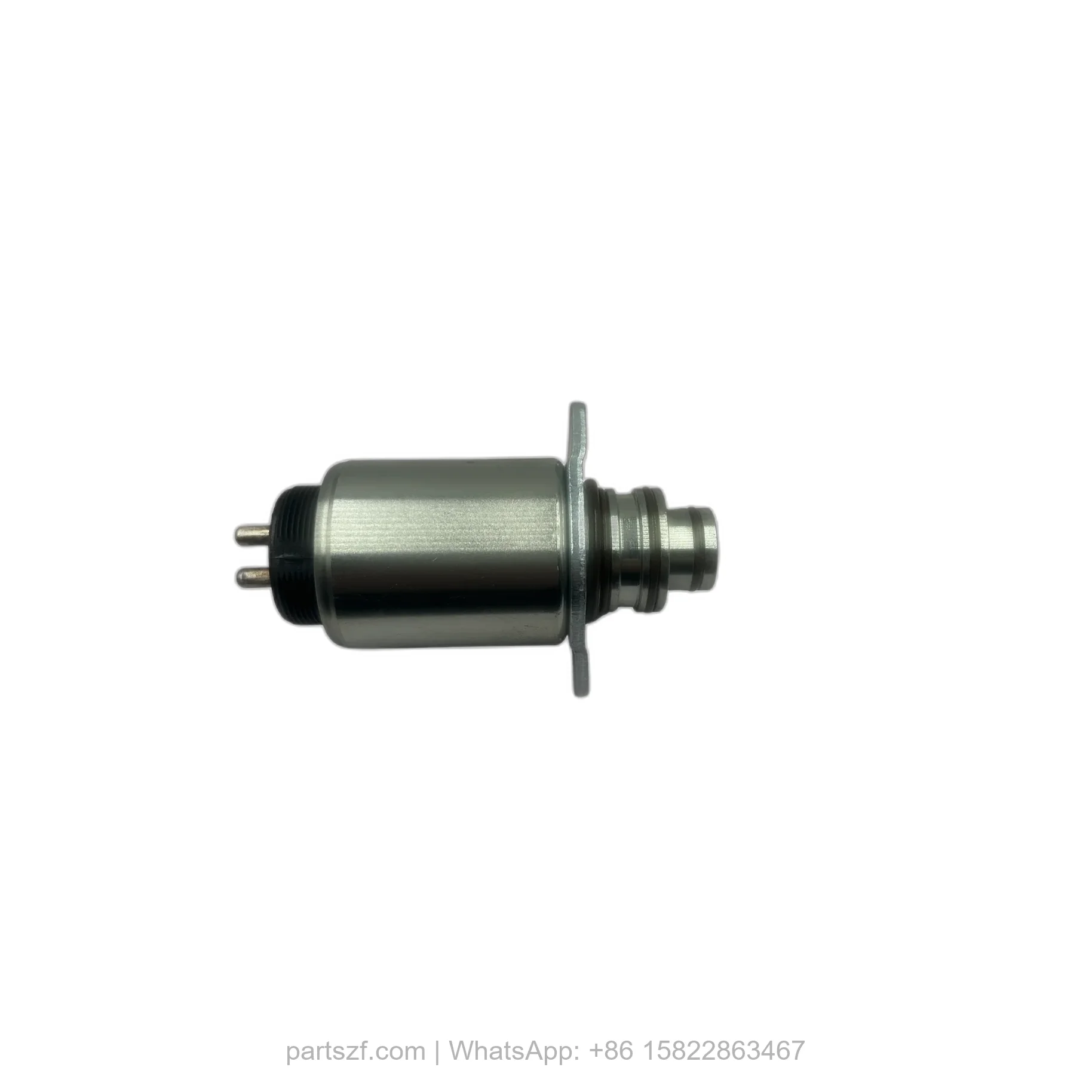

Product Photos

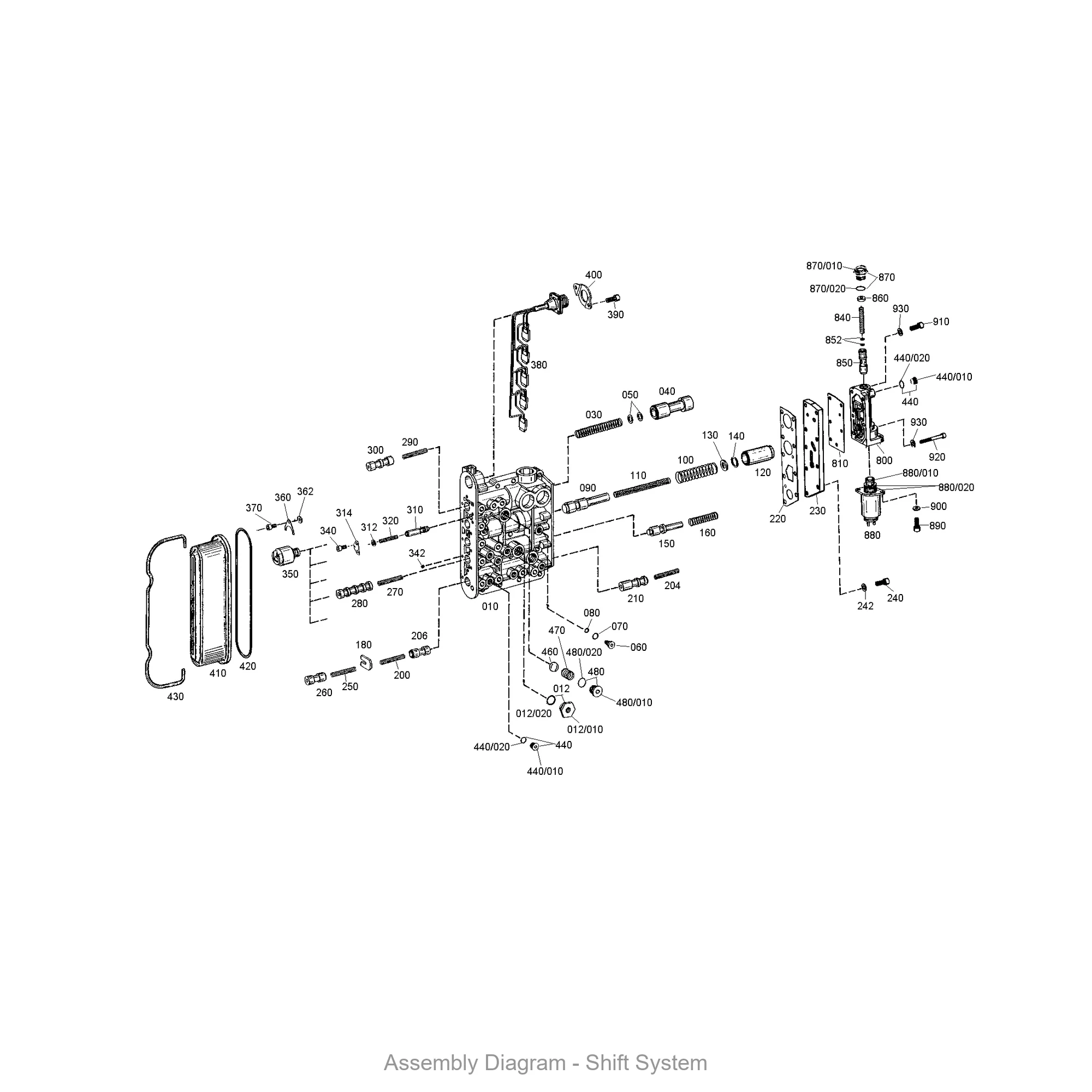

Exploded View / Assembly Diagram
The diagram below shows where ZF 0501.310.470 is located within the transmission assembly.
