ZF 0501.317.991 OUTPUT FLANGE
ZF Part Number: 0501.317.991 (also written as 0501317991 / 0501.317.991 / 0501 317 991)
Compatible ZF Transmission Models
This output flange is used in the following ZF transmission models:
- ZF 4 WG 190
- ZF 4 WG 200(500)
- ZF 4 WG 200(555)
- ZF 4 WG 210
- ZF 5 WG 190
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Axle Disconnection | 011 | 1 |
| Axle Disconnection | 560 | 1 |
| Differential | 110 | 1 |
| Output | 03.140 | 1 |
| Output | 080 | 1 |
| Output | 140 | 1 |
Related Parts in Same Assembly
- 0501.003.819 — BRAKE (Qty: 1)
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 0750.131.053 — REPLACEMENT FILTER (Qty: 1)
- 4168.034.002 — CONVERTER (Qty: 1)
- 4644.221.197 — SUCTION TUBE (Qty: 1)
- 4644.301.333 — HOUSING (Qty: 1)
- 4644.302.188 — INPUT SHAFT (Qty: 1)
- 4644.306.284 — VALVE HOUSING (Qty: 1)
Frequently Asked Questions
What is ZF part number 0501.317.991?
ZF 0501.317.991 is an OEM output flange produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 190, 4 WG 200(500), 4 WG 200(555), 4 WG 210, 5 WG 190. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0501.317.991?
This output flange is found in 5 ZF transmission variants, including: 4 WG 190, 4 WG 200(500), 4 WG 200(555), 4 WG 210, 5 WG 190. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0501.317.991 installed in the transmission?
This output flange is located in the axle disconnection, differential, output area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 011 in the Axle Disconnection section.
How do I look up ZF part 0501.317.991?
This part can be found under several formats: 0501317991 / 0501.317.991 / 0501 317 991. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0501.317.991).
Where can I buy ZF 0501.317.991?
You can purchase genuine ZF 0501.317.991 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

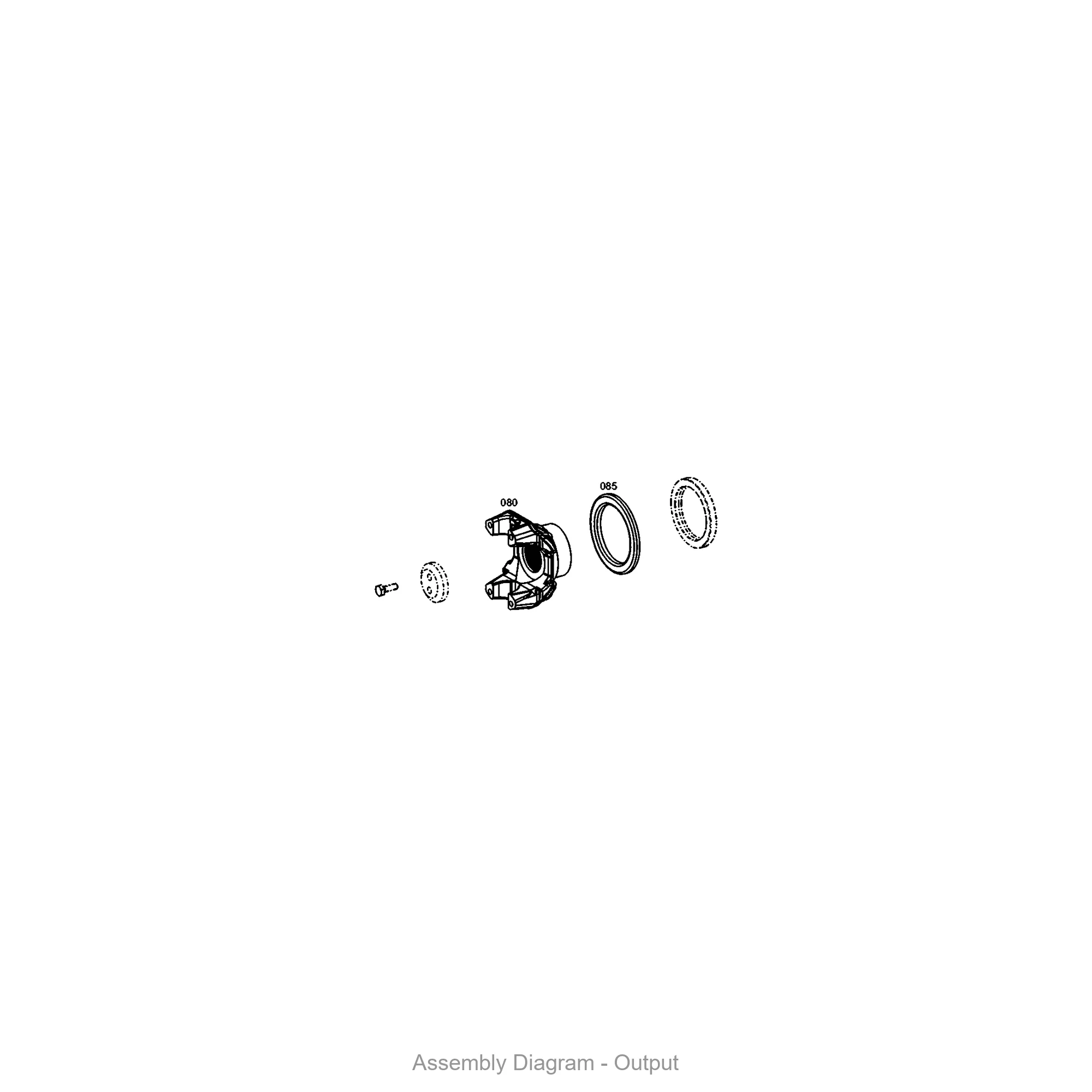

Exploded View / Assembly Diagram
The diagram below shows where ZF 0501.317.991 is located within the transmission assembly.
