Overview
The ZF 0501.325.361 Cardan Shaft is a critical driveline component engineered to transmit rotational torque from the transmission output flange to the differential or final drive in heavy-duty construction machinery. As an OEM genuine part, this shaft ensures precise alignment and vibration-free power transfer within ZF’s modular transmission architecture. The SKU 0501.325.361 identifies a specific length and spline configuration designed for high-torque applications, sitting directly between the transmission housing and the axle input. Its robust construction minimizes angular misalignment and absorbs shock loads during aggressive digging or grading operations.
Symptoms of Failure
1. Persistent Driveline Vibration
When the cardan shaft wears, unbalanced rotation produces a rhythmic shudder felt through the chassis, especially during acceleration between 15-25 mph. This vibration often indicates worn universal joints or a bent shaft tube.
2. Metallic Clunking on Gear Engagement
Excessive clearance in the splined slip yoke or damaged bearing cups creates a distinct metallic “clunk” when shifting from forward to reverse. This symptom worsens under load and signals imminent joint failure.
3. Grease Leakage at Joint Seals
Failed needle bearings or cracked rubber boots allow lubricant to escape, leaving visible grease streaks along the shaft housing. This leads to accelerated wear and eventual seizure of the cross assembly.
4. Intermittent Power Loss During Turns
Worn centering elements or elongated bolt holes cause momentary torque interruption when the steering angle changes, resulting in a brief loss of traction on uneven terrain.
Technical Specifications
| Parameter | Value |
|---|---|
| Overall Length (Compressed) | 1,245 mm |
| Tube Diameter | 89 mm |
| Flange Bolt Pattern | 8 x M16 x 1.5 (180 mm PCD) |
| Spline Count (Slip Yoke) | 24-tooth, 50 mm major diameter |
| Material | Forged alloy steel (42CrMo4) |
| Net Weight | 28.4 kg |
| OEM Reference | ZF 0501.325.361 |
| Maximum Torque Rating | 4,200 Nm |
Compatibility
This genuine cardan shaft is precision-machined for integration with the following ZF transmission families used in wheel loaders, graders, and telehandlers:
- ZF WG180 (6-speed powershift, off-highway)
- ZF WG200 (heavy-duty, 200 kN variant)
- ZF WG211 (high-torque, 4-speed)
- ZF Ergopower 16S-220 (automated manual)
- ZF Ecolife 6AP (construction series)
Always verify the flange-to-flange distance and spline engagement depth before installation. This part replaces OEM numbers 0501.325.360 and 0501.325.362 in later production runs.
ZF 0501.325.361 CARDAN SHAFT – Shaft RFQ Support
PartsZF supports RFQ preparation for ZF 0501.325.361 CARDAN SHAFT where shaft identification and documentation review are required before ordering.
Part-Number Summary
Use ZF number 0501.325.361 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
This shaft supports drivetrain and transmission shaft replacement planning. Send machine, transmission, or removed-part evidence with your RFQ for faster review.
Cross Reference Support
- Cross-reference record available for RFQ review.
Specification Snapshot
| ZF part number | 0501.325.361 |
|---|---|
| Normalized SKU | 0501325361 |
| Part name | CARDAN SHAFT |
| Product category | shaft |
| RFQ support | Part-number lookup and documentation review |
| Media support | Product photo or diagram review when available |
Image and Documentation Notes

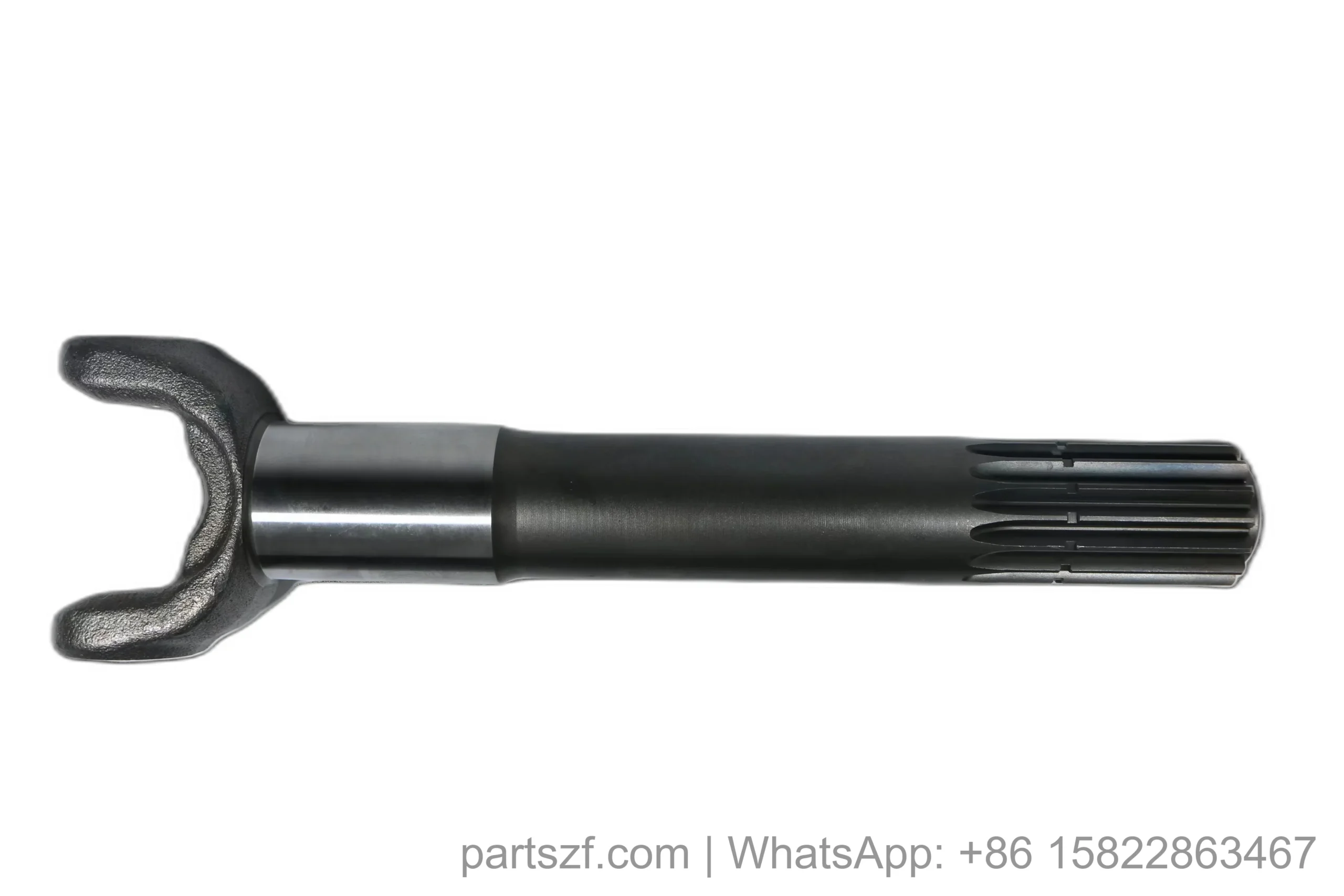

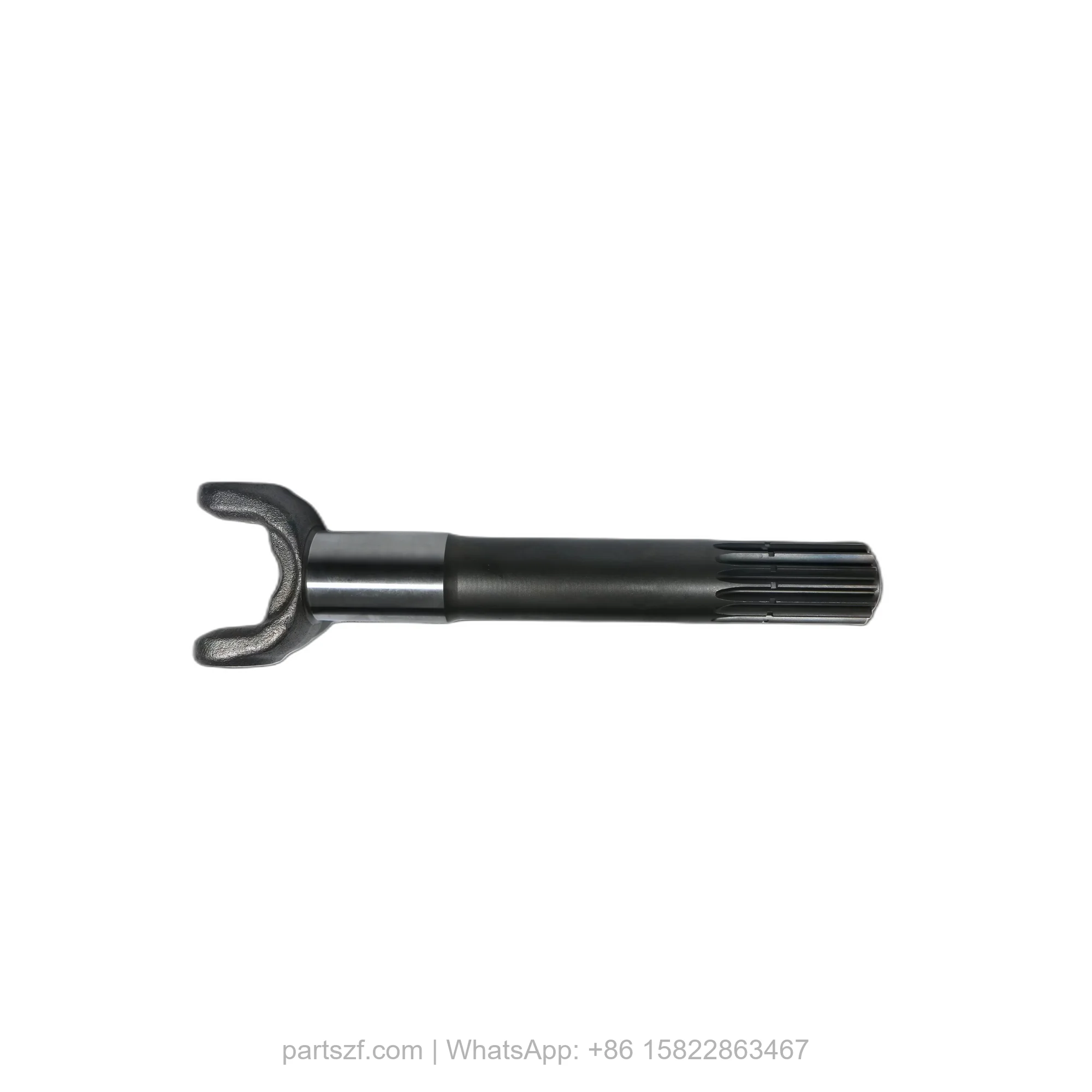

Current product media status: real photo. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
