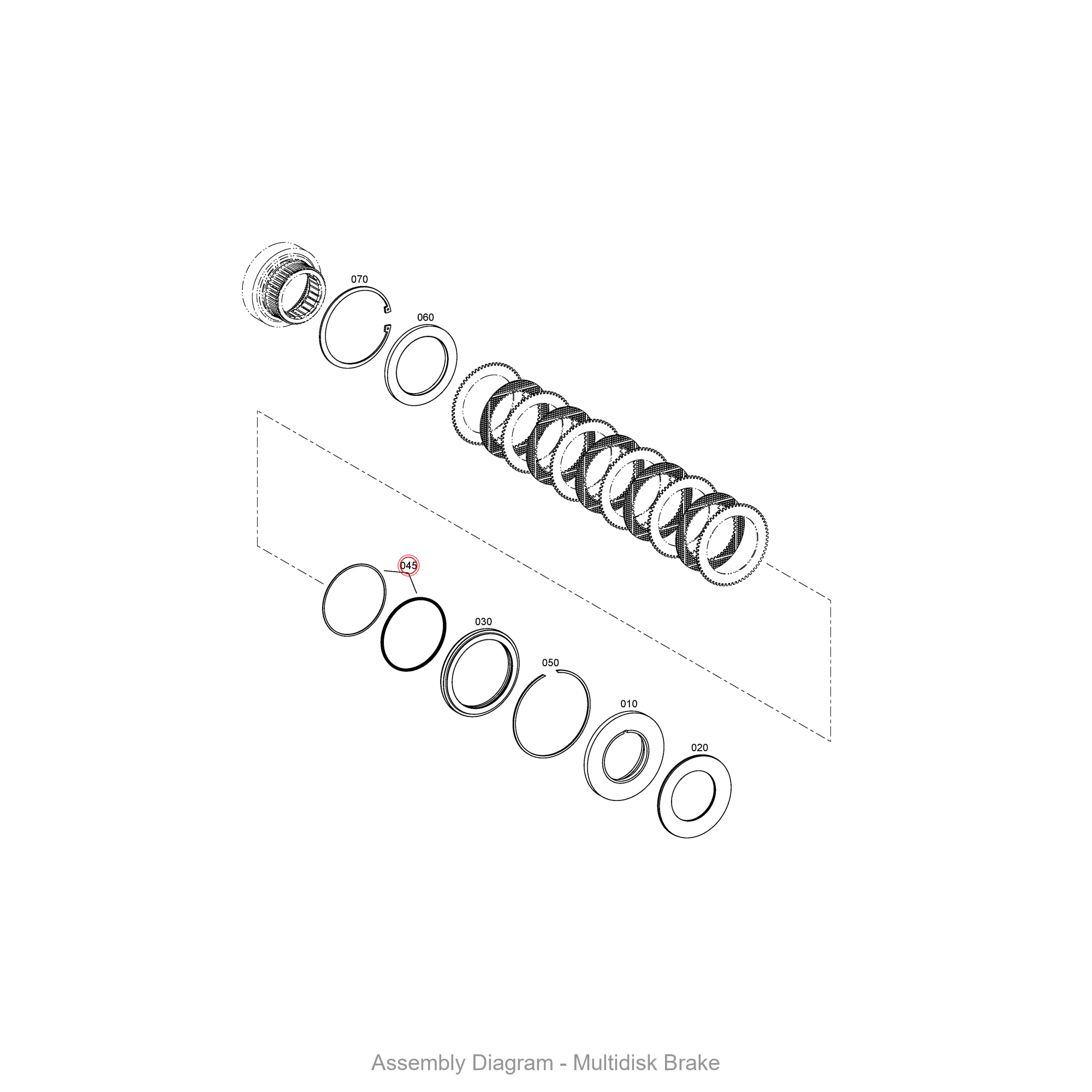

ZF 0501.342.340 SUPPORT RING | OEM Genuine Part

Overview

The ZF 0501.342.340 SUPPORT RING is a precision-engineered OEM genuine component designed to maintain axial alignment and distribute load evenly within the transmission housing assembly. This support ring sits directly behind the clutch pack or planetary gear set, providing critical structural integrity to prevent component shift under high torque conditions. As an OEM genuine part, SKU 0501.342.340 ensures exact fitment and metallurgical consistency for ZF heavy-duty transmissions used in construction machinery. When installed alongside the 4143101009 HOUSING and 4143301025 HOUSING, this support ring forms a sealed, rigid assembly that withstands extreme operational stresses.

Symptoms of Failure

• Transmission oil leaks around the housing joint: A worn or cracked support ring compromises the sealing surface, allowing ATF to escape past the 0634313603 O-RING.
• Gear slipping under load: Loss of axial support causes clutch pack misalignment, resulting in intermittent power transfer and delayed engagement.
• Abnormal vibration or whining noise: A fatigued support ring fails to dampen rotational forces, transmitting harmonics through the 4475280018 SCREW PLUG and adjacent components.
• Metal debris in transmission fluid: Surface spalling from the support ring introduces ferrous particles that accelerate wear on bearings and gears.

Technical Specifications

Compatibility

This support ring is engineered for ZF WG180, WG200, and WG211 series transmissions commonly found in wheel loaders, excavators, and telehandlers. It also fits select ZF 4WG-180 and 4WG-200 variants used in off-highway construction equipment. For precise cross-referencing, always verify against the original housing assembly using the 4143298457 SEAL KIT as a reference for complete overhaul compatibility.
