ZF 0630.000.219 SHIM RING for WG181/WG65 | OEM Genuine Part

Overview

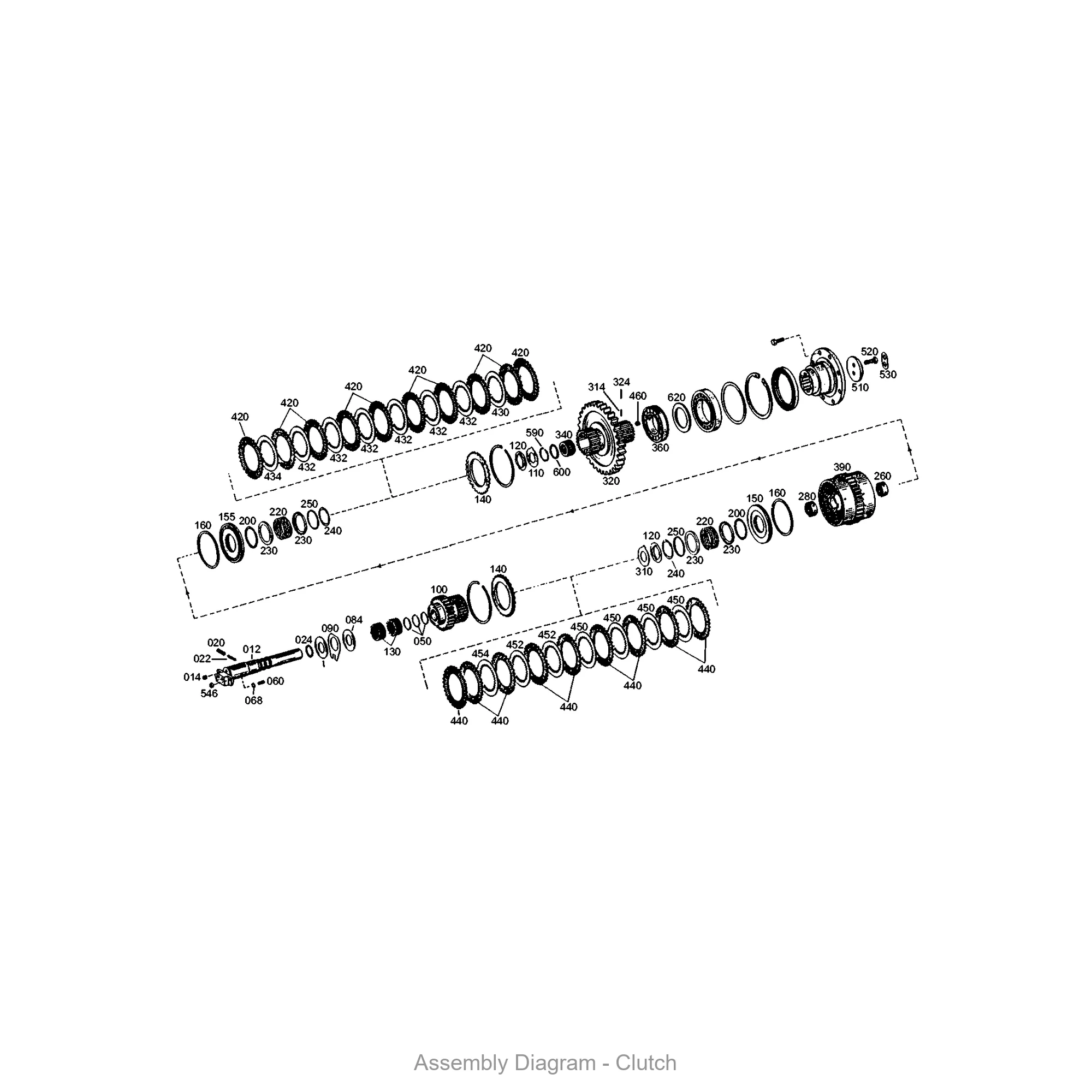

The ZF 0630.000.219 SHIM RING is a precision-engineered adjustment component designed for the WG181 and WG65 transmission series. This OEM genuine part, identified by SKU 0630.000.219, sits within the planetary gearset assembly to establish critical axial clearances. By controlling end-play between the TRANSMISSION HOUSING and the rotating clutch packs, this shim ring ensures proper load distribution and prevents metal-to-metal contact during gear shifts. Its exact thickness compensates for manufacturing tolerances, making it essential for maintaining factory-specified preload in heavy-duty ZF transmissions.

Symptoms of Failure

• Delayed or harsh gear engagement: A worn or collapsed shim ring alters clutch pack clearance, causing noticeable lag when shifting from Neutral to Drive or Reverse.
• Low-frequency transmission whine: Insufficient axial preload allows planetary gears to vibrate, producing a distinct humming noise under load that worsens with temperature.
• Intermittent oil pressure loss: Excessive end-play can misalign oil feed passages, triggering sporadic low-pressure warnings on the dash display.
• Metallic debris in transmission fluid: As the shim ring degrades, microscopic steel particles contaminate the oil, often visible during routine drain intervals.

Technical Specifications

Compatibility

This shim ring is specifically engineered for ZF WG181 and WG65 series transmissions, commonly found in municipal buses, fire trucks, and medium-duty construction vehicles. It also fits the WG180, WG200, and WG210 variants when used in conjunction with the correct OUTPUT shaft assembly. For installations requiring a new OUTPUT FLANGE, verify axial clearance using the factory service manual. Always replace the HEXAGON SCREW securing the bearing retainer to prevent thread fatigue.
