ZF 0630.004.242 SHIM RING
ZF Part Number: 0630.004.242 (also written as 0630004242 / 0630.004.242 / 0630 004 242)
OEM Cross Reference / Interchange Numbers
ZF 0630.004.242 (SHIM RING) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 山东临工 | 4110000042051 | OEM Cross Ref |
| 柳工 | SP107492 | OEM Cross Ref |
| 柳工 | SP107492RE | OEM Cross Ref |
This ZF part (0630.004.242) directly replaces the following OEM numbers: 山东临工: 4110000042051; 柳工: SP107492, SP107492RE. All listed cross-reference numbers are confirmed compatible with ZF 0630.004.242.
Compatible ZF Transmission Models
This shim ring is used in the following ZF transmission models:
- ZF 4 WG 258
- ZF 4 WG 260
- ZF 4 WG 260(1)
- ZF 4 WG 308
- ZF 6 WG 258
- ZF 6 WG 260
- ZF 6 WG 310
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Inductive Sensor | 060 | 4 |
| Inductive Sensor | 070 | 2 |
| Power Take Off | 470/070 | 1 |
Related Parts in Same Assembly
- 0501.309.447 — BLOW-OFF RING (Qty: 1)
- 4108.201.177 — HOUSING (Qty: 1)
- 6053.308.348 — CONTROL COVER (Qty: 1)
- 0636.010.188 — HEXAGON SCREW (Qty: 4)
- 0735.410.173 — ROLLER BEARING (Qty: 1)
- 4108.201.200 — BEARING HOUSING (Qty: 1)
- 4108.338.015 — RETAINING CLIP (Qty: 2)
- 4108.338.014 — RETAINING CLIP (Qty: 1)
Frequently Asked Questions
What is ZF part number 0630.004.242?
ZF 0630.004.242 is an OEM shim ring produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 258, 4 WG 260, 4 WG 260(1), 4 WG 308, 6 WG 258. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0630.004.242?
This shim ring is found in 7 ZF transmission variants, including: 4 WG 258, 4 WG 260, 4 WG 260(1), 4 WG 308, 6 WG 258, 6 WG 260, 6 WG 310. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0630.004.242 installed in the transmission?
This shim ring is located in the inductive sensor, power take off area of the transmission. It appears in 20 different assembly configurations. In the service manual, look for position number 060 in the Inductive Sensor section.
How do I look up ZF part 0630.004.242?
This part can be found under several formats: 0630004242 / 0630.004.242 / 0630 004 242. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0630.004.242).
Where can I buy ZF 0630.004.242?
You can purchase genuine ZF 0630.004.242 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

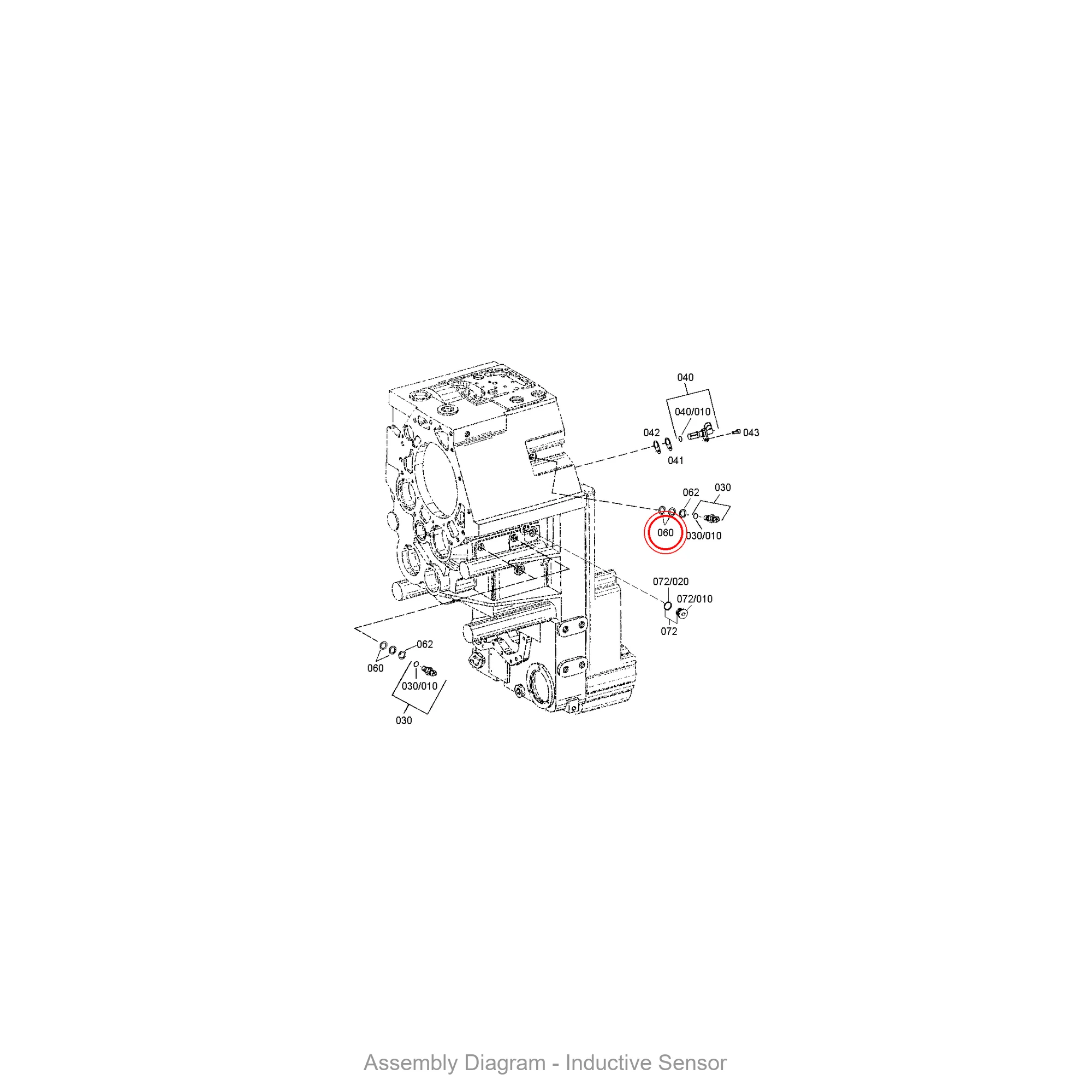

Exploded View / Assembly Diagram
The diagram below shows where ZF 0630.004.242 is located within the transmission assembly.
