ZF 0630.302.076 SPRING WASHER
ZF Part Number: 0630.302.076 (also written as 0630302076 / 0630.302.076 / 0630 302 076)
Compatible ZF Transmission Models
This spring washer is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 150
- ZF 4 WG 180
- ZF 4 WG 180(500)
- ZF 4 WG 200(500)
- ZF 4 WG 200(555/3)
- ZF 4 WG 200(555/5)
- ZF 4 WG 65
- ZF 6 WG 150
- ZF 6 WG 180(500)
- ZF 6 WG 180(555)
- ZF 6 WG 200(500)
- ZF 6 WG 200(555)
- ZF 6 WG 200(555/3)
- ZF 6 WG 201
…and 1 additional models. Contact us to confirm fitment for your specific unit.
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Shift System | 400 | 4 |
| Shift System | 410 | 4 |
| Shift System | 450 | 4 |
| Shift System | 59.410 | 4 |
| Shift System | 59.450 | 4 |
Related Parts in Same Assembly
- 4616.101.065 — TRANSMISSION HOUSING (Qty: 1)
- 4616.101.406 — TRANSMISSION HOUSING (Qty: 1)
- 4616.102.038 — INPUT (Qty: 1)
- 4616.102.419 — INPUT (Qty: 1)
- 4616.103.071 — OUTPUT (Qty: 1)
- 4616.105.014 — OUTPUT (Qty: 1)
- 4616.106.020 — SHIFT SYSTEM (Qty: 1)
- 4616.159.031 — SHIFT SYSTEM (Qty: 1)
Frequently Asked Questions
What is ZF part number 0630.302.076?
ZF 0630.302.076 is an OEM spring washer produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 150, 4 WG 180, 4 WG 180(500), 4 WG 200(500). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0630.302.076?
This spring washer is found in 16 ZF transmission variants, including: 3 WG 200, 4 WG 150, 4 WG 180, 4 WG 180(500), 4 WG 200(500), 4 WG 200(555/3), 4 WG 200(555/5), 4 WG 65, 6 WG 150, 6 WG 180(500). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0630.302.076 installed in the transmission?
This spring washer is located in the shift system area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 400 in the Shift System section.
How do I look up ZF part 0630.302.076?
This part can be found under several formats: 0630302076 / 0630.302.076 / 0630 302 076. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0630.302.076).
Where can I buy ZF 0630.302.076?
You can purchase genuine ZF 0630.302.076 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

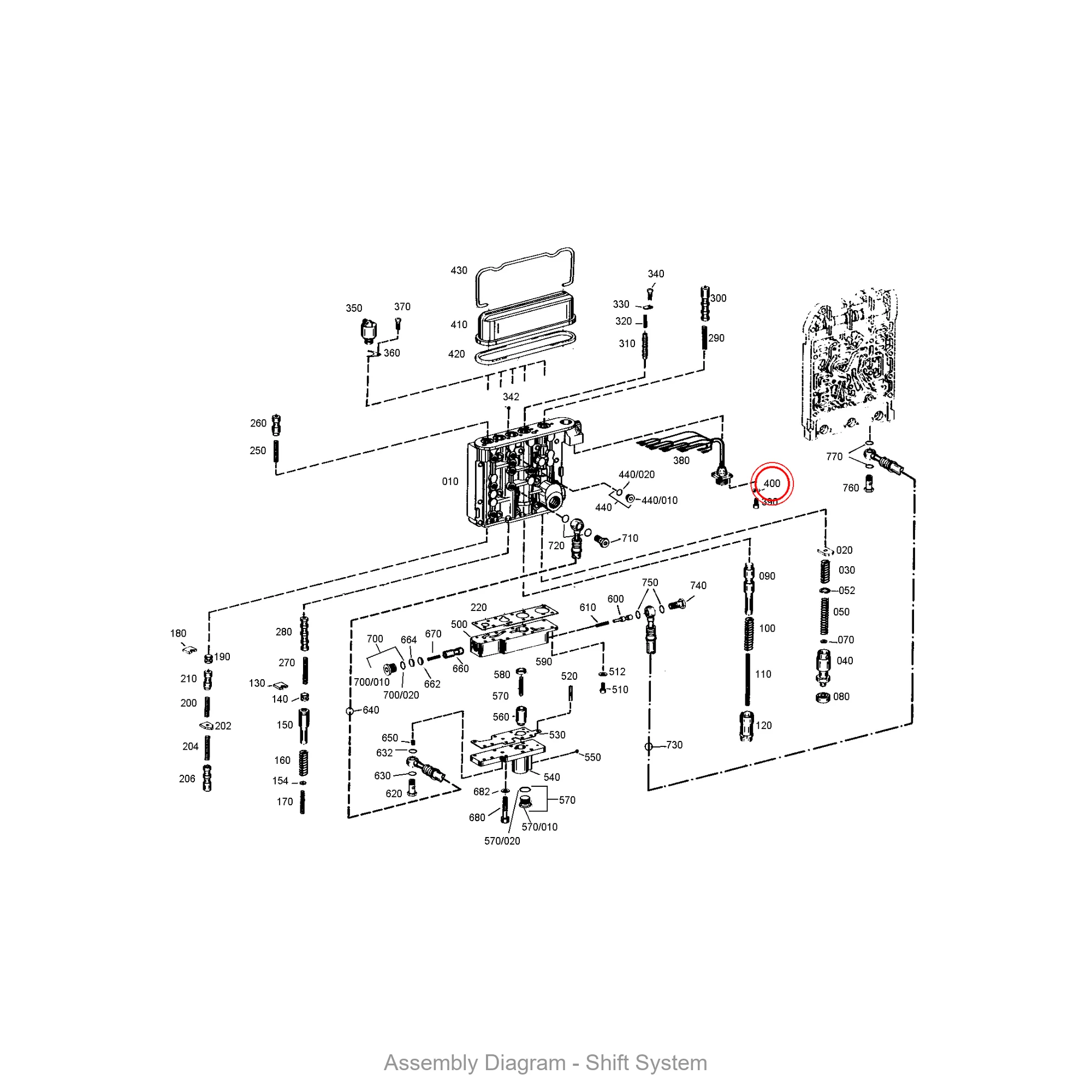

Exploded View / Assembly Diagram
The diagram below shows where ZF 0630.302.076 is located within the transmission assembly.
