ZF 0630.361.028 SEALING CAP
ZF Part Number: 0630.361.028 (also written as 0630361028 / 0630.361.028 / 0630 361 028)
Compatible ZF Transmission Models
This sealing cap is used in the following ZF transmission models:
- ZF 3 WG 100(400)
- ZF 3 WG 100(500)
- ZF 4 WG 100(400)
- ZF 4 WG 100(500)
- ZF 6 WG 100(500)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Transmission Housing | 080 | 5 |
Related Parts in Same Assembly
- 0501.207.081 — BRAKE (Qty: 1)
- 0501.208.651 — PUMP (Qty: 1)
- 4168.028.124 — CONVERTER (Qty: 1)
- 4475.280.219 — SCREW-IN SLEEVE (Qty: 6)
- 4644.306.560 — VALVE BLOCK (Qty: 1)
- 4651.301.029 — HOUSING (Qty: 1)
- 4651.302.001 — TURBINE SHAFT (Qty: 1)
- 4651.303.010 — OUTPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0630.361.028?
ZF 0630.361.028 is an OEM sealing cap produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 100(400), 3 WG 100(500), 4 WG 100(400), 4 WG 100(500), 6 WG 100(500). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0630.361.028?
This sealing cap is found in 5 ZF transmission variants, including: 3 WG 100(400), 3 WG 100(500), 4 WG 100(400), 4 WG 100(500), 6 WG 100(500). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0630.361.028 installed in the transmission?
This sealing cap is located in the transmission housing area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 080 in the Transmission Housing section.
How do I look up ZF part 0630.361.028?
This part can be found under several formats: 0630361028 / 0630.361.028 / 0630 361 028. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0630.361.028).
When should I replace ZF 0630.361.028?
Replace this seal during every transmission overhaul or if you notice oil leakage at the seal location. Seals are wear items and should not be reused after removal.
Can I reuse ZF 0630.361.028 after disassembly?
No. ZF recommends always installing new seals during reassembly. Reusing seals may result in leaks and premature failure.
Where can I buy ZF 0630.361.028?
You can purchase genuine ZF 0630.361.028 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

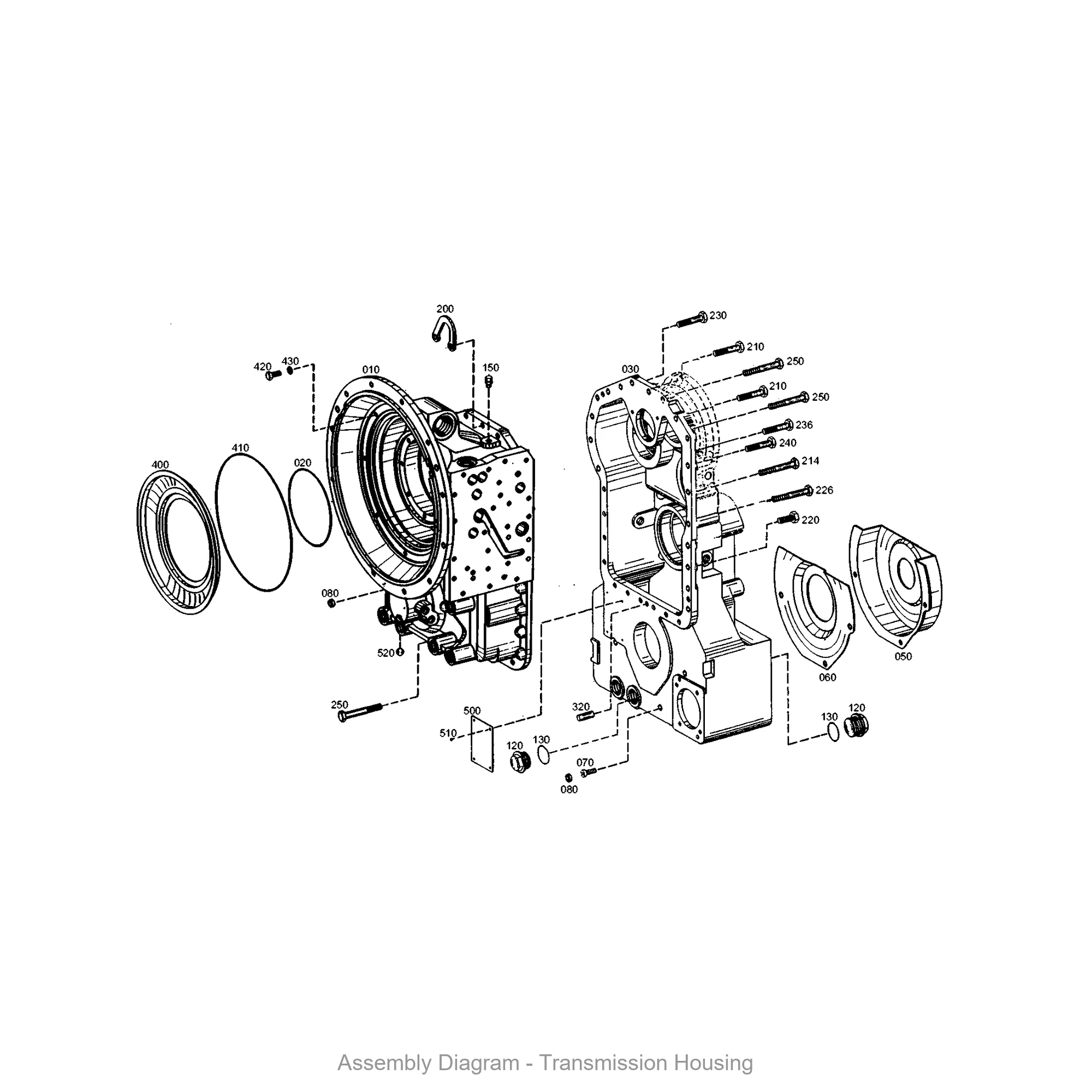

Exploded View / Assembly Diagram
The diagram below shows where ZF 0630.361.028 is located within the transmission assembly.
