Overview

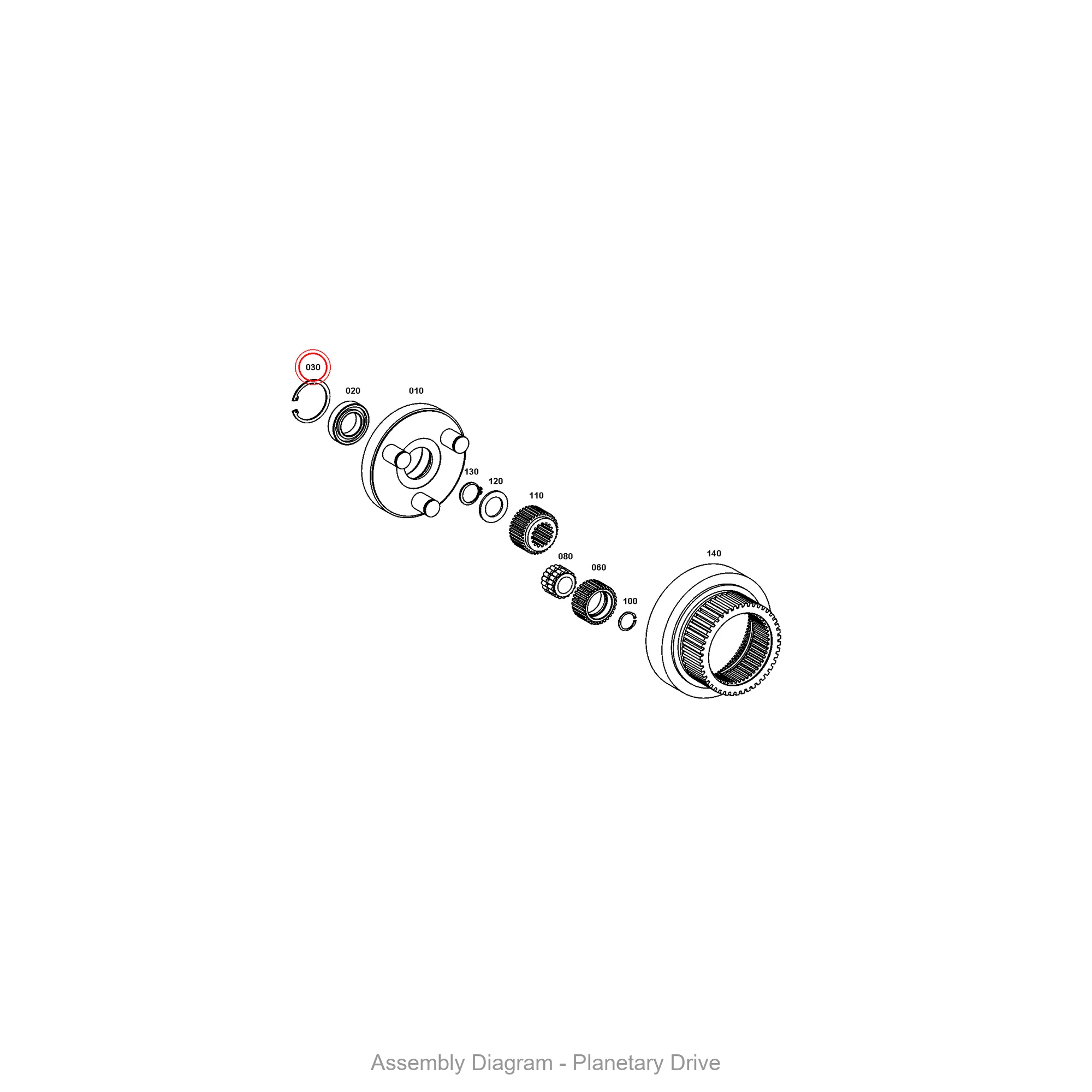

The ZF 0630.502.032 RETAINING RING is a precision-engineered axial locking component specifically designed for the WG 181 series transmission. This OEM genuine part secures critical gear and shaft assemblies within the planetary gearset, preventing unwanted axial movement under high-torque conditions. The SKU 0630.502.032 is installed directly against the differential housing to maintain proper preload on adjacent bearings. When paired with a 5838109007: DIFFERENTIAL, this retaining ring ensures the entire rotating assembly remains locked in its correct position during operation.
Symptoms of Failure
- Axial play in the output shaft – A worn or fatigued retaining ring allows the shaft to shift forward and backward, causing noticeable clunking during acceleration or deceleration.
- Premature bearing wear – When the ring loses its grip, the 0750117075: TAPER ROLLER BEARING experiences uneven loading, leading to rumble noises and eventual failure.
- Intermittent gear engagement – A loose retaining ring causes the differential assembly to drift, resulting in delayed or harsh shifting between ranges.
- Metal debris in transmission fluid – As the ring fractures, small fragments contaminate the oil, often visible during routine drain intervals.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 0630.502.032 |
| Material | Spring steel (DIN 17222), phosphate-coated |
| Inner Diameter | 130.0 mm |
| Outer Diameter | 145.5 mm |
| Thickness | 3.5 mm |
| Weight | 0.045 kg |
| OEM Reference | ZF 0630.502.032 |
| Hardness | HRC 44-48 |
Compatibility
This retaining ring is a direct fit for the ZF WG 181 series transmission. It is also compatible with the WG 180 and WG 200 series models that share the same planetary carrier and differential housing architecture. The ring works in conjunction with the 2095209019: DIFFERENTIAL assembly and is secured by the 0631329086: SPRING PIN to prevent rotation. Always verify your transmission serial number before ordering.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 5838109007 | DIFFERENTIAL | Distributes torque to axle shafts |
| 0750117075 | TAPER ROLLER BEARING | Supports radial and axial loads |
| 2095209019 | DIFFERENTIAL | Secondary differential for planetary gearset |
| 0631329086 | SPRING PIN | Locks retaining ring in position |
| 5838300817 | THRUST WASHER | Reduces axial friction |
| 5838300682 | DIFFERENTIAL AXLE | Carries differential side gears |
| 5838300811 | THRUST WASHER | Secondary axial wear surface |
| 5841302064 | THRUST WASHER | High-load axial spacer |
| 5838300137 | OUTER CLUTCH DISK | Steel friction plate for clutch pack |
| 5838300138 | INNER CLUTCH DISK | Friction-lined plate for clutch engagement |
Frequently Asked Questions
Q: Can I reuse the 0630.502.032 retaining ring after disassembly?
A: No. ZF recommends replacing this retaining ring with a new OEM part every time the differential or planetary carrier is removed. The ring loses its spring tension after installation and may not provide adequate locking force if reused.
Q: Does this retaining ring fit the ZF WG 200 transmission?
A: Yes, the 0630.502.032 is shared across WG 180, WG 181, and WG 200 series transmissions that use the same 130mm inner diameter differential housing. Always cross-reference your transmission tag for confirmation.
Q: What tools are needed to install this retaining ring?
A: You will need a retaining ring pliers set with 90-degree tips and a soft-faced mallet. Ensure the ring is fully seated in its groove before installing the 0631329086: SPRING PIN.
