ZF 0630.502.036 RETAINING RING
ZF Part Number: 0630.502.036 (also written as 0630502036 / 0630.502.036 / 0630 502 036)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Coupling | 070 | 1 |
Application / Compatibility
| Assembly | Section | Model |
|---|---|---|
| 4143.000.124 | COUPLING | — |
| 4143.000.125 | COUPLING | — |
| 4143.000.126 | COUPLING | — |
| 4143.000.130 | COUPLING | — |
| 4143.000.132 | COUPLING | — |
| 4143.000.137 | COUPLING | — |
| 4143.000.141 | COUPLING | — |
| 4143.000.143 | COUPLING | — |
| 4143.000.152 | COUPLING | — |
| 4143.000.154 | COUPLING | — |
Related Parts in Same Assembly
- 4143.101.009 — HOUSING (Qty: 1)
- 4143.101.410 — HOUSING (Qty: 1)
- 4143.102.002 — INPUT (Qty: 1)
- 4143.102.405 — INPUT (Qty: 1)
- 4143.103.005 — OUTPUT (Qty: 1)
- 4143.103.401 — OUTPUT (Qty: 1)
- 4143.115.003 — PLANETARY DRIVE (Qty: 1)
- 4143.121.007 — OIL PIPE (Qty: 1)
Frequently Asked Questions
What is ZF part number 0630.502.036?
ZF 0630.502.036 is an OEM retaining ring produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as various ZF transmission models. This is a genuine ZF component, not an aftermarket reproduction.
Where is ZF 0630.502.036 installed in the transmission?
This retaining ring is located in the coupling area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 070 in the Coupling section.
How do I look up ZF part 0630.502.036?
This part can be found under several formats: 0630502036 / 0630.502.036 / 0630 502 036. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0630.502.036).
Where can I buy ZF 0630.502.036?
You can purchase genuine ZF 0630.502.036 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

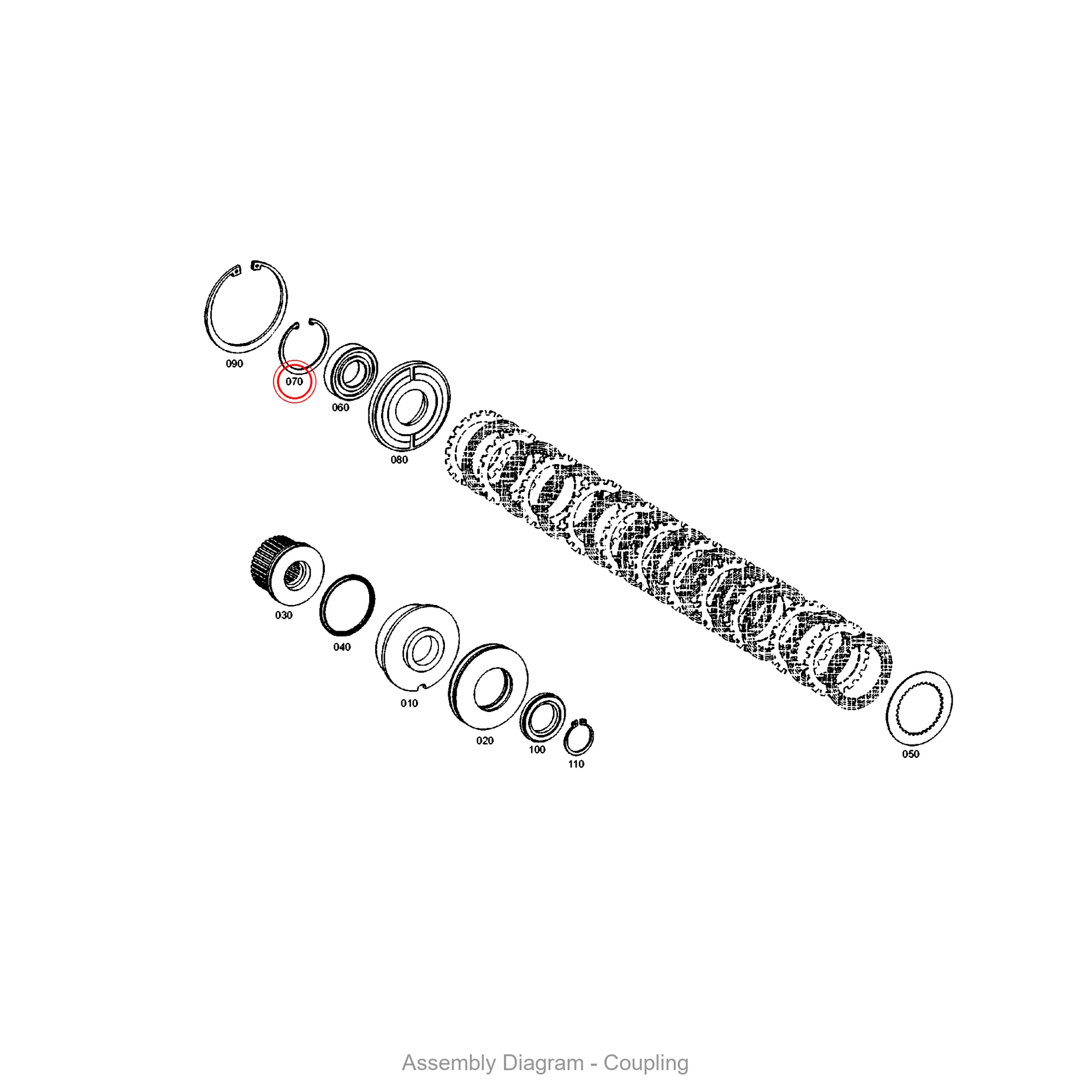

Exploded View / Assembly Diagram
The diagram below shows where ZF 0630.502.036 is located within the transmission assembly.
