ZF 0630.513.101 SNAP RING
ZF Part Number: 0630.513.101 (also written as 0630513101 / 0630.513.101 / 0630 513 101)
Compatible ZF Transmission Models
This snap ring is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 200(555/5)
- ZF 6 WG 150
- ZF 6 WG 180(500)
- ZF 6 WG 180(555)
- ZF 6 WG 200
- ZF 6 WG 200(500)
- ZF 6 WG 200(555)
- ZF 6 WG 200(555/4)
- ZF 6 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Converter | 310 | 1 |
| Converter | 32.310 | 1 |
Related Parts in Same Assembly
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 4166.232.027 — CIRCUIT COVER (Qty: 1)
- 4642.221.149 — SUCTION TUBE (Qty: 1)
- 4642.231.090 — FILLER TUBE (Qty: 1)
- 4642.301.207 — TRANSMISSION HOUSING (Qty: 1)
- 4642.302.118 — INPUT SHAFT (Qty: 1)
- 4642.303.095 — OUTPUT SHAFT (Qty: 1)
- 4642.305.011 — HOUSING (Qty: 1)
Frequently Asked Questions
What is ZF part number 0630.513.101?
ZF 0630.513.101 is an OEM snap ring produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 200(555/5), 6 WG 150, 6 WG 180(500), 6 WG 180(555). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0630.513.101?
This snap ring is found in 10 ZF transmission variants, including: 3 WG 200, 4 WG 200(555/5), 6 WG 150, 6 WG 180(500), 6 WG 180(555), 6 WG 200, 6 WG 200(500), 6 WG 200(555), 6 WG 200(555/4), 6 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0630.513.101 installed in the transmission?
This snap ring is located in the converter area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 310 in the Converter section.
How do I look up ZF part 0630.513.101?
This part can be found under several formats: 0630513101 / 0630.513.101 / 0630 513 101. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0630.513.101).
Where can I buy ZF 0630.513.101?
You can purchase genuine ZF 0630.513.101 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.
Exploded View / Assembly Diagram

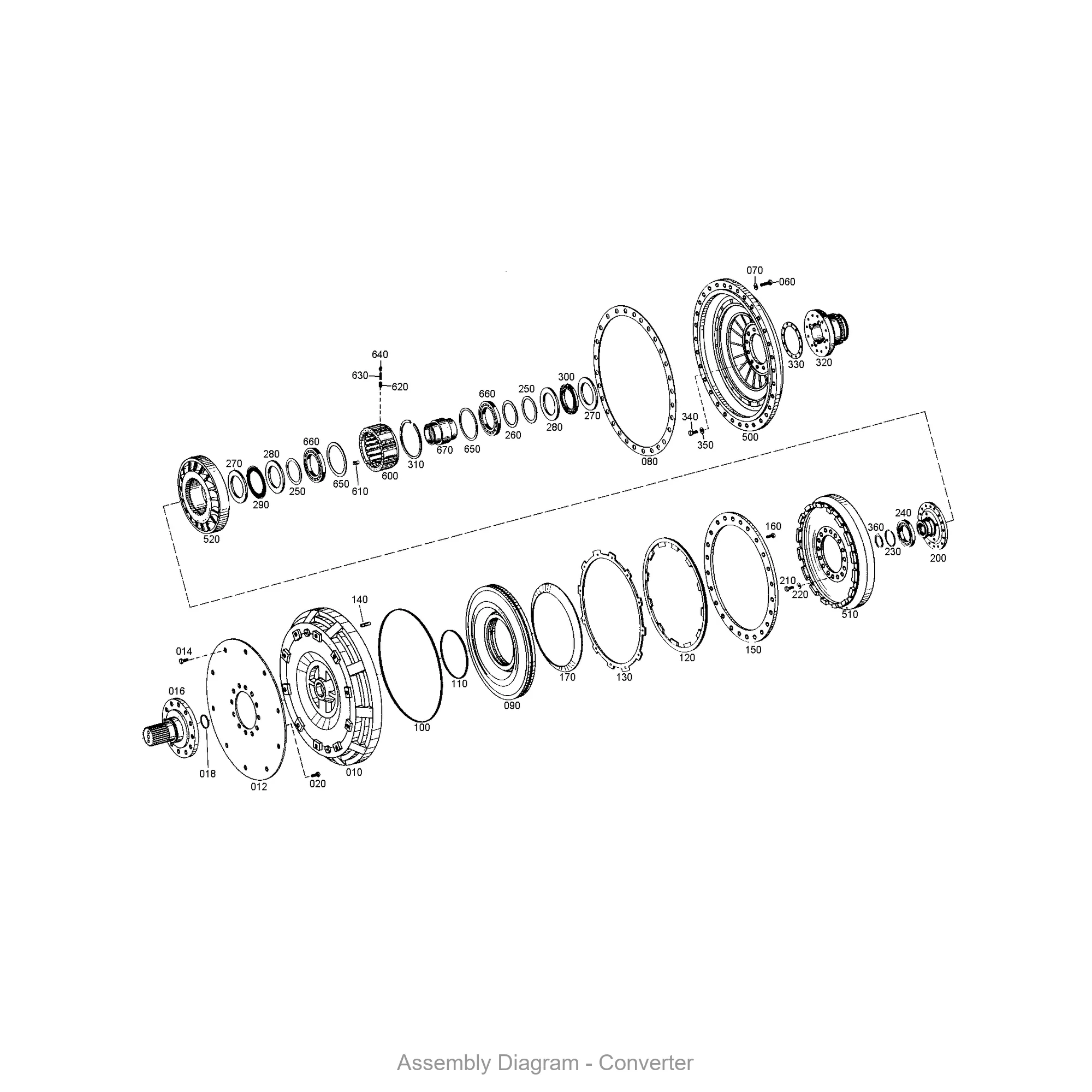

The diagram below shows where ZF 0630.513.101 is located within the transmission assembly.
