ZF 0630.531.043 RETAINING RING for WG150 | OEM Genuine Part

Overview

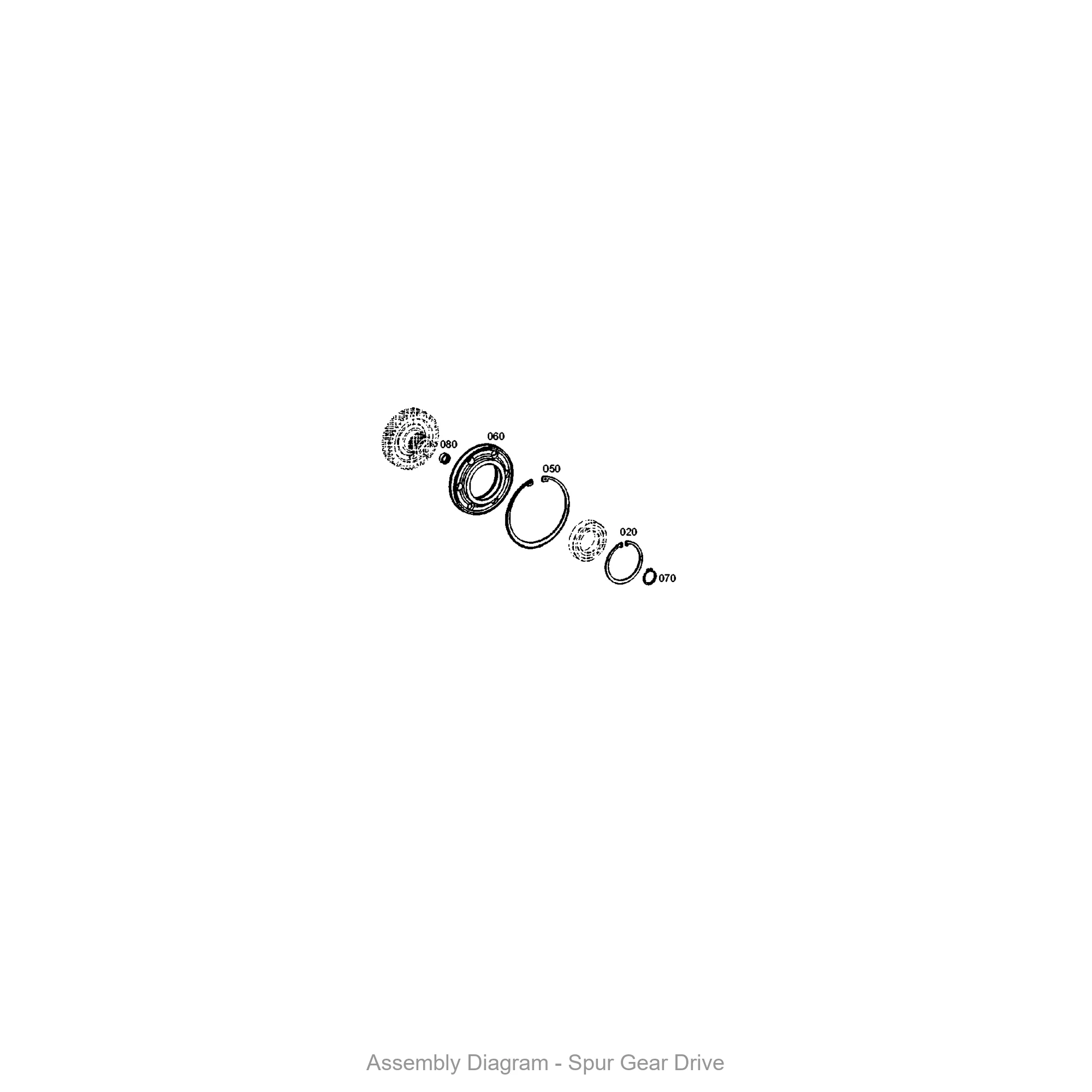

The ZF 0630.531.043 RETAINING RING is a precision-engineered circlip designed to secure internal components within the planetary gearset of the WG 150 Series transmission. This OEM genuine part (SKU: 0630.531.043) functions as a critical axial lock, preventing the 5838109007: DIFFERENTIAL and adjacent shafts from shifting under load. Without this ring, the entire gear train loses its positional integrity, leading to catastrophic misalignment. It is installed directly inside the drum housing, where it seats into a machined groove to hold the 0750117075: TAPER ROLLER BEARING in place during high-torque operations.

Symptoms of Failure

When the 0630.531.043 retaining ring fatigues or breaks, operators will notice distinct mechanical distress. Look for these specific failure symptoms:

• Axial play in the differential assembly – A worn ring allows the 2095209019: DIFFERENTIAL to slide laterally, producing a clunking noise during gear engagement.
• Premature bearing wear – Loss of retention causes the taper roller bearing to wobble, generating metallic debris in the transmission fluid.
• Intermittent gear slipping – The ring’s failure permits the spring pin (see 0631329086: SPRING PIN) to shear, resulting in sudden power loss under load.
• Oil contamination from metal shavings – As the ring fragments, steel particles circulate through the hydraulic system, clogging valves and filters.

Technical Specifications

Compatibility

This retaining ring is specifically engineered for the WG 150 Series transmission family. It is also compatible with the following ZF models that share the same planetary carrier architecture: WG 180, WG 200, and WG 250. Always verify the groove diameter in your drum housing before installation. The ring works in conjunction with the 5838300817: THRUST WASHER to distribute axial loads evenly across the assembly.
