ZF 0630.531.055 RETAINING RING for WG200 | OEM Genuine Part

Overview

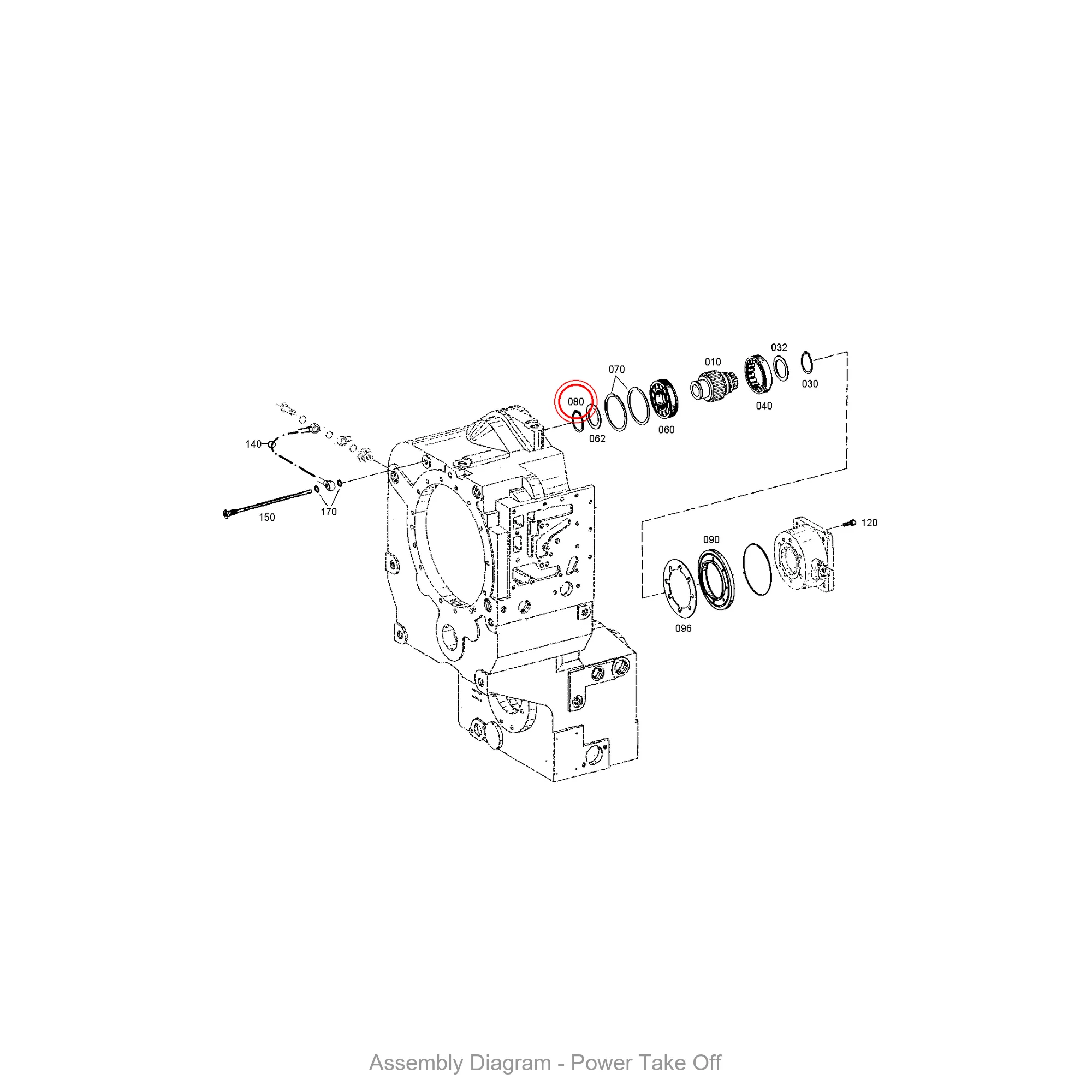

The ZF 0630.531.055 RETAINING RING is a critical OEM genuine locking component engineered for the WG200 series transmissions. This precision-machined ring secures the axial position of internal assemblies, preventing unwanted movement of shafts and gear clusters under high torque loads. Installed within the planetary gear set or output shaft area, the SKU 0630.531.055 ensures that adjacent components such as the 4644105424: DISCONNECTION mechanism remain properly seated. Without this retaining ring, the entire drivetrain alignment can shift, leading to accelerated wear on the 4644303538: OUTPUT FLANGE and surrounding hardware.

Symptoms of Failure

• Axial play or end-float in the output shaft: When the retaining ring fatigues or cracks, the shaft can move longitudinally, causing irregular gear engagement and vibration during acceleration.
• Oil leaks near the transmission housing: A dislodged ring can damage the seal surface of the 4644101224: TRANSMISSION HOUSING, leading to fluid seepage and pressure loss.
• Intermittent gear slipping under load: Loss of axial retention allows planetary gears to misalign, resulting in momentary power loss or harsh shifting in WG200 series units.
• Metallic debris in the oil pan: A broken retaining ring fragments can circulate through the system, contaminating the valve body and damaging the 0636021036: HEXAGON SCREW fasteners that secure the clutch packs.

Technical Specifications

Compatibility

This retaining ring is primarily designed for the ZF WG200 series transmissions, including models such as WG180, WG200, and WG210. It is also compatible with certain ZF Ecolife and Ecomat variants that share the same output shaft geometry. Always verify the snap ring groove dimensions in your specific 4644101224: TRANSMISSION HOUSING before installation. For bus and coach applications using the WG200, this part is a direct OEM replacement.
