ZF 0630.532.183 INDENTED RING for WG191/WG211 | OEM Genuine Part

Overview

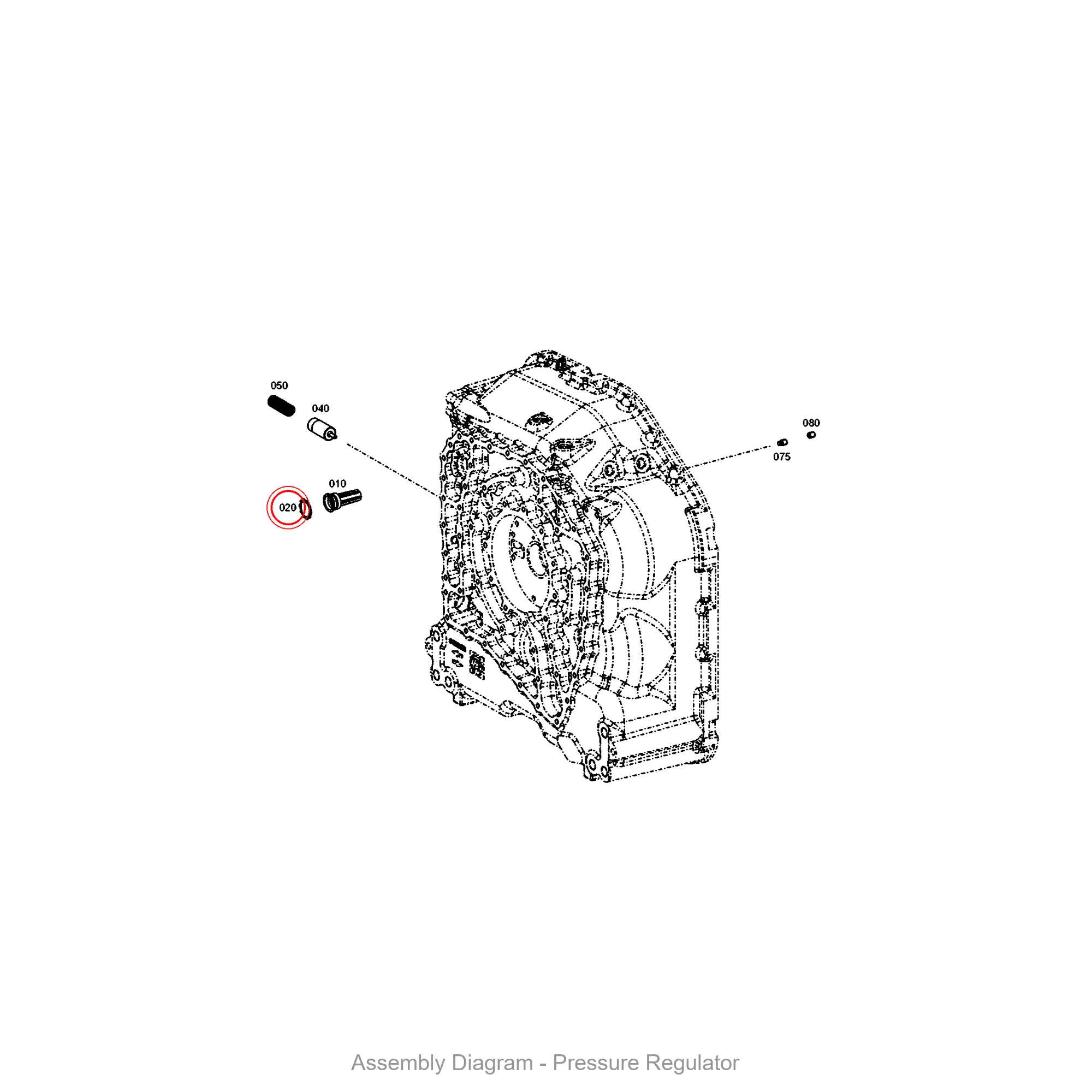

The ZF 0630.532.183 INDENTED RING is a precision-engineered retaining component designed for the WG191 and WG211 series transmissions. This OEM genuine part functions as a critical locking element, securing internal assemblies such as piston packs and valve bodies within the transmission housing. By maintaining axial positioning under high hydraulic pressure and thermal expansion, the indented ring prevents unwanted dislodgement of rotating and stationary components. The SKU 0630.532.183 is manufactured to exact ZF tolerances, ensuring a snug fit that eliminates micro-movement which can lead to premature wear on adjacent parts like the 4657120005: PRESSURE REGULATOR and the 0501211384: VALVE.

Symptoms of Failure

• Hydraulic oil seepage at the housing joint: A worn or deformed indented ring cannot maintain a consistent seal, leading to fluid migration past the 4657101049: TRANSMISSION HOUSING interface. This often appears as slow drips after extended operation.
• Intermittent gear engagement hesitation: When the ring fails to secure the 4656306145: PISTON assembly, axial play develops, causing delayed clutch pack application and a “hunting” sensation during shifts.
• Metallic rattling from the bell housing: A loose indented ring allows adjacent components to vibrate against each other. This noise is often misdiagnosed as bearing failure but originates from the ring’s inability to hold the 0732042767: COMPRESSION SPRING in its proper seat.
• Erratic line pressure fluctuations: Because the ring stabilizes the valve body stack, failure can cause pressure spikes that confuse the transmission control module, triggering fault codes for solenoid performance.

Technical Specifications

Compatibility

This indented ring is specifically engineered for ZF WG191 and WG211 series transmissions, commonly found in medium-duty trucks and construction equipment. It also fits select variants of the WG180 and WG200 models where the internal snap-ring groove dimensions match. Always verify the groove width in your 4657301130: HOUS.FRONT SECT and 4657301131: HOUSING REAR PART before installation. The ring is not compatible with WG120 or WG150 series due to differing bore diameters.

Related Components

Frequently Asked Questions

Q: Can I reuse the old indented ring if it looks intact?
A: No. ZF specifies that the 0630.532.183 ring is a one-time-use component. Even if it appears undamaged, the spring steel loses its clamping force after the first installation cycle, which can lead to the failure symptoms described above.

Q: Does this ring require any special tooling for installation?
A: Yes. You will need a ZF-specific snap-ring pliers with a 90-degree tip to compress the ring evenly. Using standard pliers can distort the indented profile, causing it to seat improperly in the groove of the 4657301130: HOUS.FRONT SECT.

Q: How does this part interact with the pressure regulator?
A: The ring holds the 4657120005: PRESSURE REGULATOR in its bore by preventing axial migration. If the ring fails, the regulator can shift out of alignment, causing erratic line pressure and eventual clutch slippage.
