ZF 0631.329.314 SPRING PIN
ZF Part Number: 0631.329.314 (also written as 0631329314 / 0631.329.314 / 0631 329 314)
Compatible ZF Transmission Models
This spring pin is used in the following ZF transmission models:
- ZF 4 WG 110
- ZF 4 WG 110(500)
- ZF 6 WG 110(500)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Coupling | 013 | 2 |
| Coupling | 014 | 2 |
| Coupling | 015 | 1 |
| Coupling | 016 | 1 |
Related Parts in Same Assembly
- 0501.208.651 — PUMP (Qty: 1)
- 0501.211.384 — VALVE (Qty: 1)
- 4168.030.126 — CONVERTER (Qty: 1)
- 4475.280.219 — SCREW-IN SLEEVE (Qty: 8)
- 4651.301.032 — HOUSING (Qty: 1)
- 4651.302.001 — TURBINE SHAFT (Qty: 1)
- 4651.303.010 — OUTPUT SHAFT (Qty: 1)
- 4651.306.156 — GASKET (Qty: 1)
Frequently Asked Questions
What is ZF part number 0631.329.314?
ZF 0631.329.314 is an OEM spring pin produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 110, 4 WG 110(500), 6 WG 110(500). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0631.329.314?
This spring pin is found in 3 ZF transmission variants, including: 4 WG 110, 4 WG 110(500), 6 WG 110(500). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0631.329.314 installed in the transmission?
This spring pin is located in the coupling area of the transmission. It appears in 15 different assembly configurations. In the service manual, look for position number 013 in the Coupling section.
How do I look up ZF part 0631.329.314?
This part can be found under several formats: 0631329314 / 0631.329.314 / 0631 329 314. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0631.329.314).
Where can I buy ZF 0631.329.314?
You can purchase genuine ZF 0631.329.314 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

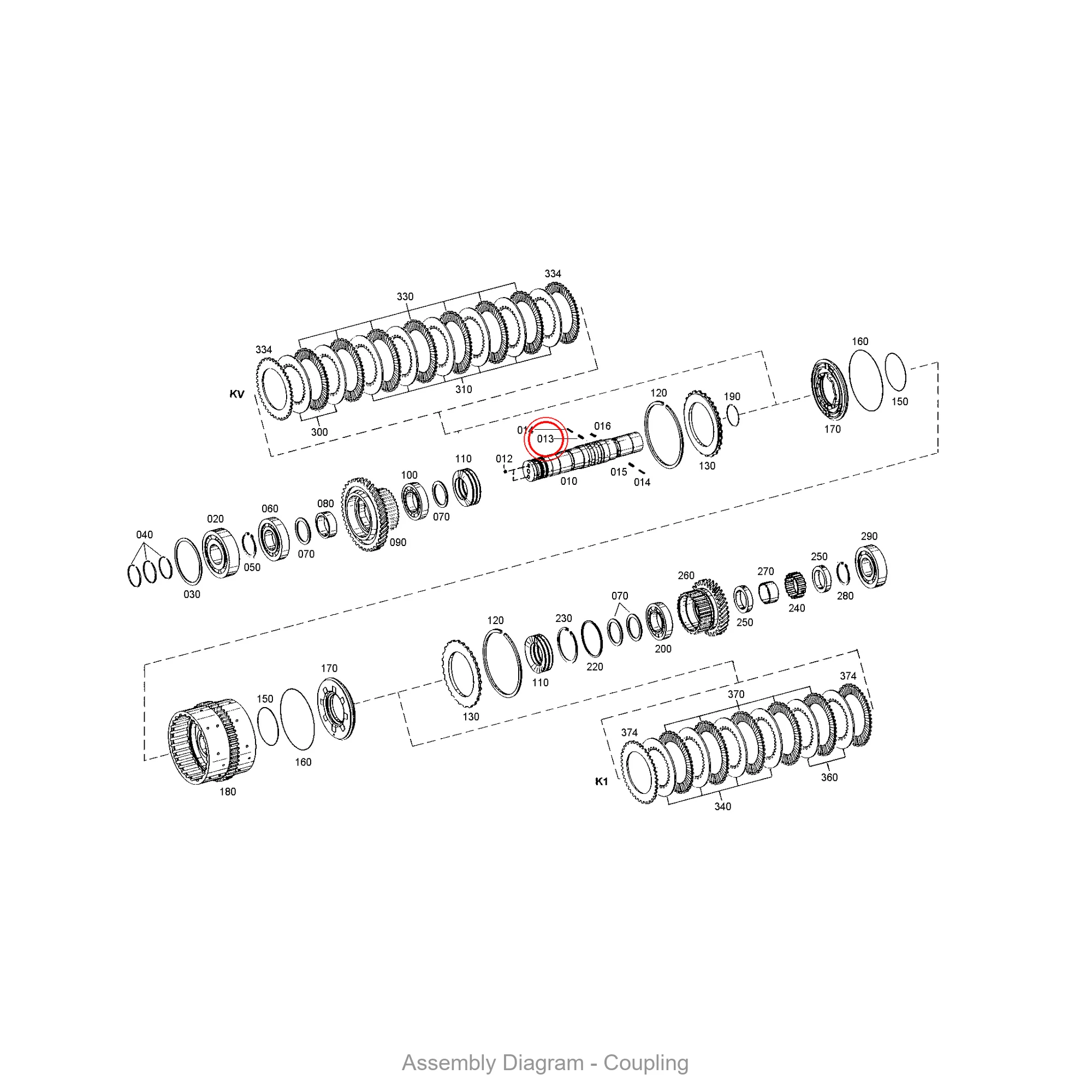

Exploded View / Assembly Diagram
The diagram below shows where ZF 0631.329.314 is located within the transmission assembly.
