ZF 0631.610.033 SET SCREW
ZF Part Number: 0631.610.033 (also written as 0631610033 / 0631.610.033 / 0631 610 033)
Compatible ZF Transmission Models
This set screw is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 3 WG 260
- ZF 3 WG 310
- ZF 4 WG 150
- ZF 4 WG 180
- ZF 4 WG 180(500)
- ZF 4 WG 200(500)
- ZF 4 WG 200(555/3)
- ZF 4 WG 200(555/5)
- ZF 4 WG 260(1)
- ZF 4 WG 260(2)
- ZF 4 WG 308
- ZF 4 WG 310
- ZF 4 WG 65
- ZF 6 WG 200(555/3)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Converter | 022 | 1 |
| Power Take Off | 120 | 1 |
| Shift System | 050 | 1 |
| Shift System | 360 | 1 |
| Transmission Housing | 572 | 1 |
Related Parts in Same Assembly
- 4616.101.094 — TRANSMISSION HOUSING (Qty: 1)
- 4616.101.416 — TRANSMISSION HOUSING (Qty: 1)
- 4616.102.049 — INPUT (Qty: 1)
- 4616.102.429 — INPUT (Qty: 1)
- 4616.103.047 — OUTPUT (Qty: 1)
- 4616.103.424 — OUTPUT (Qty: 1)
- 4616.104.004 — DIFFERENTIAL (Qty: 1)
- 4616.105.039 — OUTPUT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0631.610.033?
ZF 0631.610.033 is an OEM set screw produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 3 WG 260, 3 WG 310, 4 WG 150, 4 WG 180. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0631.610.033?
This set screw is found in 15 ZF transmission variants, including: 3 WG 200, 3 WG 260, 3 WG 310, 4 WG 150, 4 WG 180, 4 WG 180(500), 4 WG 200(500), 4 WG 200(555/3), 4 WG 200(555/5), 4 WG 260(1). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0631.610.033 installed in the transmission?
This set screw is located in the converter, power take off, shift system area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 022 in the Converter section.
How do I look up ZF part 0631.610.033?
This part can be found under several formats: 0631610033 / 0631.610.033 / 0631 610 033. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0631.610.033).
Where can I buy ZF 0631.610.033?
You can purchase genuine ZF 0631.610.033 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

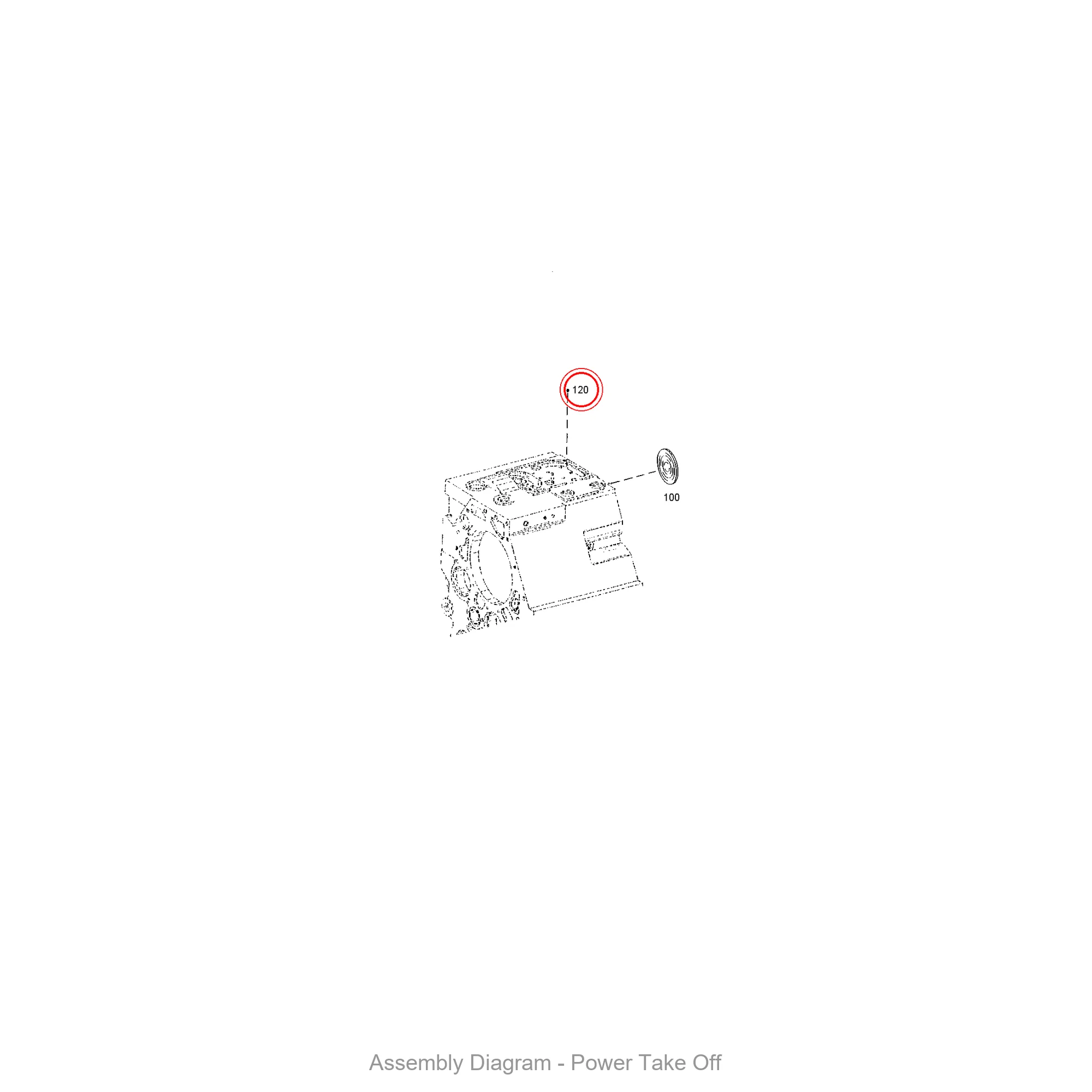

Exploded View / Assembly Diagram
The diagram below shows where ZF 0631.610.033 is located within the transmission assembly.
