ZF 0631.610.114 SET SCREW
ZF Part Number: 0631.610.114 (also written as 0631610114 / 0631.610.114 / 0631 610 114)
Compatible ZF Transmission Models
This set screw is used in the following ZF transmission models:
- ZF 3 WG 260
- ZF 4 WG 261(4)
- ZF 5 WG 260
- ZF 6 WG 260
- ZF 6 WG 260(4)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Control Unit | 160 | 1 |
| Control Unit | 940 | 1 |
| Power Take Off | 210 | 7 |
Related Parts in Same Assembly
- 0501.209.719 — INDUCTIVE SENSOR (Qty: 1)
- 0501.214.082 — SUCTION FILTER (Qty: 1)
- 0501.214.611 — GEAR PUMP (Qty: 1)
- 0636.015.124 — HEXAGON SCREW (Qty: 8)
- 4168.037.069 — CONVERTER (Qty: 1)
- 4475.280.219 — SCREW-IN SLEEVE (Qty: 9)
- 4646.230.020 — DIAPHRAGM (Qty: 1)
- 4646.231.032 — FILLER TUBE (Qty: 1)
Frequently Asked Questions
What is ZF part number 0631.610.114?
ZF 0631.610.114 is an OEM set screw produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 260, 4 WG 261(4), 5 WG 260, 6 WG 260, 6 WG 260(4). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0631.610.114?
This set screw is found in 5 ZF transmission variants, including: 3 WG 260, 4 WG 261(4), 5 WG 260, 6 WG 260, 6 WG 260(4). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0631.610.114 installed in the transmission?
This set screw is located in the control unit area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 160 in the Control Unit section.
How do I look up ZF part 0631.610.114?
This part can be found under several formats: 0631610114 / 0631.610.114 / 0631 610 114. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0631.610.114).
Where can I buy ZF 0631.610.114?
You can purchase genuine ZF 0631.610.114 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

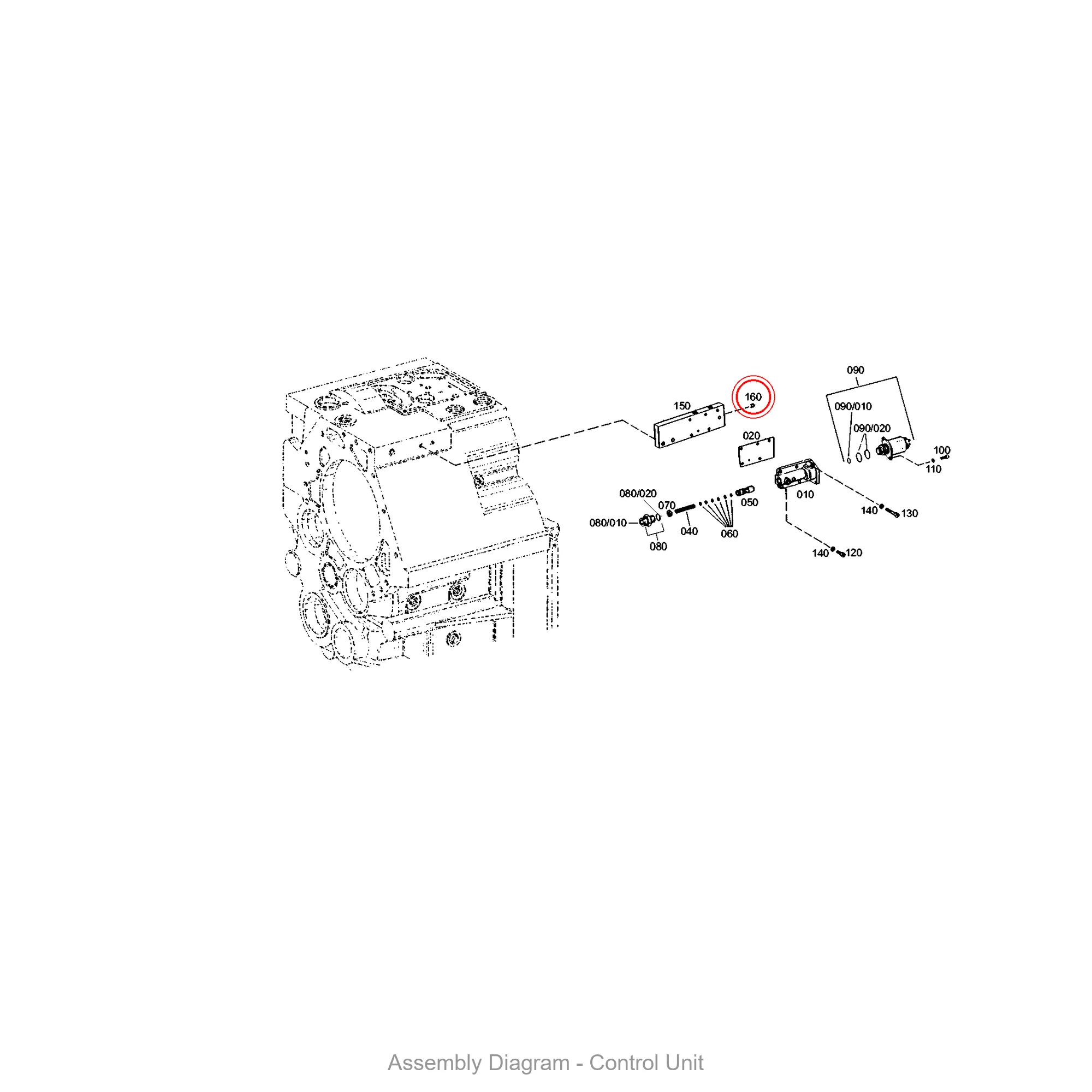

Exploded View / Assembly Diagram
The diagram below shows where ZF 0631.610.114 is located within the transmission assembly.
