ZF 0634.305.003 RECTANGULAR RING
ZF Part Number: 0634.305.003 (also written as 0634305003 / 0634.305.003 / 0634 305 003)
Compatible ZF Transmission Models
This rectangular ring is used in the following ZF transmission models:
- ZF 5 WG 260
- ZF 6 WG 250
- ZF 6 WG 260
- ZF 6 WG 260(4)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Axle Disconnection | 090 | 1 |
| Axle Disconnection | 370 | 1 |
| Axle Disconnection | 426 | 1 |
| Crawler | 690 | 1 |
| Differential | 370 | 1 |
| Differential | 690 | 1 |
| Output | 690 | 1 |
Related Parts in Same Assembly
- 0501.213.026 — GEAR PUMP (Qty: 1)
- 0501.214.082 — SUCTION FILTER (Qty: 1)
- 0637.100.508 — UNION SCREW (Qty: 2)
- 0899.316.841 — HOSE PIPE (Qty: 1)
- 4168.037.057 — CONVERTER (Qty: 1)
- 4644.306.560 — VALVE BLOCK (Qty: 1)
- 4646.301.228 — HOUSING (Qty: 1)
- 4646.302.013 — INPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0634.305.003?
ZF 0634.305.003 is an OEM rectangular ring produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 5 WG 260, 6 WG 250, 6 WG 260, 6 WG 260(4). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0634.305.003?
This rectangular ring is found in 4 ZF transmission variants, including: 5 WG 260, 6 WG 250, 6 WG 260, 6 WG 260(4). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0634.305.003 installed in the transmission?
This rectangular ring is located in the axle disconnection, differential, output area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 090 in the Axle Disconnection section.
How do I look up ZF part 0634.305.003?
This part can be found under several formats: 0634305003 / 0634.305.003 / 0634 305 003. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0634.305.003).
Where can I buy ZF 0634.305.003?
You can purchase genuine ZF 0634.305.003 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

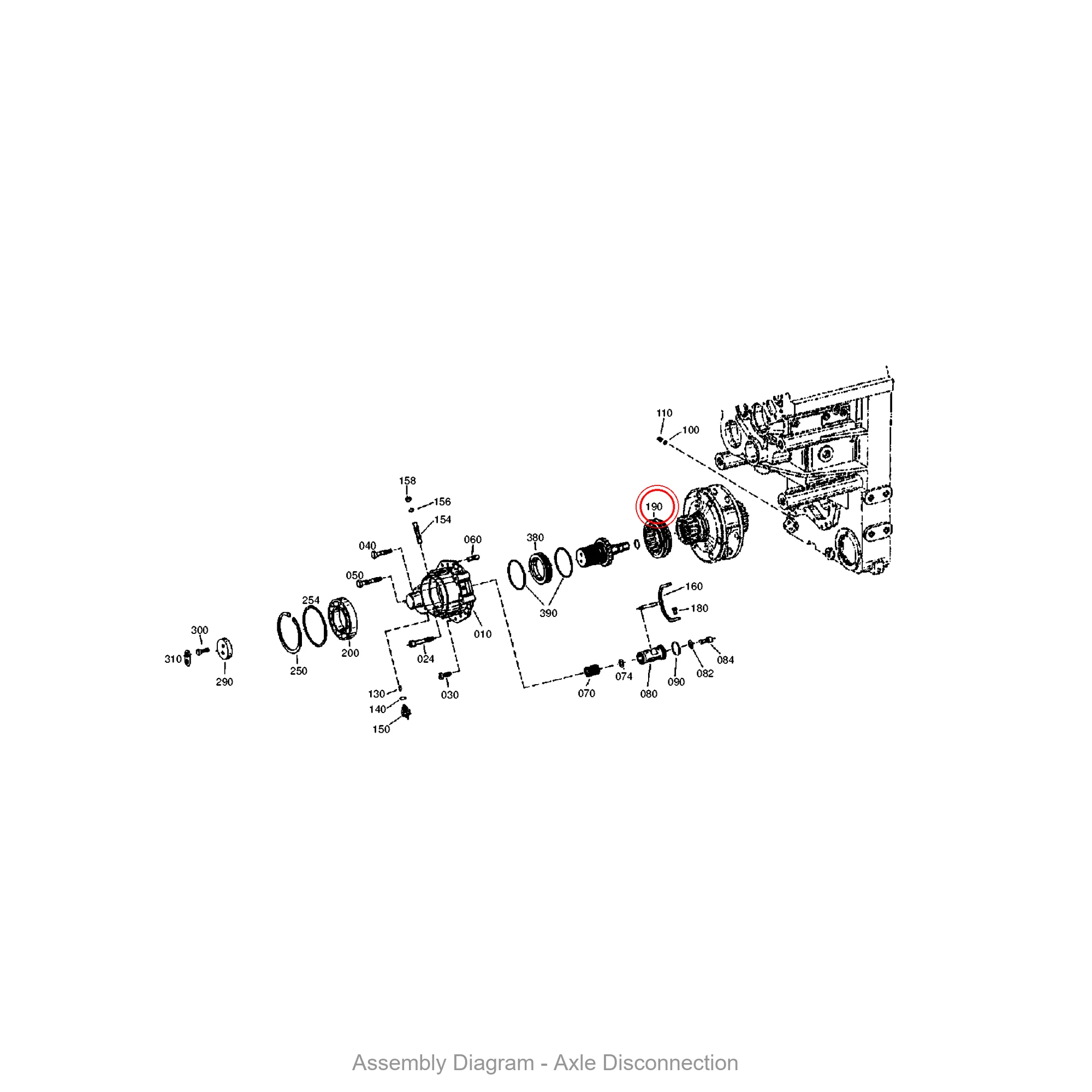

Exploded View / Assembly Diagram
The diagram below shows where ZF 0634.305.003 is located within the transmission assembly.
