Overview

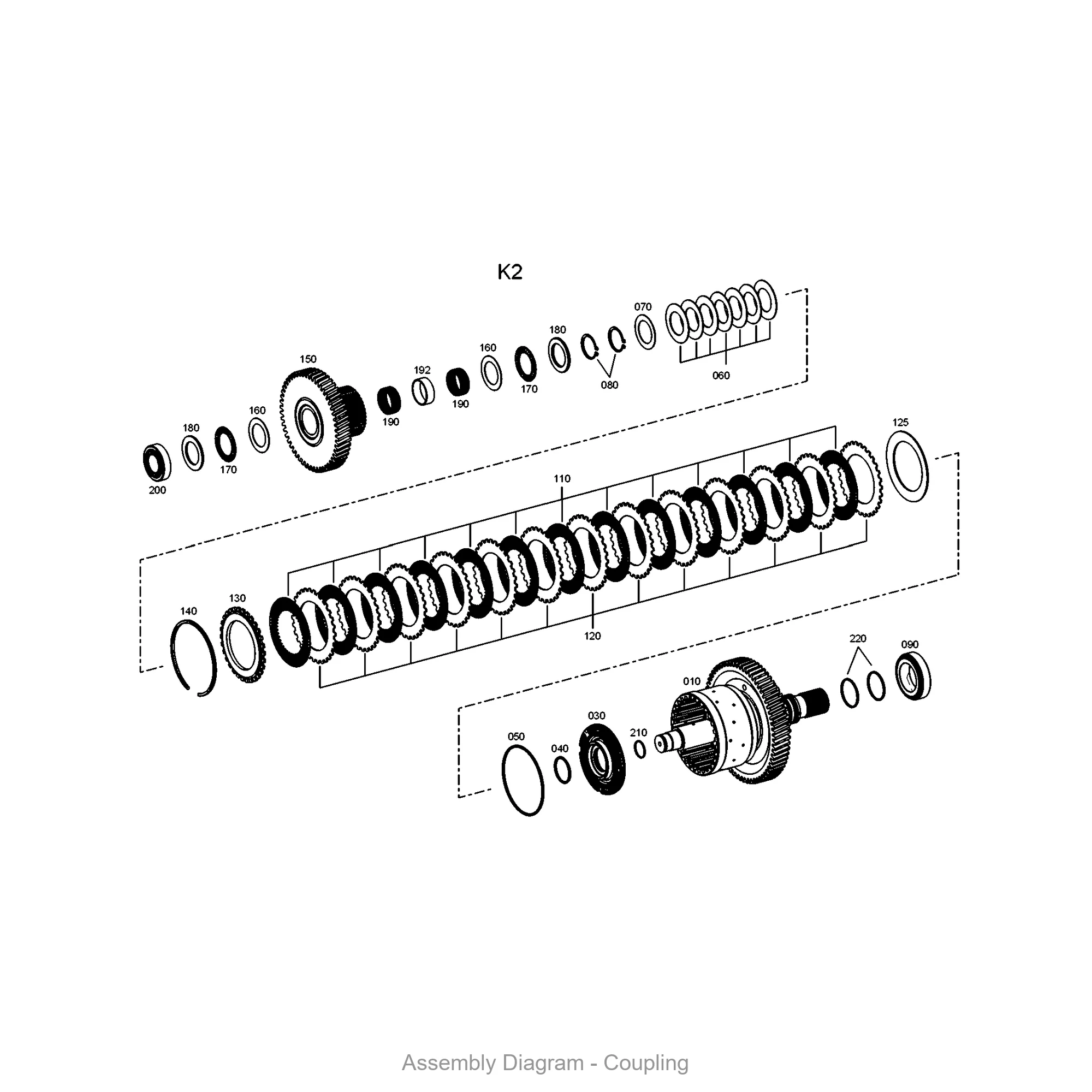

The ZF 0635.290.063 RUNNING DISK is a critical friction component engineered for the WG90, WG94, and WG98 series transmissions. This OEM genuine part functions as a load-bearing separator between rotating clutch packs, ensuring smooth torque transfer and precise hydraulic pressure distribution within the planetary gear set. The SKU 0635.290.063 is specifically designed to manage thermal expansion and maintain consistent clamping force under high-load industrial applications. When installed alongside a 2093109024: DIFFERENTIAL, this running disk stabilizes the entire drivetrain assembly, reducing vibration and extending service intervals.
Symptoms of Failure
- Erratic gear engagement or delayed shifting – A worn running disk causes insufficient clutch pack clearance, leading to harsh or delayed gear changes during acceleration.
- Low hydraulic pressure warnings – Internal fluid bypass around a degraded disk triggers pressure drops, often accompanied by transmission overheating.
- Metallic grinding noise from the bell housing – When the disk surface wears unevenly, steel-on-steel contact produces a distinct grinding sound during torque converter lockup.
- Oil contamination with bronze or steel particles – Friction material shedding from the disk appears as metallic debris in the transmission fluid filter.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 0635.290.063 |
| Material | Sintered bronze on steel core |
| Outer Diameter | 180 mm (7.09 in) |
| Inner Diameter | 120 mm (4.72 in) |
| Thickness | 2.5 mm (0.098 in) |
| Weight | 0.34 kg (0.75 lbs) |
| OEM Reference | ZF 0635.290.063 |
Compatibility
This running disk is factory-specified for ZF WG90, WG94, and WG98 series transmissions, commonly found in medium-duty trucks, agricultural tractors, and construction loaders. It directly replaces the original disk in the clutch pack C1 and C3 positions. For complete differential rebuilds, pair this disk with a 2093209095: DIFFERENTIAL and a 2093309071: DIFF.HOUSING to restore factory tolerances. The disk also interfaces with the 0750117075: TAPER ROLLER BEARING for axial load support.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 2093109024 | DIFFERENTIAL | Distributes torque between axles |
| 0750117075 | TAPER ROLLER BEARING | Supports radial and axial loads |
| 2093209095 | DIFFERENTIAL | Secondary torque distribution unit |
| 2093309071 | DIFF.HOUSING | Encloses differential gears |
| 0631100223 | SPRING PIN | Secures clutch pack alignment |
| 0730300820 | THRUST WASHER | Reduces axial friction |
| 4482360002 | AXLE BEVEL GEAR | Transfers power to wheel hubs |
| 2097309085 | DIFFERENTIAL AXLE | Connects differential to drive shaft |
| 5838300811 | THRUST WASHER | Prevents gear end-play |
| 4482360001 | DIFFERENTIAL BEVEL GEAR | Changes torque direction |
Frequently Asked Questions
Q: Can I reuse the old running disk if it looks clean?
A: No. Even visually intact disks can have microscopic wear that alters clutch pack clearance. Always replace the 0635.290.063 during a rebuild to avoid premature failure.
Q: Does this disk fit the ZF WG180 transmission?
A: No. The 0635.290.063 is specifically sized for WG90/WG94/WG98 series. For WG180 models, consult the ZF parts catalog for the correct running disk diameter.
Q: What torque spec applies to the retaining bolts?
A: The running disk itself is not bolted; it floats between clutch plates. However, the differential housing bolts (e.g., for 2093309071) require 85 Nm (63 ft-lbs) when using new spring pins.
