ZF 0635.416.285 CYLINDER ROLLER BEARING
ZF Part Number: 0635.416.285 (also written as 0635416285 / 0635.416.285 / 0635 416 285)
OEM Cross Reference / Interchange Numbers
ZF 0635.416.285 (CYLINDER ROLLER BEARING) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工筑路 | 860119573 | OEM Cross Ref |
| 徐工铲运RZ | 860324890 | OEM Cross Ref |
| 徐工铲运 | 860116168 | OEM Cross Ref |
| 山东临工 | 7200001501 | OEM Cross Ref |
| 柳工 | SP100090 | OEM Cross Ref |
| 柳工 | SP100090RE | OEM Cross Ref |
This ZF part (0635.416.285) directly replaces the following OEM numbers: 徐工筑路: 860119573; 徐工铲运RZ: 860324890; 徐工铲运: 860116168. All listed cross-reference numbers are confirmed compatible with ZF 0635.416.285.
Compatible ZF Transmission Models
This cylinder roller bearing is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 180
- ZF 4 WG 180(500)
- ZF 4 WG 200(555)
- ZF 4 WG 200(555/3)
- ZF 4 WG 200(555/5)
- ZF 6 WG 180(500)
- ZF 6 WG 200
- ZF 6 WG 200(500)
- ZF 6 WG 200(555)
- ZF 6 WG 200(555/4)
- ZF 6 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Output | 03.030 | 1 |
| Output | 030 | 1 |
Related Parts in Same Assembly
- 0501.003.819 — BRAKE (Qty: 1)
- 4168.030.104 — CONVERTER (Qty: 1)
- 4642.306.050 — COVER PLATE (Qty: 1)
- 4642.306.161 — VALVE HOUSING (Qty: 1)
- 4644.221.197 — SUCTION TUBE (Qty: 1)
- 4644.231.059 — OIL LEVEL TUBE (Qty: 1)
- 4644.301.333 — HOUSING (Qty: 1)
- 4644.302.188 — INPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0635.416.285?
ZF 0635.416.285 is an OEM cylinder roller bearing produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 180, 4 WG 180(500), 4 WG 200(555), 4 WG 200(555/3). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0635.416.285?
This cylinder roller bearing is found in 12 ZF transmission variants, including: 3 WG 200, 4 WG 180, 4 WG 180(500), 4 WG 200(555), 4 WG 200(555/3), 4 WG 200(555/5), 6 WG 180(500), 6 WG 200, 6 WG 200(500), 6 WG 200(555). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0635.416.285 installed in the transmission?
This cylinder roller bearing is located in the output area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 03.030 in the Output section.
How do I look up ZF part 0635.416.285?
This part can be found under several formats: 0635416285 / 0635.416.285 / 0635 416 285. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0635.416.285).
How do I replace ZF 0635.416.285?
Replacement of ZF 0635.416.285 should be performed by a qualified technician. Ensure the transmission is drained and the housing is properly supported before removal. Always replace bearings in pairs when possible.
What is the expected service life of ZF 0635.416.285?
Under normal operating conditions with proper lubrication, this bearing typically lasts the full transmission overhaul interval. Replace during scheduled overhauls or if abnormal noise, vibration, or increased operating temperature is detected.
Where can I buy ZF 0635.416.285?
You can purchase genuine ZF 0635.416.285 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

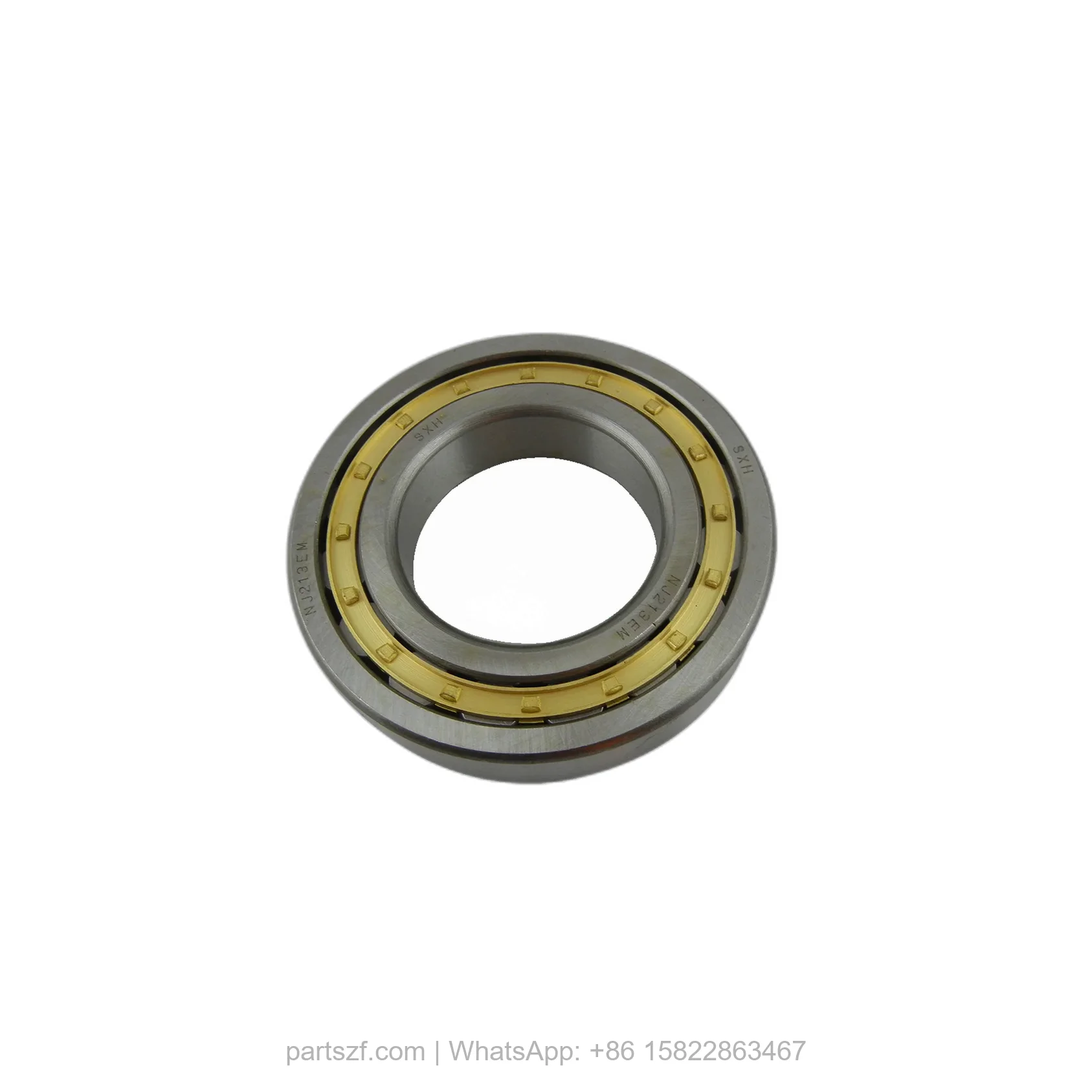

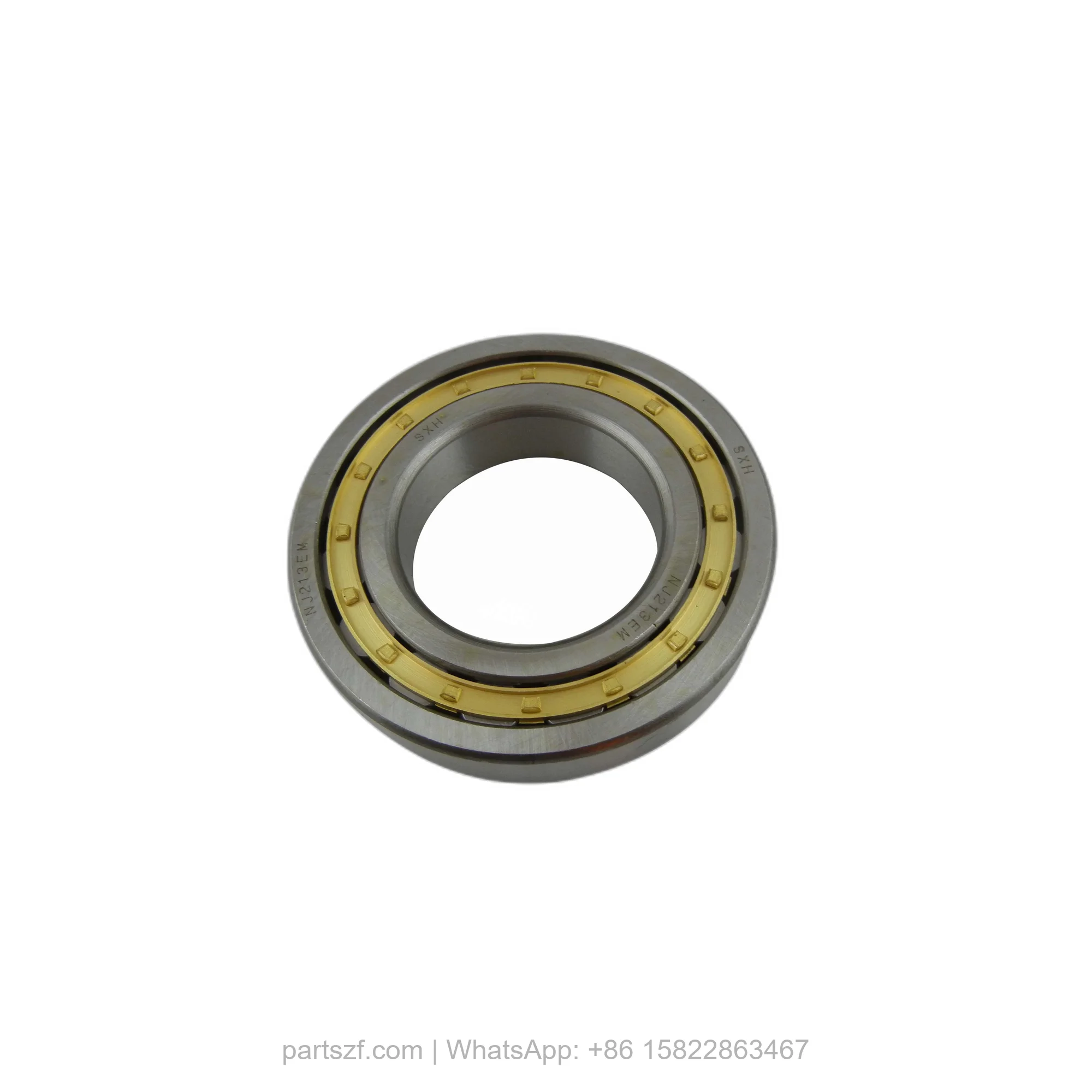

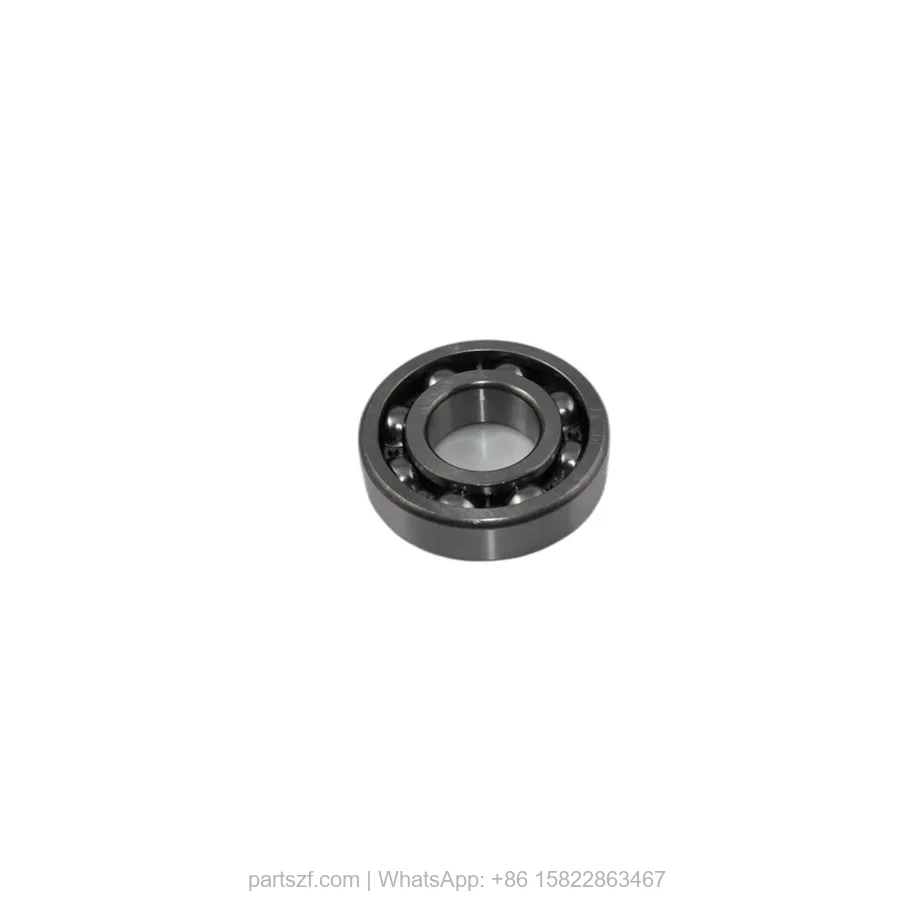

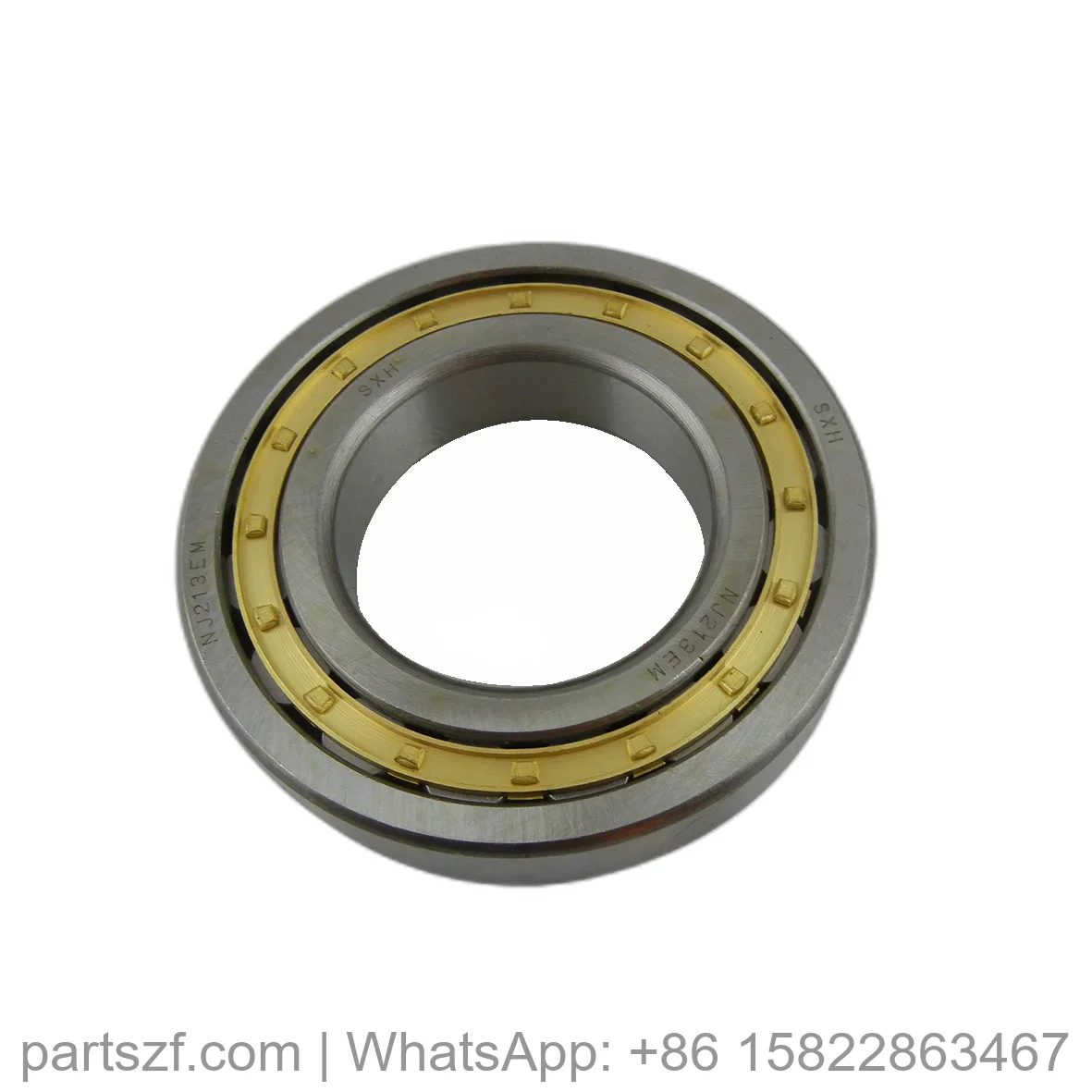

Product Photos

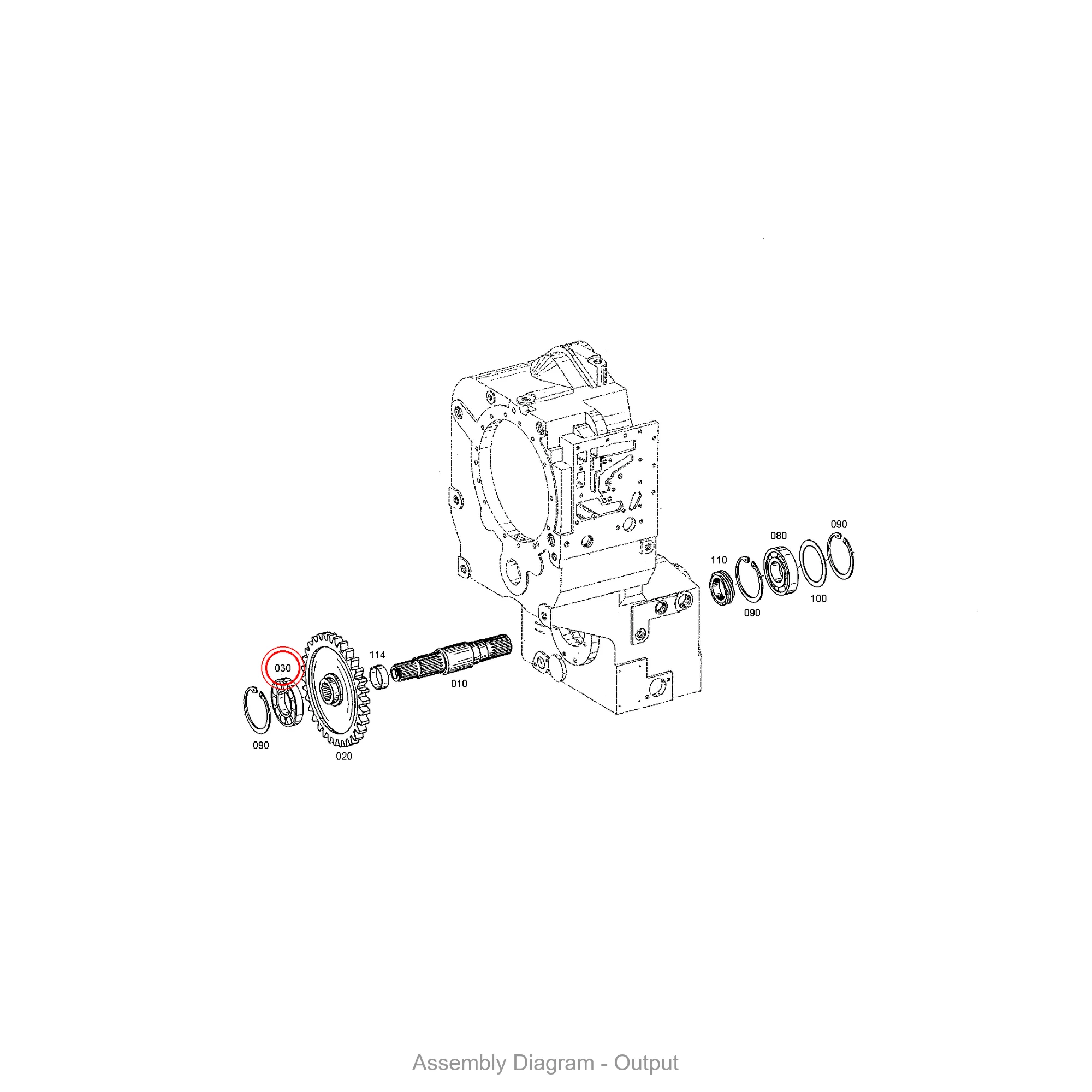

Exploded View / Assembly Diagram
The diagram below shows where ZF 0635.416.285 is located within the transmission assembly.
