ZF 0636.015.120 HEXAGON SCREW
ZF Part Number: 0636.015.120 (also written as 0636015120 / 0636.015.120 / 0636 015 120)
Compatible ZF Transmission Models
This hexagon screw is used in the following ZF transmission models:
- ZF 4 WG 65
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Axle Disconnection | 430 | 2 |
| Coupling | 540 | 4 |
| Input | 030/040 | 8 |
| Input | 120 | 12 |
| Input | 340 | 7 |
| Kuppl.Betaet | 070 | 2 |
| Output | 730 | 2 |
| Output | 930 | 4 |
| Parking Brake | 250 | 2 |
| Power Take Off | 230 | 7 |
| Pressure Oil Pump | 020 | 2 |
| Retarder | 210 | 8 |
Related Parts in Same Assembly
- 0501.215.886 — BRAKE (Qty: 2)
- 0501.222.007 — VALVE BLOCK (Qty: 1)
- 0750.117.075 — TAPER ROLLER BEARING (Qty: 2)
- 2093.206.002 — GEARSHIFT SHAFT (Qty: 1)
- 2093.229.004 — BRACKET (Qty: 1)
- 2093.240.001 — LIFTING SHAFT (Qty: 1)
- 2093.298.147 — HOUSING (Qty: 1)
- 2093.298.163 — REPAIR KIT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0636.015.120?
ZF 0636.015.120 is an OEM hexagon screw produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 65. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0636.015.120?
This hexagon screw is found in 1 ZF transmission variants, including: 4 WG 65. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0636.015.120 installed in the transmission?
This hexagon screw is located in the input, kuppl.betaet, output area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 430 in the Axle Disconnection section.
How do I look up ZF part 0636.015.120?
This part can be found under several formats: 0636015120 / 0636.015.120 / 0636 015 120. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0636.015.120).
Where can I buy ZF 0636.015.120?
You can purchase genuine ZF 0636.015.120 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

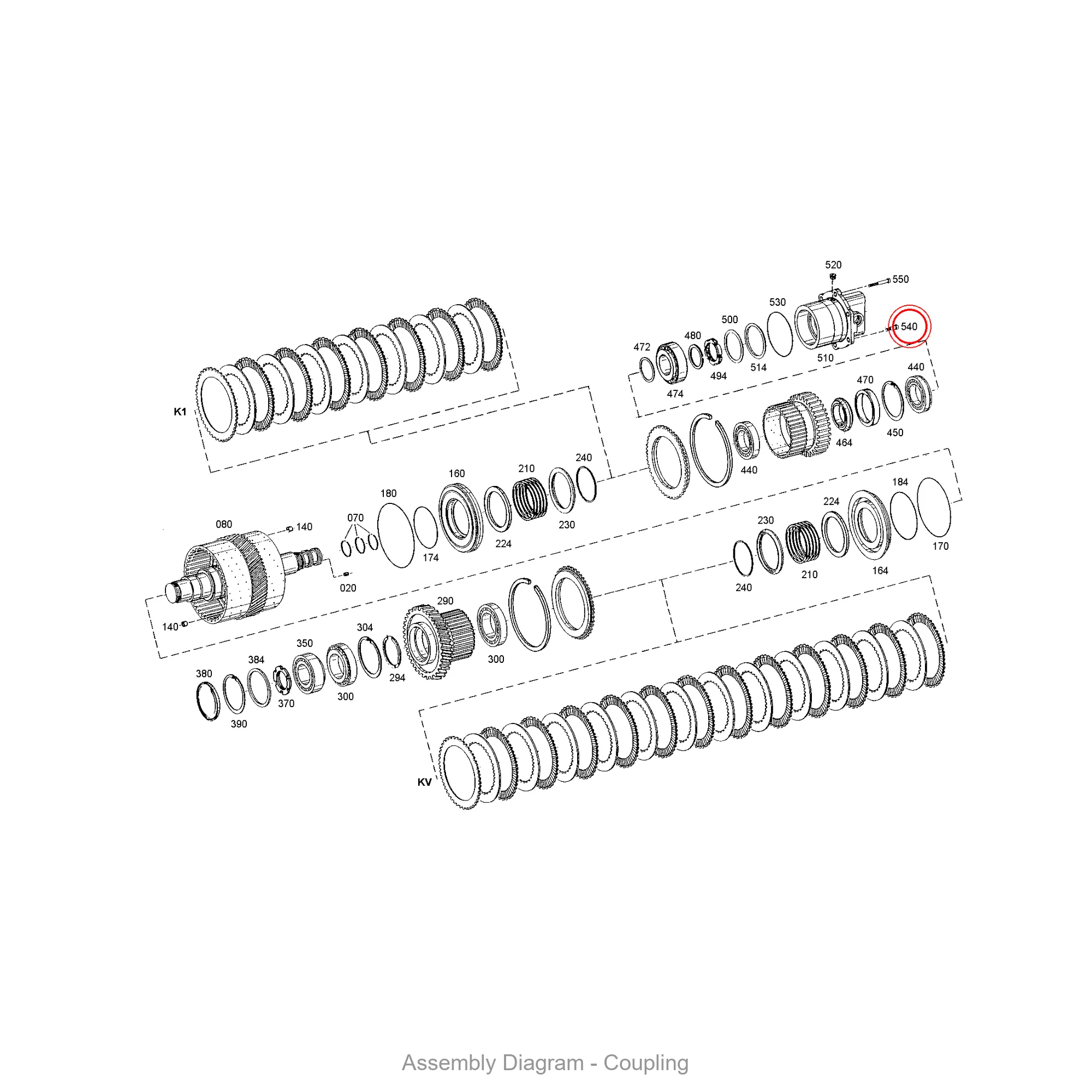

Exploded View / Assembly Diagram
The diagram below shows where ZF 0636.015.120 is located within the transmission assembly.
