ZF 0636.015.270 HEXAGON SCREW
ZF Part Number: 0636.015.270 (also written as 0636015270 / 0636.015.270 / 0636 015 270)
Compatible ZF Transmission Models
This hexagon screw is used in the following ZF transmission models:
- ZF 3 WG 100(400)
- ZF 3 WG 100(500)
- ZF 4 WG 100(400)
- ZF 4 WG 100(500)
- ZF 6 WG 100
- ZF 6 WG 100(500)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Engine Connection | 050 | 4 |
| Engine Connection | 290 | 8 |
Related Parts in Same Assembly
- 0501.207.081 — BRAKE (Qty: 1)
- 0501.208.651 — PUMP (Qty: 1)
- 0501.216.209 — RANGE SELECTOR (Qty: 1)
- 0637.880.188 — PIPE UNION (Qty: 8)
- 4168.028.190 — CONVERTER (Qty: 1)
- 4644.306.558 — VALVE BLOCK (Qty: 1)
- 4651.301.025 — HOUSING (Qty: 1)
- 4651.302.001 — TURBINE SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0636.015.270?
ZF 0636.015.270 is an OEM hexagon screw produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 100(400), 3 WG 100(500), 4 WG 100(400), 4 WG 100(500), 6 WG 100. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0636.015.270?
This hexagon screw is found in 6 ZF transmission variants, including: 3 WG 100(400), 3 WG 100(500), 4 WG 100(400), 4 WG 100(500), 6 WG 100, 6 WG 100(500). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0636.015.270 installed in the transmission?
This hexagon screw is located in the engine connection area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 050 in the Engine Connection section.
How do I look up ZF part 0636.015.270?
This part can be found under several formats: 0636015270 / 0636.015.270 / 0636 015 270. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0636.015.270).
Where can I buy ZF 0636.015.270?
You can purchase genuine ZF 0636.015.270 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

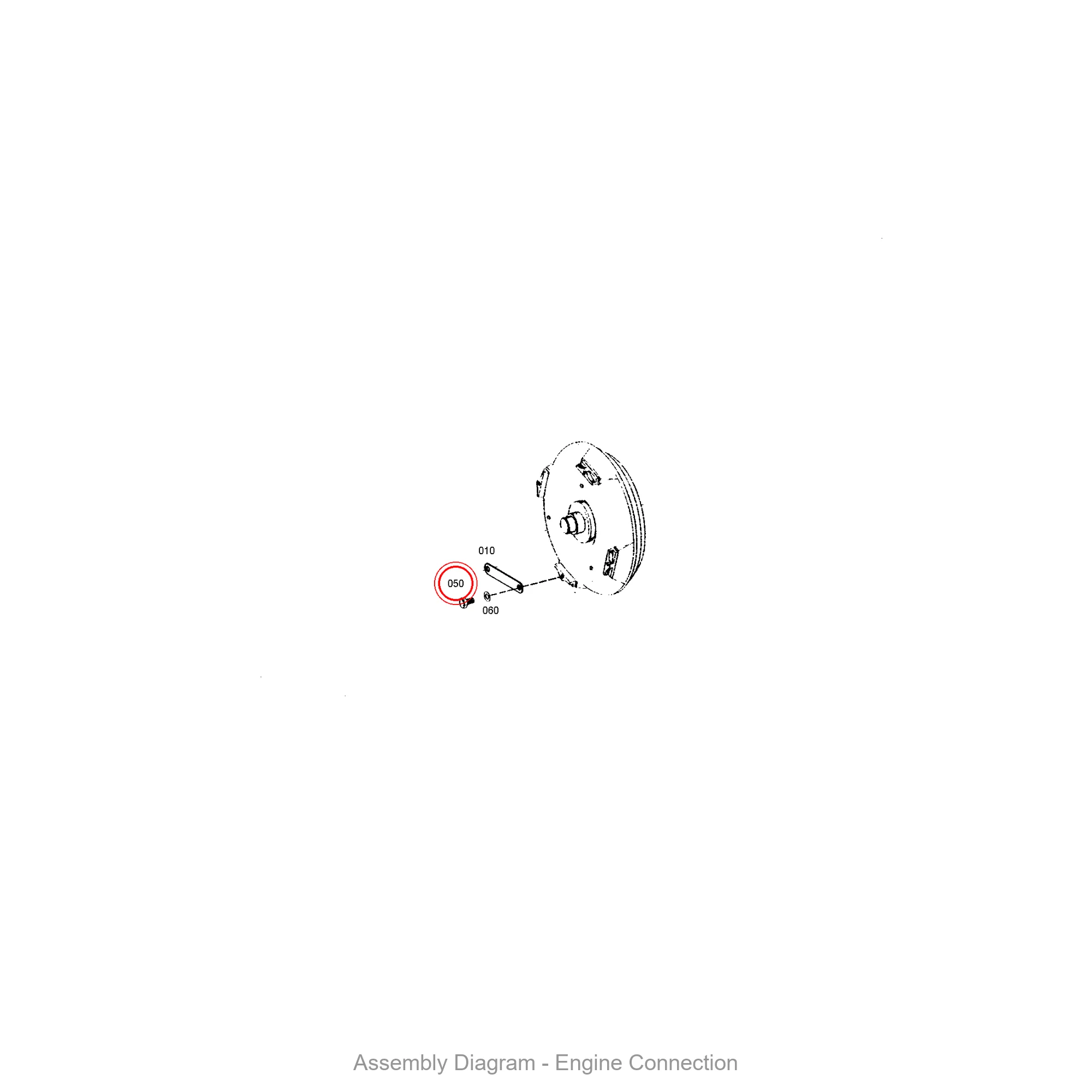

Exploded View / Assembly Diagram
The diagram below shows where ZF 0636.015.270 is located within the transmission assembly.
