ZF 0637.100.585 BULKHEAD UNION | OEM Genuine Part

Overview

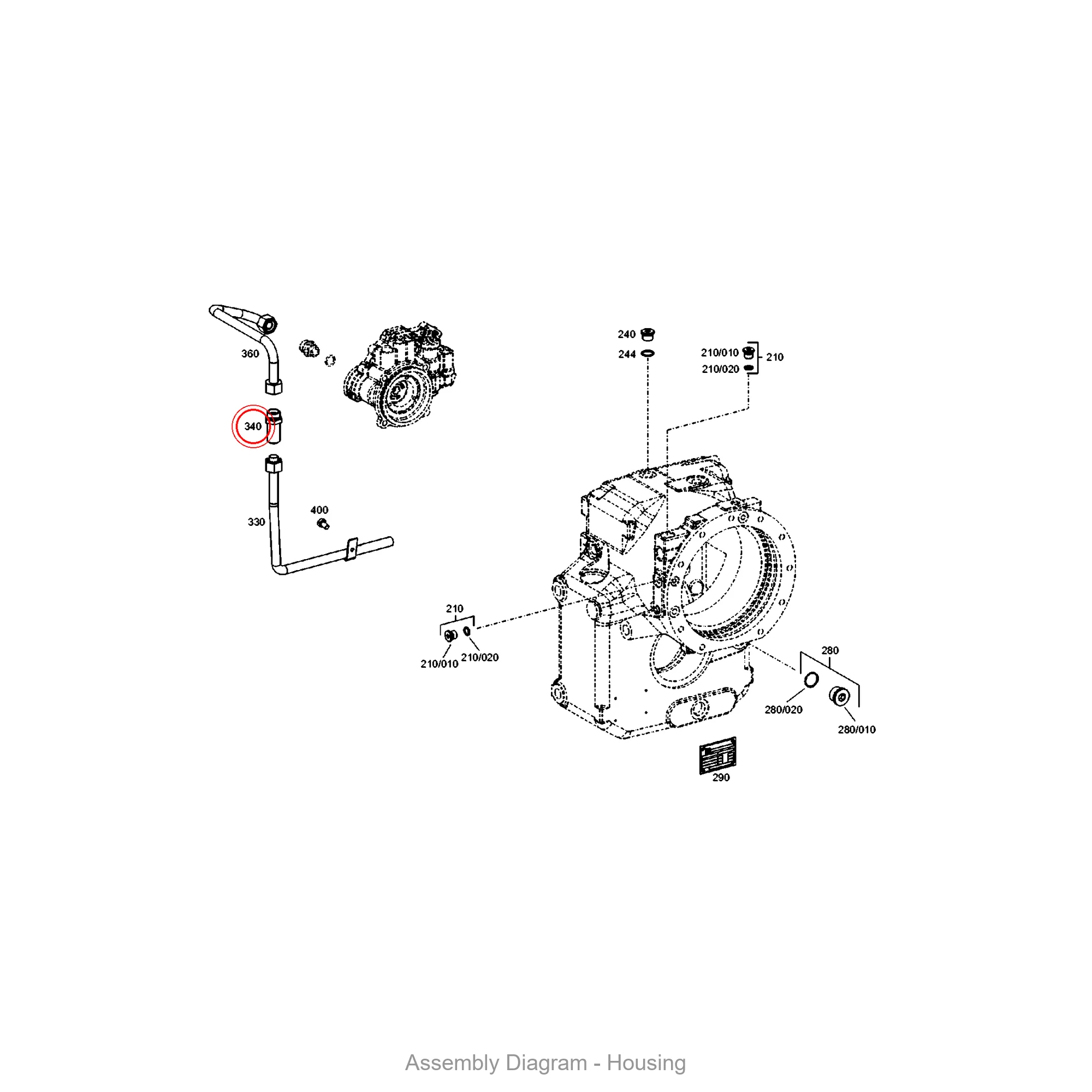

The ZF 0637.100.585 BULKHEAD UNION is a critical hydraulic interface component designed to create a sealed, pass-through connection within the transmission casing. This OEM genuine part, identified by SKU 0637.100.585, functions as a rigid coupling point for fluid lines, ensuring pressurized oil is routed correctly between the valve body and external coolers or filters. It is typically seated within the main housing assembly, where it must withstand high cyclic pressures and thermal expansion. When paired with the 4143101009: HOUSING and the 4143301025: HOUSING, this union provides the structural integrity required for demanding construction machinery applications.

Symptoms of Failure

• External hydraulic oil seepage at the union joint: A worn bulkhead union often manifests as a slow, persistent drip of transmission fluid around the connection point, leading to low fluid levels and potential overheating.
• Erratic gear engagement under load: When the union fails to maintain a consistent seal, hydraulic pressure drops, causing delayed or slipping shifts, particularly in reverse or low gears.
• Contaminated transmission fluid: A cracked union can allow external debris or moisture to enter the hydraulic circuit, resulting in gritty fluid and accelerated wear on internal components.
• Audible hissing or whining from the transmission: Air ingestion through a compromised bulkhead union creates cavitation noise, which is a clear indicator of a failing seal.

Technical Specifications

Compatibility

This bulkhead union is engineered for ZF powershift transmissions commonly found in wheel loaders, graders, and excavators. It is a direct fit for the WG180, WG200, and WG210 series. It also appears in the 4WG-200 and 6WG-200 variants used in heavy construction machinery. For a complete seal, always install a new 0634313603: O-RING and a 4475280018: SCREW PLUG during replacement to prevent cross-threading.
