ZF 0730.109.152 INTERMEDIATE WASHER
ZF Part Number: 0730.109.152 (also written as 0730109152 / 0730.109.152 / 0730 109 152)
OEM Cross Reference / Interchange Numbers
ZF 0730.109.152 (INTERMEDIATE WASHER) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运RZ | 860581792 | OEM Cross Ref |
| 柳工 | SP107745 | OEM Cross Ref |
This ZF part (0730.109.152) directly replaces the following OEM numbers: 徐工铲运RZ: 860581792; 柳工: SP107745. All listed cross-reference numbers are confirmed compatible with ZF 0730.109.152.
Compatible ZF Transmission Models
This intermediate washer is used in the following ZF transmission models:
- ZF 4 WG 250(2)
- ZF 4 WG 258
- ZF 4 WG 308
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Coupling | 210 | 2 |
| Coupling | 220 | 1 |
| Coupling | 222 | 2 |
| Coupling | 224 | 2 |
| Coupling | 225 | 1 |
Related Parts in Same Assembly
- 0501.008.365 — DISC BRAKE (Qty: 1)
- 0501.208.244 — SUCTION FILTER (Qty: 1)
- 0501.213.026 — GEAR PUMP (Qty: 1)
- 0637.100.508 — UNION SCREW (Qty: 2)
- 4168.037.054 — CONVERTER (Qty: 1)
- 4475.280.011 — SCREW PLUG (Qty: 3)
- 4644.306.560 — VALVE BLOCK (Qty: 1)
- 4646.301.095 — HOUSING (Qty: 1)
Frequently Asked Questions
What is ZF part number 0730.109.152?
ZF 0730.109.152 is an OEM intermediate washer produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 250(2), 4 WG 258, 4 WG 308. Use this page for ZF part-number lookup and RFQ confirmation, not an aftermarket reproduction.
Which ZF transmissions use 0730.109.152?
This intermediate washer is found in 3 ZF transmission variants, including: 4 WG 250(2), 4 WG 258, 4 WG 308. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0730.109.152 installed in the transmission?
This intermediate washer is located in the coupling area of the transmission. It appears in 10 different assembly configurations. In the service manual, look for position number 210 in the Coupling section.
How do I look up ZF part 0730.109.152?
This part can be found under several formats: 0730109152 / 0730.109.152 / 0730 109 152. All formats refer to the same ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0730.109.152).
Where can I buy ZF 0730.109.152?
You can purchase ZF 0730.109.152 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with fitment confirmation required.

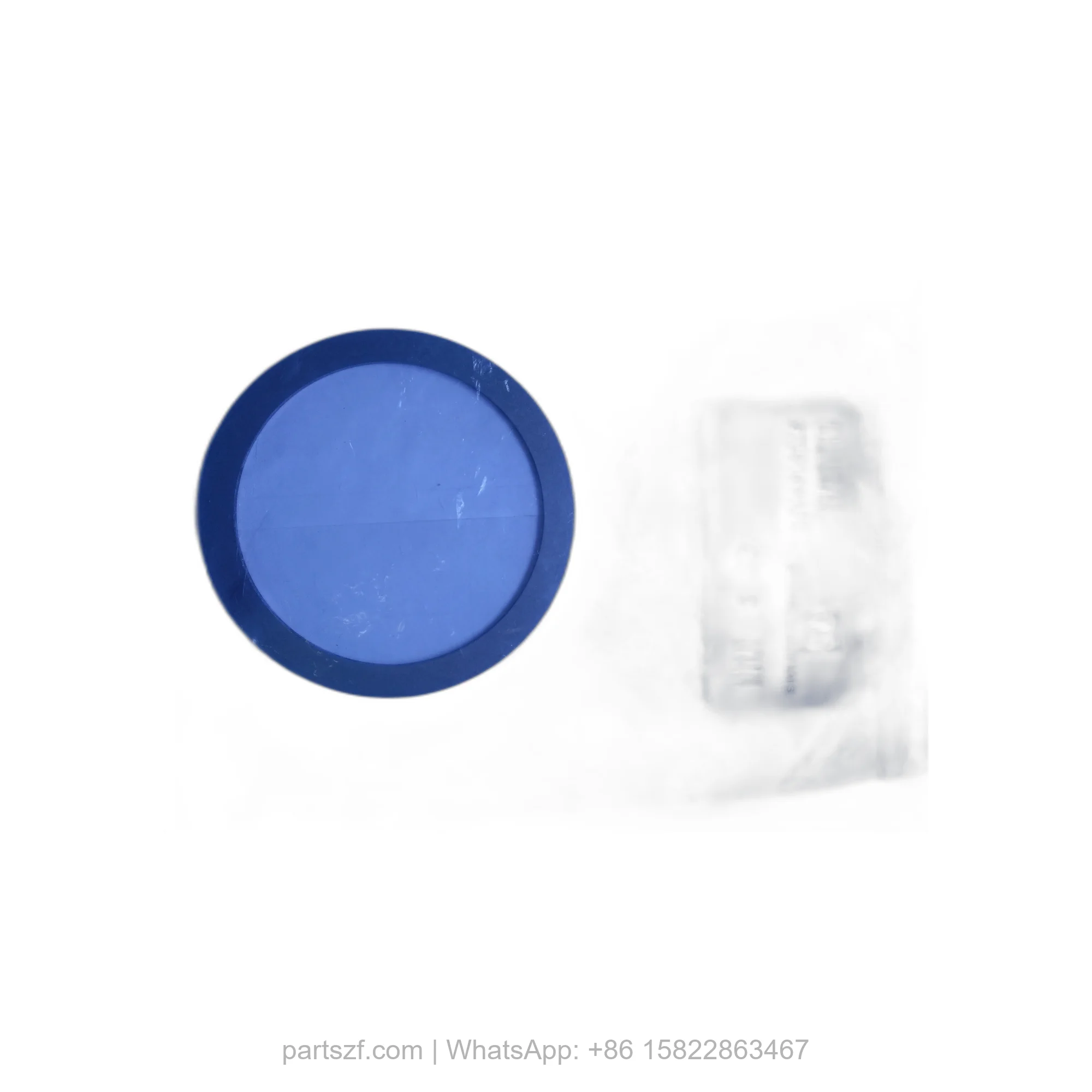

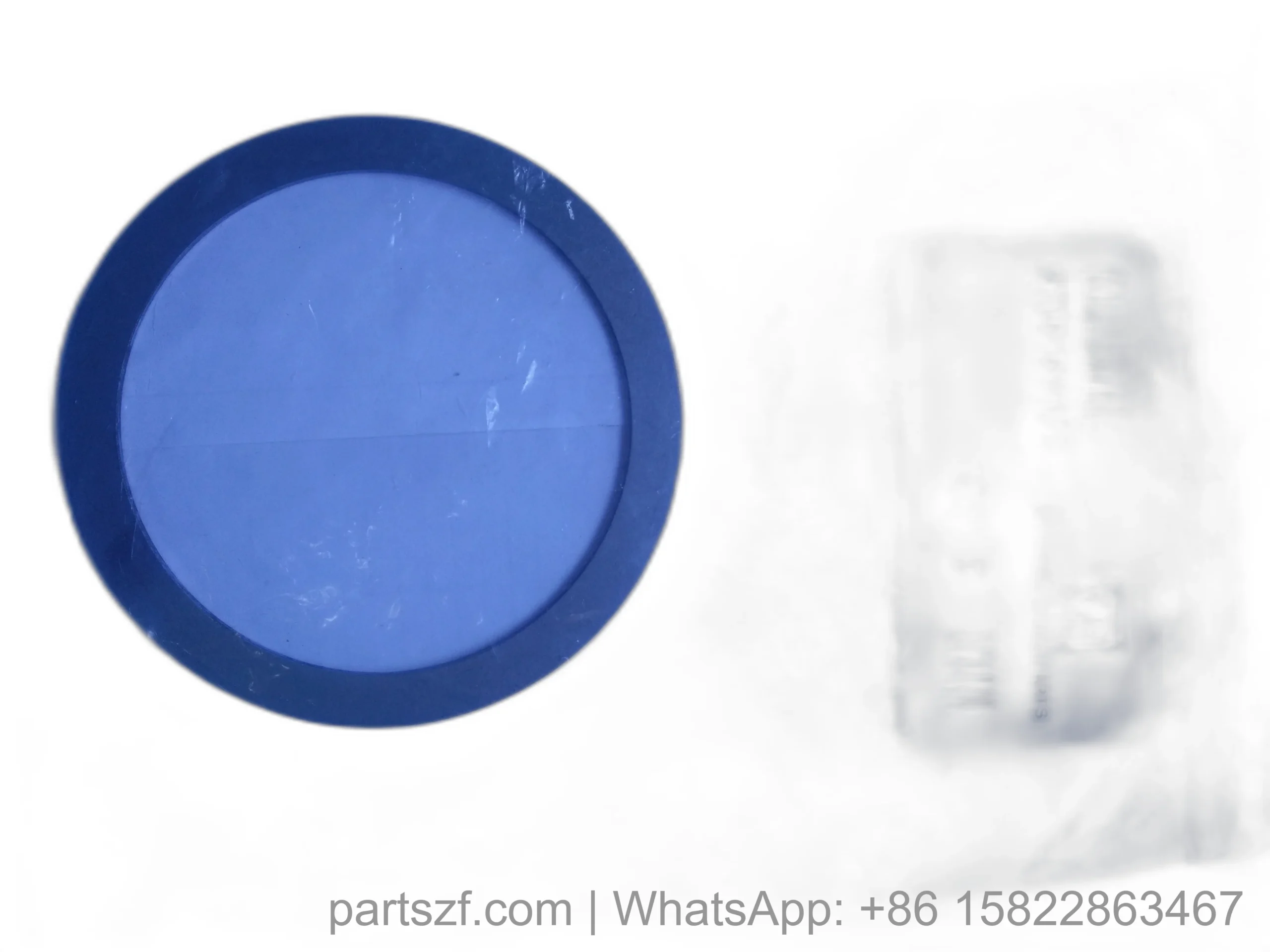

Product Photos

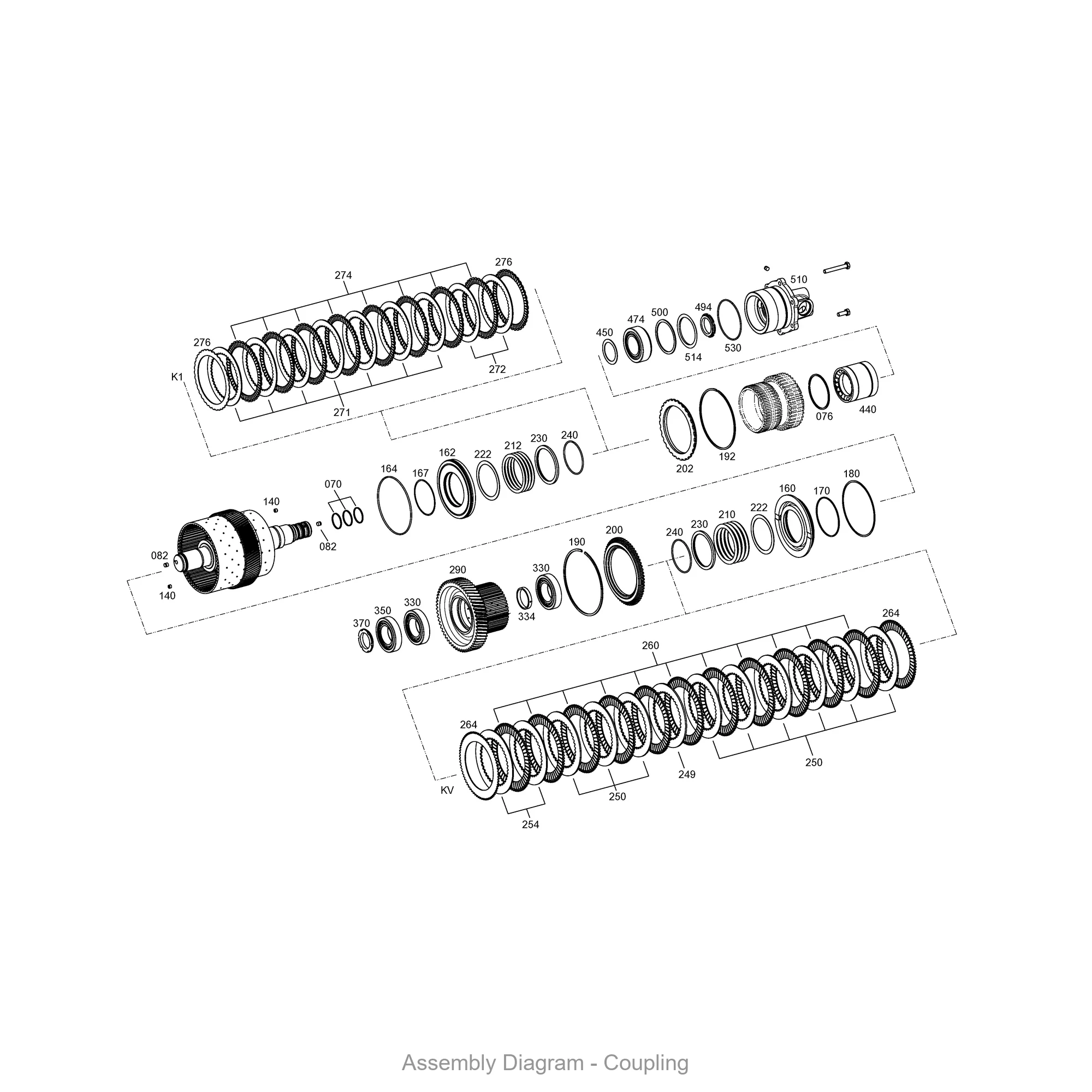

Exploded View / Assembly Diagram
The diagram below shows where ZF 0730.109.152 is located within the transmission assembly.
ZF 0730.109.152 Part Context
ZF 0730.109.152 is listed in the local BOM as INTERMEDIATE WASHER. Use the exact ZF number when confirming replacement or RFQ details.
Compatibility and Assembly Context
4 WG 250(2), 4 WG 258, 4 WG 308
Cross Reference
860581792, SP107745
Replacement Scenario
Use this intermediate washer listing to confirm the part number, assembly section, and image evidence before procurement.
Specification Snapshot
| ZF Number | 0730.109.152 |
|---|---|
| Name | INTERMEDIATE WASHER |
| Sections | COUPLING |
Related PartsZF Hubs
FAQ
Can this part be ordered directly from the number?
Use the ZF number as the primary lookup key, then confirm assembly context and cross-reference evidence before purchase.
Does this page replace fitment confirmation?
No. Final fitment should be confirmed against the machine, transmission family, and available BOM or diagram evidence.
