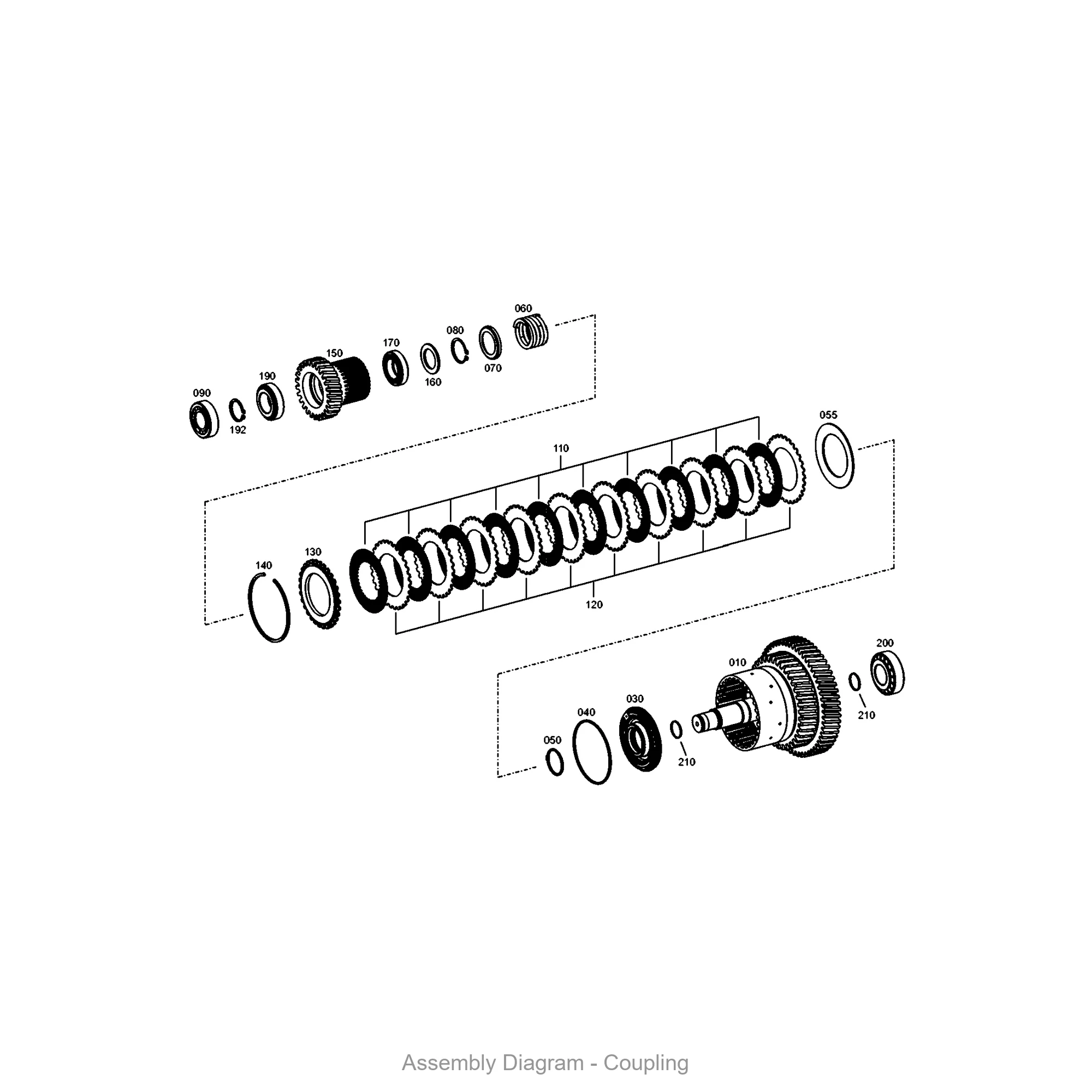

ZF 0730.501.886 RETAINING RING for WG94 | OEM Genuine Part

Overview

The ZF 0730.501.886 RETAINING RING is a critical axial locking component engineered specifically for the WG 94 series transmission. This OEM genuine part secures internal assemblies against end-play, ensuring precise alignment of shafts and gear sets within the planetary carrier. The SKU 0730.501.886 is installed directly into a machined groove inside the TRANSMISSION HOUSING, where it prevents lateral movement of bearings and clutches under high torque loads. Without this retaining ring, the entire rotating assembly can shift, leading to catastrophic internal contact and transmission failure.

Symptoms of Failure

• Audible clunking or knocking during gear engagement: A worn or broken retaining ring allows axial play, causing gear faces to impact each other when shifting from neutral to drive or reverse.
• Intermittent loss of drive pressure: When the ring fails, the clutch pack can shift out of position, causing hydraulic fluid to bypass seals and resulting in delayed engagement or slipping under load.
• Metal debris in transmission fluid: A fractured retaining ring sheds hardened steel fragments into the oil circuit, which can clog valves and score bearing surfaces throughout the HOUSING II.
• Vibration at highway speeds: Unrestrained axial movement of the output shaft creates harmonic vibrations that worsen as road speed increases, often misdiagnosed as driveline imbalance.

Technical Specifications

Compatibility

This retaining ring is a direct-fit component for the ZF WG 94 series transmissions, including the WG94, WG180, WG200, and WG250 models. It is also used in certain WG 80-series variants where the output shaft diameter matches the 86 mm internal dimension. Always verify the groove width in your CYLINDRICAL PIN alignment bores before installation. The ring interfaces directly with the TYPE PLATE identification area on the housing exterior for model verification.
