ZF 0732.000.247 CUP SPRING
ZF Part Number: 0732.000.247 (also written as 0732000247 / 0732.000.247 / 0732 000 247)
Compatible ZF Transmission Models
This cup spring is used in the following ZF transmission models:
- ZF 4 WG 90
- ZF 4 WG 94
- ZF 6 WG 98 TSC
- ZF WG 92 TSC
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Clutch | 060 | 9 |
| Coupling | 050 | 7 |
| Coupling | 060 | 9 |
| Coupling | 104 | 7 |
Related Parts in Same Assembly
- 0501.212.019 — VALVE (Qty: 1)
- 0501.219.001 — PUMP (Qty: 1)
- 4168.028.353 — CONVERTER (Qty: 1)
- 4475.280.011 — SCREW PLUG (Qty: 1)
- 4644.230.040 — DIAPHRAGM (Qty: 2)
- 4660.202.002 — TURBINE SHAFT (Qty: 1)
- 4660.231.011 — OIL FILLER PIPE (Qty: 1)
- 4660.271.020 — COUPLING (Qty: 1)
Frequently Asked Questions
What is ZF part number 0732.000.247?
ZF 0732.000.247 is an OEM cup spring produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 90, 4 WG 94, 6 WG 98 TSC, WG 92 TSC. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0732.000.247?
This cup spring is found in 4 ZF transmission variants, including: 4 WG 90, 4 WG 94, 6 WG 98 TSC, WG 92 TSC. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0732.000.247 installed in the transmission?
This cup spring is located in the clutch, coupling area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 060 in the Clutch section.
How do I look up ZF part 0732.000.247?
This part can be found under several formats: 0732000247 / 0732.000.247 / 0732 000 247. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0732.000.247).
Where can I buy ZF 0732.000.247?
You can purchase genuine ZF 0732.000.247 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

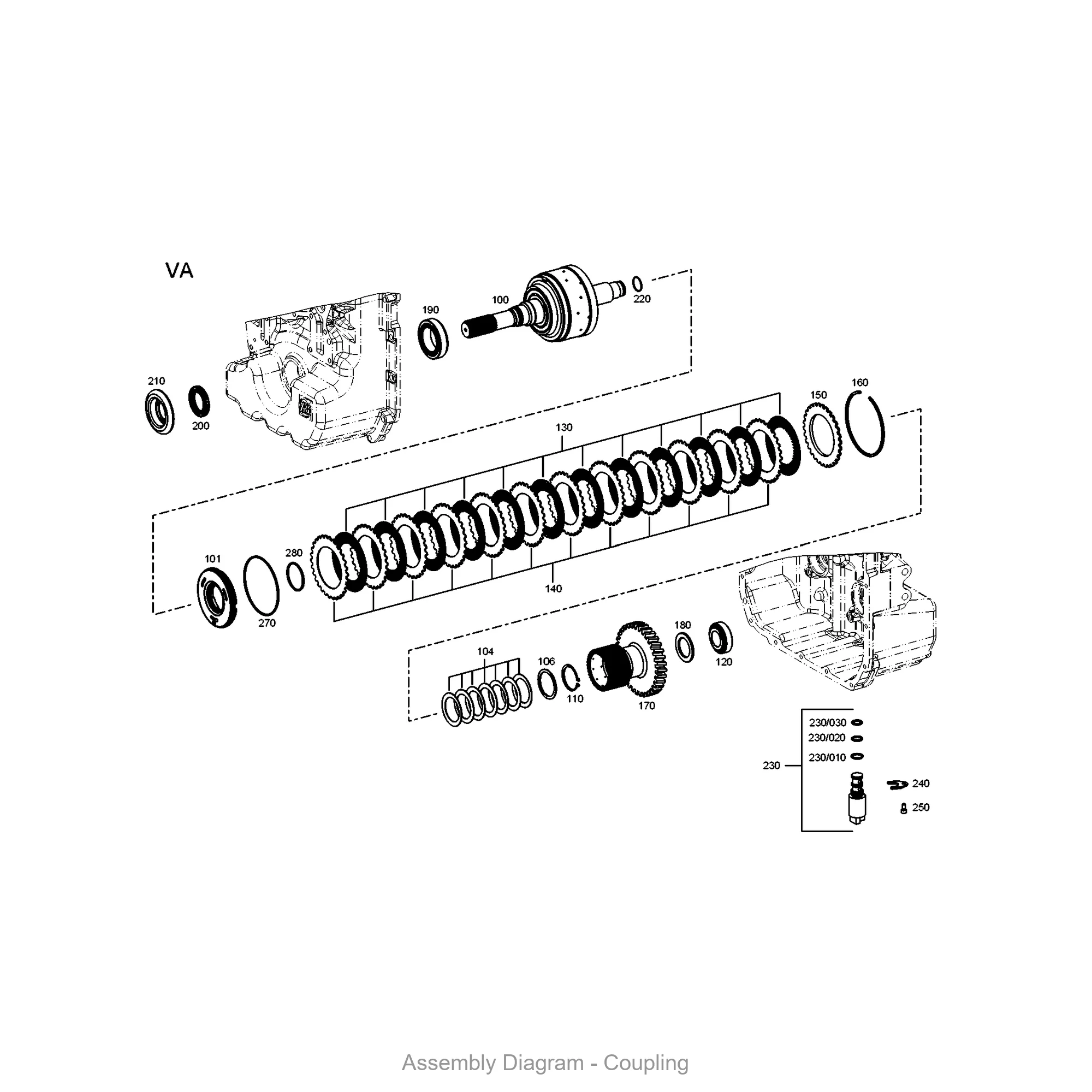

Exploded View / Assembly Diagram
The diagram below shows where ZF 0732.000.247 is located within the transmission assembly.
