ZF 0735.320.873 NEEDLE CAGE for WG200/WG92 | OEM Genuine Part

Overview

The ZF 0735.320.873 NEEDLE CAGE is a precision-engineered component designed to reduce rotational friction and support radial loads within the planetary gear sets of ZF WG200 and WG92 series transmissions. This OEM genuine part, identified by SKU 0735.320.873, sits directly between the sun gear and planetary gears, ensuring smooth torque transfer during gear shifts. Without this needle cage, the transmission’s internal gear train would experience metal-on-metal contact, leading to accelerated wear. It is often replaced during a full rebuild alongside the 4660198001 PERIPHERALS kit, which includes seals and gaskets for the same assembly.

Symptoms of Failure

• Whining or grinding noise during acceleration: A worn needle cage causes uneven roller movement, producing a distinct metallic sound from the transmission housing.
• Delayed or harsh gear engagement: When the cage fails, planetary gears bind, resulting in sluggish shifts or sudden clunks when moving from neutral to drive.
• Metal particles in transmission fluid: Fragments from a fractured needle cage contaminate the oil, often visible during a drain as silver or bronze debris.
• Intermittent loss of power to wheels: Slipping occurs as the cage loses its ability to maintain gear alignment, particularly under load in higher gears.

Technical Specifications

Compatibility

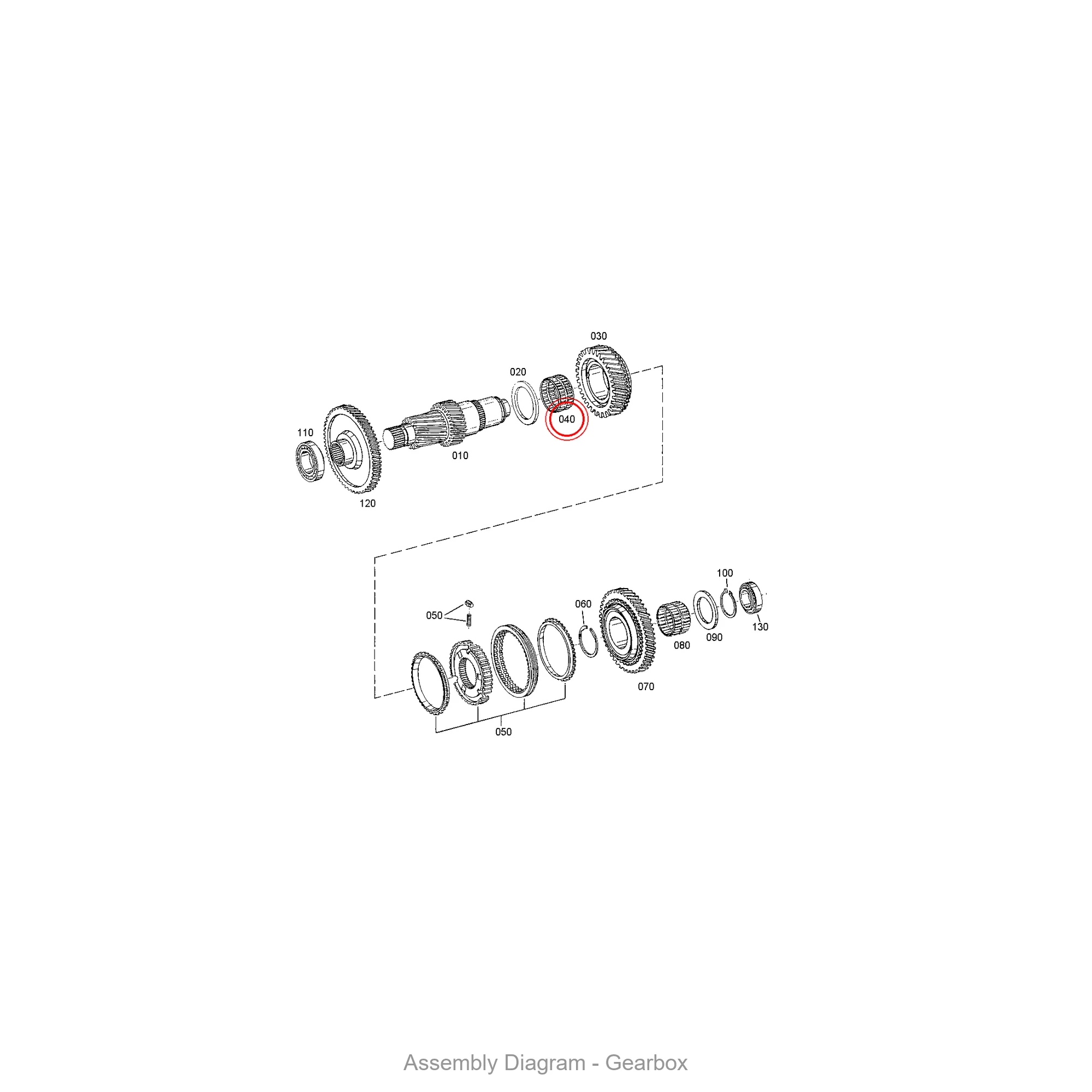

This needle cage is engineered for ZF WG series transmissions, specifically the WG180, WG200, and WG92 models. It is a direct fit for the planetary carrier assembly in both the WG200 Series and WG92 Series categories. The part also integrates with the 0501209818 RANGE SELECTOR mechanism, which controls gear ratio changes. For proper installation, ensure the 4660101011 TRANSMISSION HOUSING and 4660301018 HOUSING are free of scoring or cracks, as misalignment can damage the new cage.
