Overview
This genuine ZF 0735.330.925 angular ball bearing is a precision-engineered component designed specifically for the WG160 transmission series and its derivatives. Positioned within the main shaft assembly, this bearing manages combined axial and radial loads, ensuring smooth rotational motion and precise gear alignment under high torque conditions. The SKU 0735.330.925 is manufactured to OEM tolerances, guaranteeing a direct fit and long service life when paired with the 4656101037: TRANSMISSION HOUSING and the 4656201075: HOUS.FRONT SECT. Replacing a worn bearing with this OEM part restores drivetrain efficiency and prevents cascading damage to adjacent components.
Symptoms of Failure
- Whining or grinding noise during gear shifts: A failing angular ball bearing produces a distinct metallic whine or grinding sound, especially when the transmission is under load or during deceleration.
- Excessive axial shaft play: Wear in the bearing raceways allows the main shaft to move laterally, causing imprecise gear engagement and difficulty selecting gears.
- Oil contamination with metallic debris: As the bearing degrades, fine metal particles enter the transmission fluid, often visible during oil changes or as sludge on the 4656301016: SCREEN SHEET.
- Vibration through the gear lever or chassis: Unbalanced rotation from a damaged bearing transmits vibration throughout the driveline, worsening at higher RPMs.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 0735.330.925 |
| Type | Angular Contact Ball Bearing |
| Inner Diameter (d) | 35 mm |
| Outer Diameter (D) | 72 mm |
| Width (B) | 17 mm |
| Material | Chrome Steel (GCR15) with Polyamide Cage |
| Dynamic Load Rating (C) | 25.5 kN |
| Static Load Rating (C0) | 14.6 kN |
| Weight | 0.28 kg |
| OEM Reference | ZF 0735.330.925 |
Compatibility
This bearing is engineered for the ZF WG160 series and is also compatible with the WG 190, WG 191, WG 210, WG 211, and WG 230 transmission families. It directly replaces the original bearing in the main shaft support position. For proper installation, ensure the 4656201035: HOUSING REAR PART and the 4472239178: HOUSING REAR PART are free of scoring or wear. This bearing is not interchangeable with standard deep-groove ball bearings due to its specific contact angle.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4656101037 | TRANSMISSION HOUSING | Main structural casing for gear and shaft assembly |
| 4656201075 | HOUS.FRONT SECT | Front section housing for input shaft bearing support |
| 4656201035 | HOUSING REAR PART | Rear housing section for output shaft alignment |
| 4472239178 | HOUSING REAR PART | Alternate rear housing variant for specific WG models |
| 0631306816 | CYLINDRICAL PIN | Alignment pin for housing and bearing positioning |
| 4656301148 | FIXING PLATE | Retaining plate for axial bearing fixation |
| 0636100817 | CAP SCREW | M10 fastener for housing and plate assembly |
| 4656301016 | SCREEN SHEET | Fine mesh filter for oil circuit protection |
| 4656301017 | SCREEN SHEET | Alternate mesh filter for high-flow applications |
| 0636100803 | CAP SCREW | M8 fastener for screen sheet retention |
Frequently Asked Questions
Q: Can I use this bearing in a WG180 transmission?
A: The 0735.330.925 is not listed for WG180 models. It is designed for WG160 through WG230 series. Always verify your transmission’s serial number against the OEM parts catalog.
Q: How do I confirm the correct orientation during installation?
A: The angular contact bearing has a marked load direction. The thicker outer ring shoulder must face the axial load source (typically toward the gear). Refer to the ZF service manual for your specific WG model.
Q: Is this bearing supplied with a new seal or snap ring?
A: No. The bearing is supplied as a standalone component. You will need to reuse or replace the associated snap ring and seal separately. Check the condition of the 4656301148: FIXING PLATE during reassembly.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 0735.330.925 ANGULAR BALL BEARING – Bearing RFQ Support
PartsZF helps B2B buyers source ZF 0735.330.925 ANGULAR BALL BEARING with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This bearing page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 0735.330.925 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
- Documentation reference: 4657023003
- Documentation reference: 4657024110
- Documentation reference: 4657054061
- Documentation reference: 4657054086

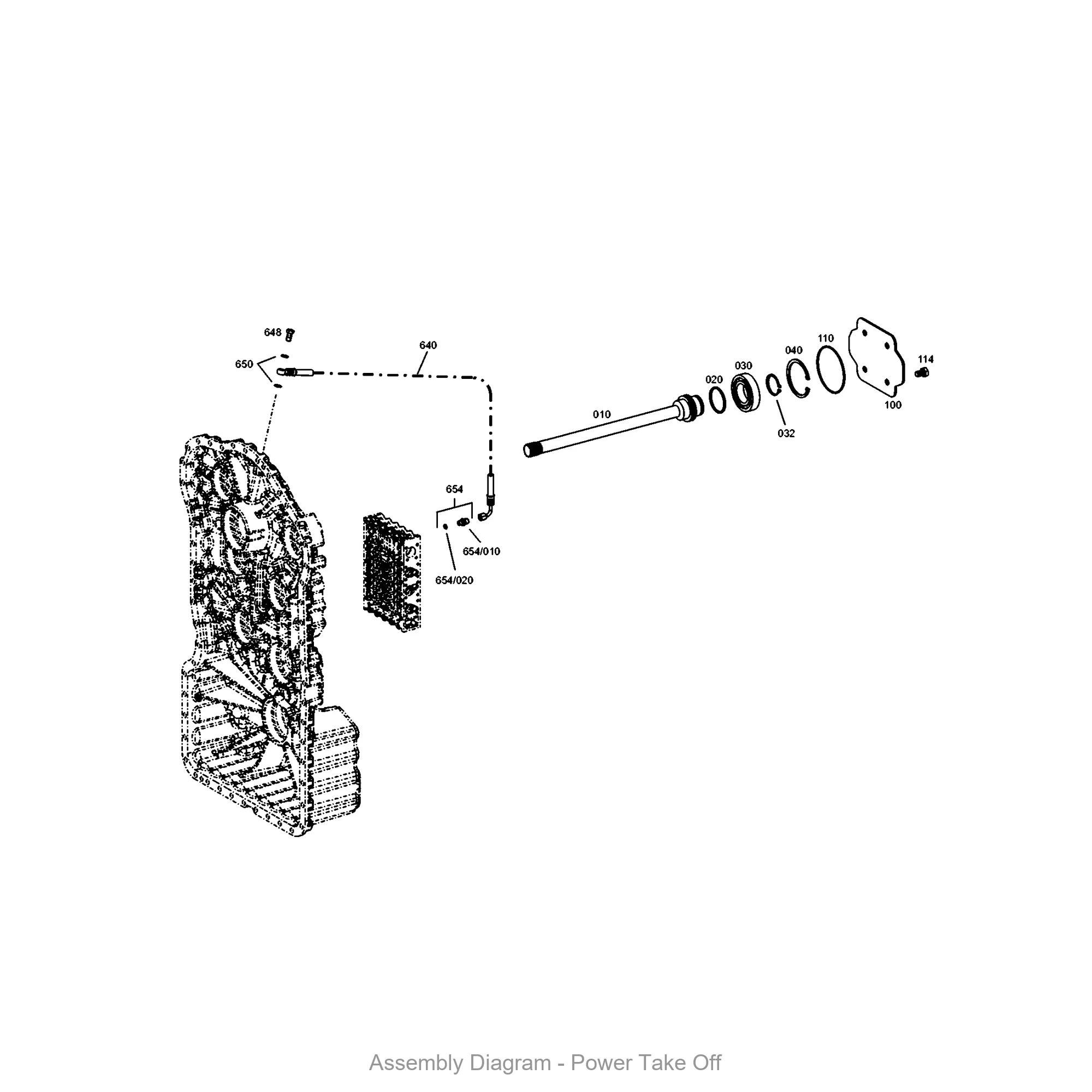

- Illustration section: POWER TAKE OFF
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 0735.330.925 |
|---|---|
| Normalized SKU | 0735330925 |
| Part name | ANGULAR BALL BEARING |
| Product category | bearing |
| Cross-reference support | Available for RFQ review |
Image and Documentation Notes
Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
