ZF 0744.105.020 THERMO-SCHALTER
ZF Part Number: 0744.105.020 (also written as 0744105020 / 0744.105.020 / 0744 105 020)
Compatible ZF Transmission Models
This thermo-schalter is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 3 WG 201
- ZF 4 WG 150
- ZF 4 WG 200(555)
- ZF 4 WG 65
- ZF 6 WG 100(500)
- ZF 6 WG 150
- ZF 6 WG 200(555/4)
- ZF 6 WG 200(555/5)
- ZF 6 WG 201
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Shift System | 260 | 1 |
| Transmission Housing | 060 | 1 |
| Transmission Housing | 120 | 1 |
| Transmission Housing | 160 | 1 |
Related Parts in Same Assembly
- 4616.101.094 — TRANSMISSION HOUSING (Qty: 1)
- 4616.101.416 — TRANSMISSION HOUSING (Qty: 1)
- 4616.102.049 — INPUT (Qty: 1)
- 4616.102.429 — INPUT (Qty: 1)
- 4616.103.047 — OUTPUT (Qty: 1)
- 4616.103.424 — OUTPUT (Qty: 1)
- 4616.104.004 — DIFFERENTIAL (Qty: 1)
- 4616.105.039 — OUTPUT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0744.105.020?
ZF 0744.105.020 is an OEM thermo-schalter produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 3 WG 201, 4 WG 150, 4 WG 200(555), 4 WG 65. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0744.105.020?
This thermo-schalter is found in 10 ZF transmission variants, including: 3 WG 200, 3 WG 201, 4 WG 150, 4 WG 200(555), 4 WG 65, 6 WG 100(500), 6 WG 150, 6 WG 200(555/4), 6 WG 200(555/5), 6 WG 201. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0744.105.020 installed in the transmission?
This thermo-schalter is located in the shift system, transmission housing area of the transmission. It appears in 27 different assembly configurations. In the service manual, look for position number 260 in the Shift System section.
How do I look up ZF part 0744.105.020?
This part can be found under several formats: 0744105020 / 0744.105.020 / 0744 105 020. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0744.105.020).
Where can I buy ZF 0744.105.020?
You can purchase genuine ZF 0744.105.020 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.
Exploded View / Assembly Diagram

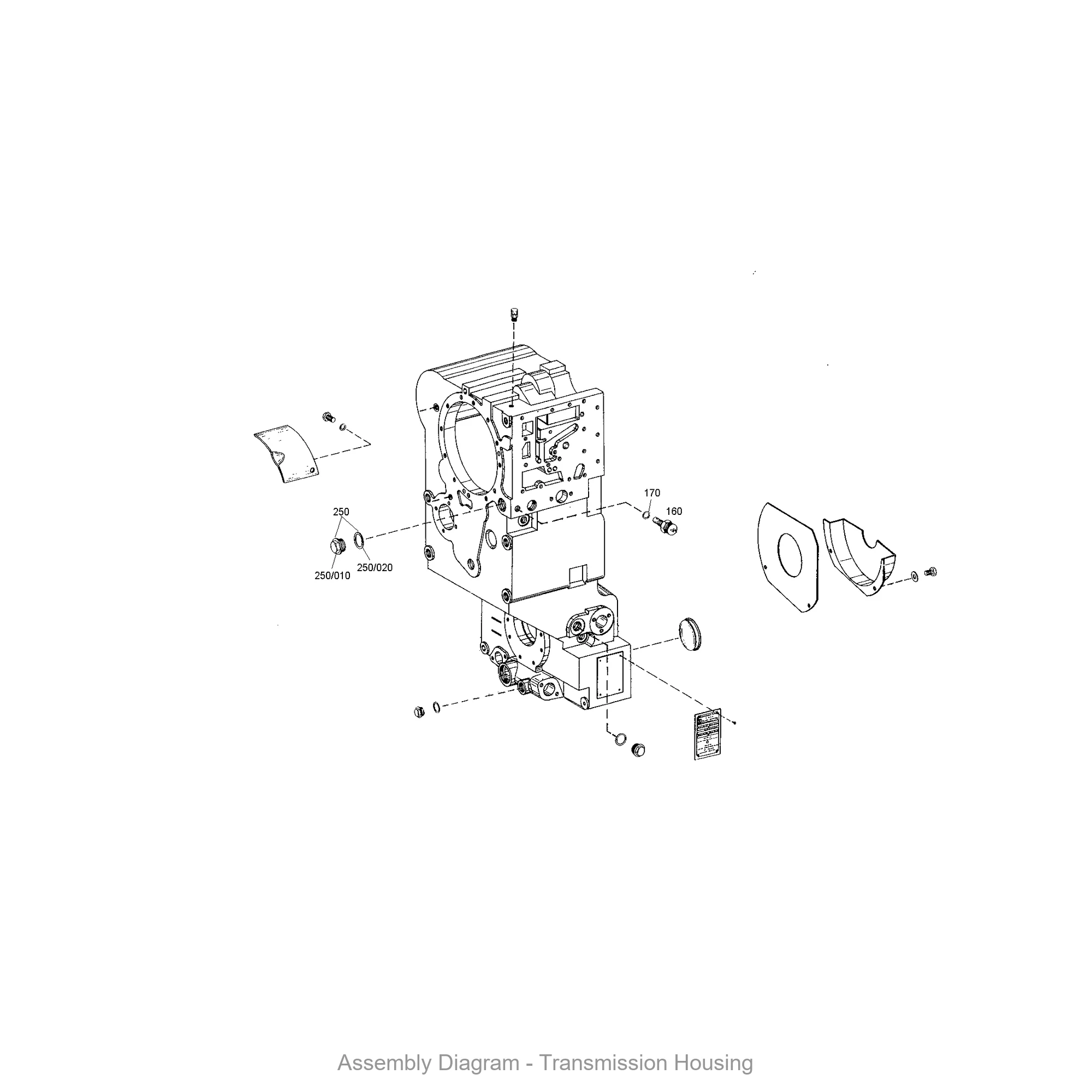

The diagram below shows where ZF 0744.105.020 is located within the transmission assembly.
