ZF 0750.106.026 CUP SPRING
ZF Part Number: 0750.106.026 (also written as 0750106026 / 0750.106.026 / 0750 106 026)
Compatible ZF Transmission Models
This cup spring is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 200(555/5)
- ZF 6 WG 200
- ZF 6 WG 200(500)
- ZF 6 WG 200(555)
- ZF 6 WG 200(555/4)
- ZF 6 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Converter | 170 | 1 |
| Converter | 32.170 | 1 |
Related Parts in Same Assembly
- 0501.317.159 — INDUCTIVE SENSOR (Qty: 1)
- 0750.131.053 — REPLACEMENT FILTER (Qty: 1)
- 4642.231.127 — OIL LEVEL TUBE (Qty: 1)
- 4644.221.200 — SUCTION TUBE (Qty: 1)
- 4644.301.346 — TRANSMISSION HOUSING (Qty: 1)
- 4644.302.245 — INPUT SHAFT (Qty: 1)
- 4644.303.566 — OUTPUT SHAFT (Qty: 1)
- 4644.305.023 — HOUSING (Qty: 2)
Frequently Asked Questions
What is ZF part number 0750.106.026?
ZF 0750.106.026 is an OEM cup spring produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 200(555/5), 6 WG 200, 6 WG 200(500), 6 WG 200(555). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0750.106.026?
This cup spring is found in 7 ZF transmission variants, including: 3 WG 200, 4 WG 200(555/5), 6 WG 200, 6 WG 200(500), 6 WG 200(555), 6 WG 200(555/4), 6 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0750.106.026 installed in the transmission?
This cup spring is located in the converter area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 170 in the Converter section.
How do I look up ZF part 0750.106.026?
This part can be found under several formats: 0750106026 / 0750.106.026 / 0750 106 026. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0750.106.026).
Where can I buy ZF 0750.106.026?
You can purchase genuine ZF 0750.106.026 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

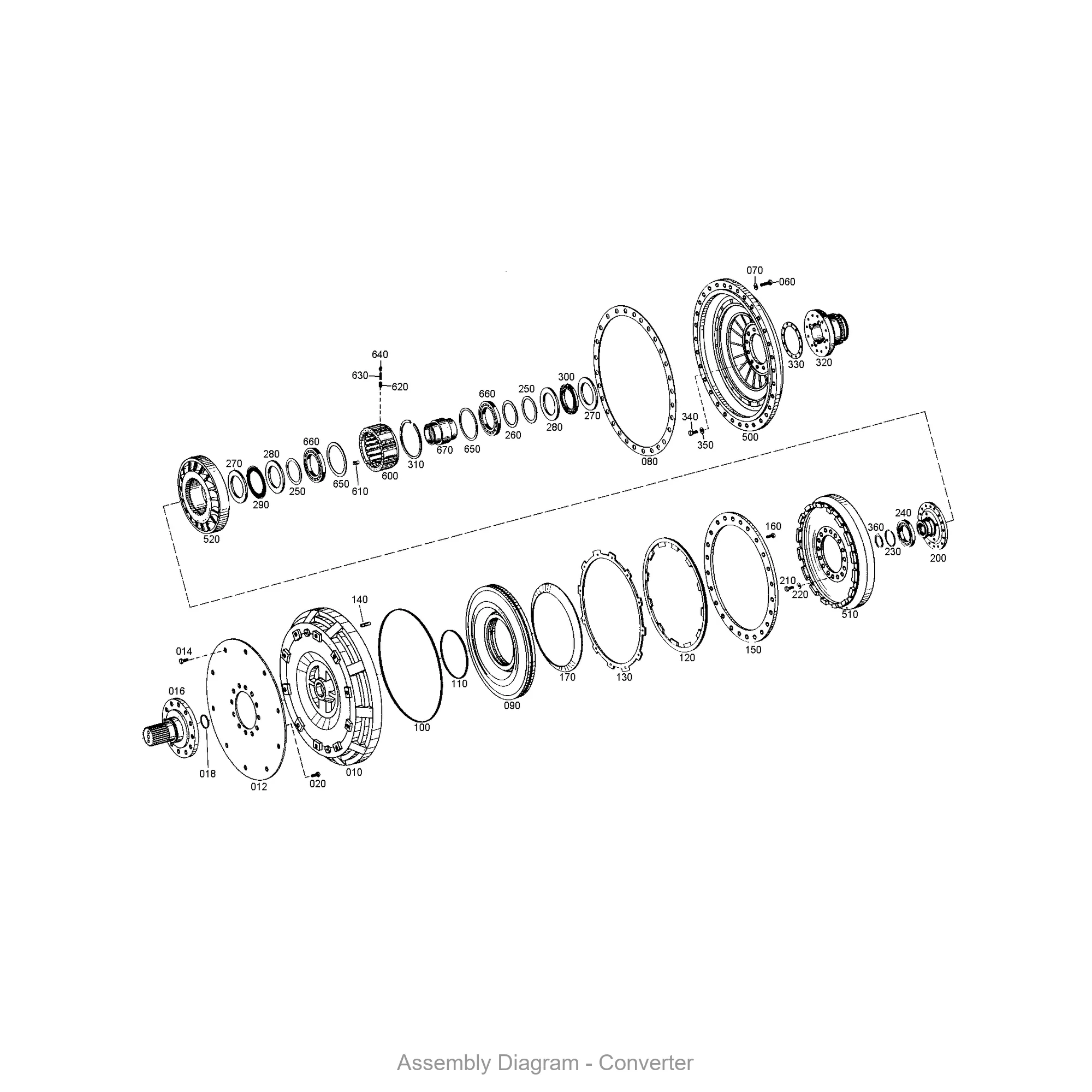

Exploded View / Assembly Diagram
The diagram below shows where ZF 0750.106.026 is located within the transmission assembly.
