ZF 0750.111.307 SHAFT SEAL
ZF Part Number: 0750.111.307 (also written as 0750111307 / 0750.111.307 / 0750 111 307)
OEM Cross Reference / Interchange Numbers
ZF 0750.111.307 (SHAFT SEAL) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运RZ | 860168654 | OEM Cross Ref |
| 柳工 | SP111960 | OEM Cross Ref |
This ZF part (0750.111.307) directly replaces the following OEM numbers: 徐工铲运RZ: 860168654; 柳工: SP111960. All listed cross-reference numbers are confirmed compatible with ZF 0750.111.307.
Compatible ZF Transmission Models
This shaft seal is used in the following ZF transmission models:
- ZF 4 WG 150
- ZF 6 WG 150
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Axle Disconnection | 040 | 1 |
| Axle Disconnection | 390 | 1 |
| Coupling | 250 | 1 |
| Disconnection | 240 | 1 |
| Disconnection | 314 | 2 |
| Output | 020 | 1 |
| Output | 03.180 | 1 |
| Output | 040 | 1 |
| Output | 080 | 1 |
| Output | 180 | 2 |
Related Parts in Same Assembly
- 0501.003.819 — BRAKE (Qty: 1)
- 4168.030.081 — CONVERTER (Qty: 1)
- 4642.221.149 — SUCTION TUBE (Qty: 1)
- 4642.301.208 — TRANSMISSION HOUSING (Qty: 1)
- 4642.302.161 — INPUT SHAFT (Qty: 1)
- 4642.303.002 — OUTPUT SHAFT (Qty: 1)
- 4642.306.276 — VALVE BLOCK (Qty: 1)
- 4642.306.324 — GASKET (Qty: 1)
Frequently Asked Questions
What is ZF part number 0750.111.307?
ZF 0750.111.307 is an OEM shaft seal produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 150, 6 WG 150. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0750.111.307?
This shaft seal is found in 2 ZF transmission variants, including: 4 WG 150, 6 WG 150. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0750.111.307 installed in the transmission?
This shaft seal is located in the disconnection, output area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 040 in the Axle Disconnection section.
How do I look up ZF part 0750.111.307?
This part can be found under several formats: 0750111307 / 0750.111.307 / 0750 111 307. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0750.111.307).
When should I replace ZF 0750.111.307?
Replace this seal during every transmission overhaul or if you notice oil leakage at the seal location. Seals are wear items and should not be reused after removal.
Can I reuse ZF 0750.111.307 after disassembly?
No. ZF recommends always installing new seals during reassembly. Reusing seals may result in leaks and premature failure.
Where can I buy ZF 0750.111.307?
You can purchase genuine ZF 0750.111.307 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

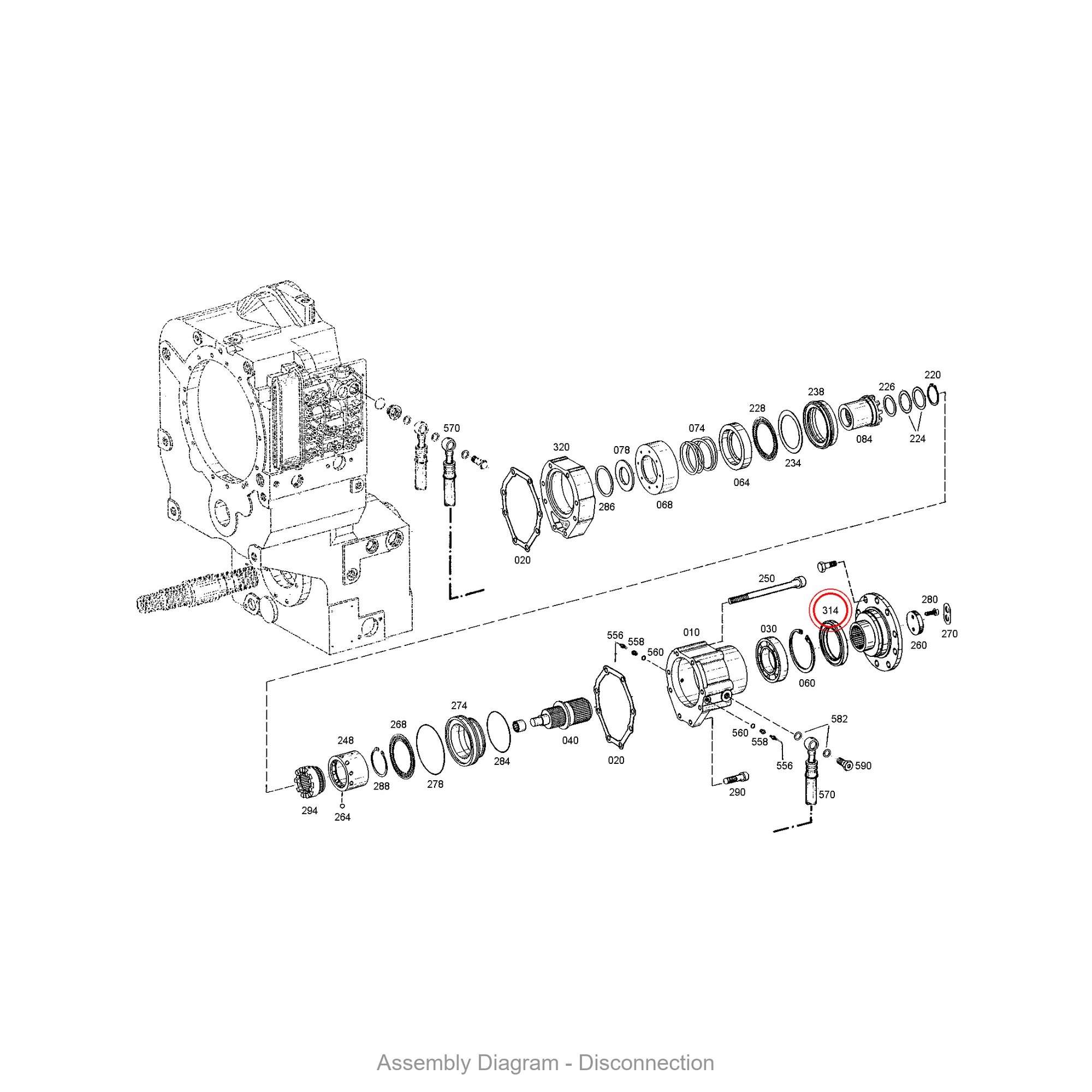

Exploded View / Assembly Diagram
The diagram below shows where ZF 0750.111.307 is located within the transmission assembly.
