Overview

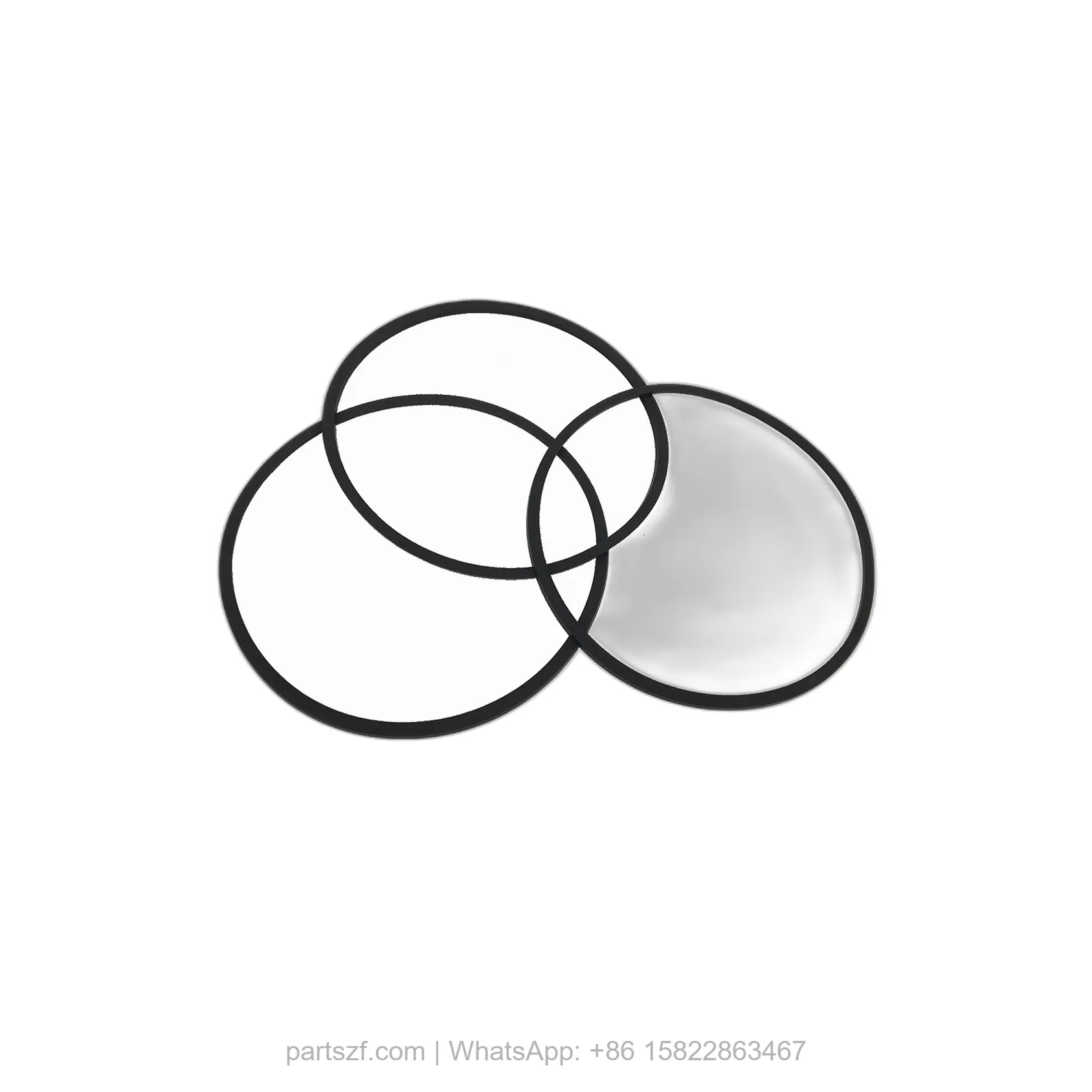

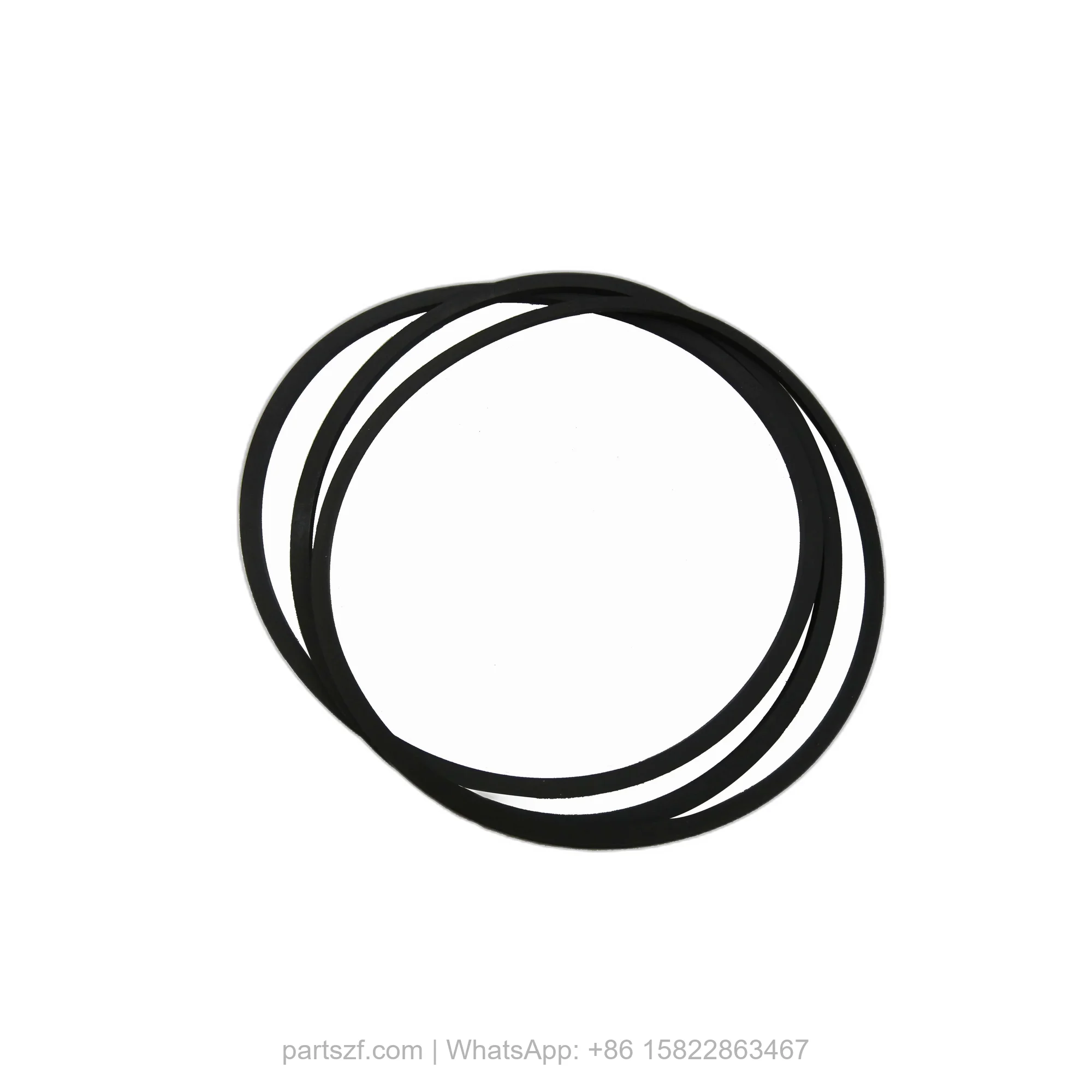

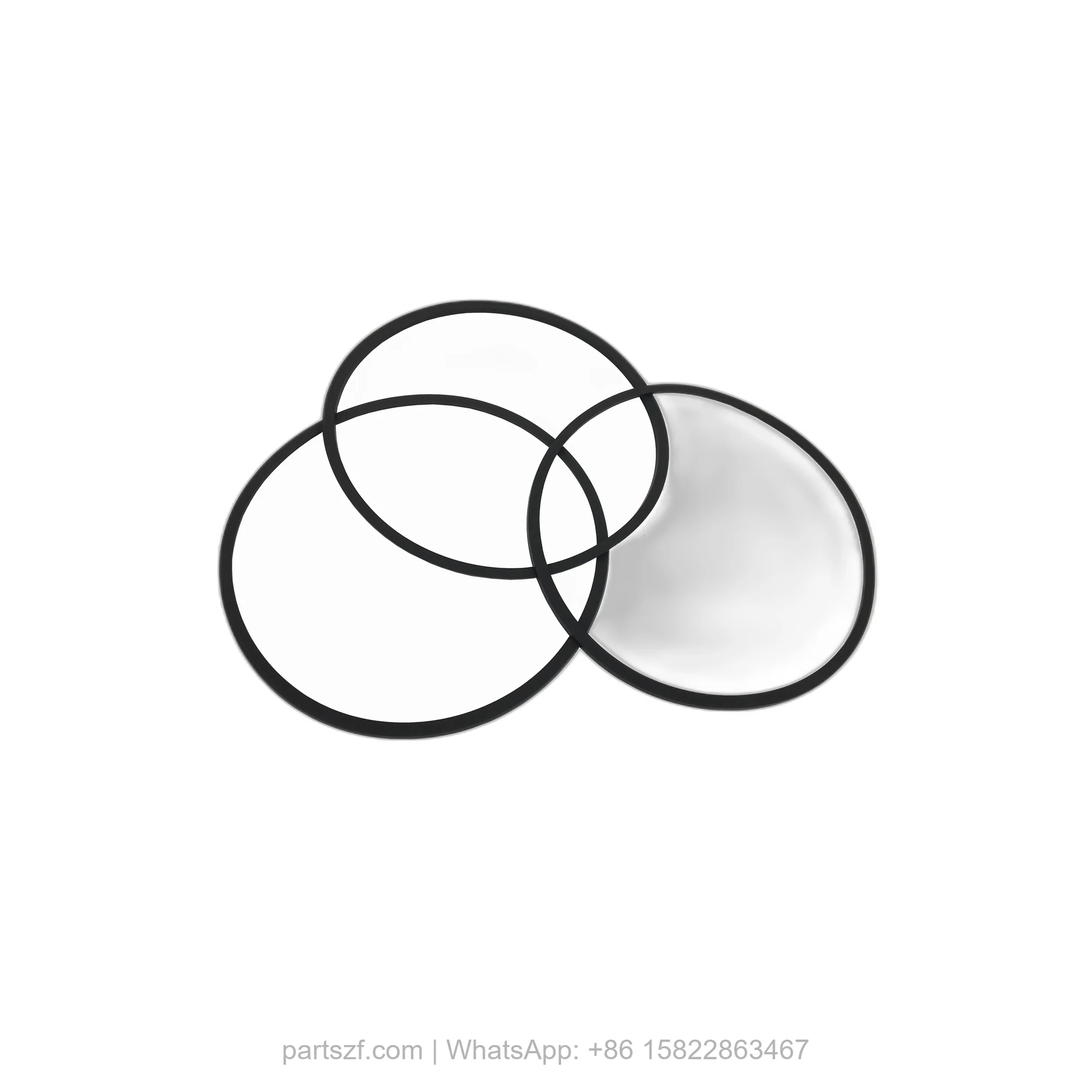

The ZF 0750.112.139 活塞密封圈 (piston sealing ring) is a critical OEM genuine component engineered to maintain hydraulic pressure within the clutch packs and valve bodies of heavy-duty construction machinery transmissions. This precision-molded seal sits directly on the piston assembly inside the transmission housing, creating a dynamic barrier that prevents pressurized transmission fluid from bypassing the piston during gear engagement. As an OEM part, SKU 0750.112.139 guarantees exact dimensional tolerances and material composition required for reliable sealing under extreme thermal and mechanical loads. Without this seal, the transmission cannot sustain the hydraulic clamping force necessary for torque transfer, making it a consumable item that directly impacts operational uptime.
Symptoms of Failure
When the ZF 0750.112.139 piston seal degrades, operators will notice distinct performance issues. The most common failure indicators include:
- External oil leaks around the transmission bell housing – Worn seals allow fluid to escape past the piston, leaving visible drips or puddles under the equipment.
- Delayed or harsh gear engagement – A failing seal cannot hold adequate hydraulic pressure, causing clutches to slip or engage with a jarring thud during shifts.
- Erratic transmission behavior under load – When the machine is working in high-torque conditions (e.g., digging or grading), the transmission may momentarily lose drive power due to internal pressure loss.
- Overheating transmission fluid – Internal leakage generates excessive heat from friction, often triggering warning lights or thermal alarms on the dashboard.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number / SKU | 0750.112.139 |
| Inner Diameter (ID) | 75.0 mm |
| Outer Diameter (OD) | 85.0 mm |
| Cross-Section Width | 5.0 mm |
| Material | Nitrile rubber (NBR) with PTFE anti-extrusion ring |
| Hardness (Shore A) | 85 ± 5 |
| Operating Temperature Range | -40°C to +120°C |
| Weight | 12 grams |
| OEM Reference | ZF 0750.112.139 (Genuine) |
Compatibility
This piston sealing ring is designed for use in several ZF transmission families commonly found in construction machinery. Based on the part type and dimensions, the 0750.112.139 seal is compatible with the following ZF models:
- ZF WG180 – Used in wheel loaders and graders
- ZF WG200 – Found in medium-duty excavators and dump trucks
- ZF 4WG-200 – Powers telehandlers and agricultural tractors
- ZF 5WG-210 – Installed in heavy-duty mining trucks and dozers
Always verify your transmission’s serial number against the ZF parts catalog before installation. Using non-OEM substitutes may lead to premature failure and void equipment warranties.
