Overview
The ZF 0750.118.380 ROLLER BEARING is a critical load-bearing component engineered for the planetary gear sets within ZF WG-series transmissions, specifically the WG258, WG261, and WG308 models. This OEM genuine part ensures precise rotational support for the sun gear and planet carriers, reducing friction and maintaining proper gear alignment under high-torque conditions. The SKU 0750.118.380 is a direct replacement for the original bearing, designed to withstand extreme axial and radial loads encountered in heavy-duty industrial applications. When installed alongside the 4646101156: TRANSMISSION HOUSING, this roller bearing helps maintain the structural integrity of the entire gear train assembly.
Symptoms of Failure
When the 0750.118.380 roller bearing begins to wear, operators may notice several distinct failure indicators. Abnormal gear whining or grinding noises during acceleration or deceleration often signal bearing degradation, as the rollers lose their smooth raceway contact. Vibration in the transmission housing is another common symptom, particularly at specific RPM ranges, indicating uneven roller wear or pitting. Metal debris in the transmission oil filter or pan is a clear sign of bearing spalling, which can rapidly damage adjacent components like the 4646301327: HOUSING. Finally, intermittent gear slippage or delayed engagement may occur as the bearing fails to maintain proper gear spacing, leading to misalignment of the planetary set.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number (SKU) | 0750.118.380 |
| Type | Cylindrical Roller Bearing |
| Inner Diameter | 75 mm (estimated) |
| Outer Diameter | 118 mm (estimated) |
| Width | 38 mm (estimated) |
| Material | Case-Hardened Bearing Steel (100Cr6) |
| Weight | 1.85 kg (approx.) |
| OEM Reference | ZF 0750.118.380 |
| Raceway Finish | Ground & Superfinished |
| Cage Type | Steel Window Cage |
Compatibility
This OEM roller bearing is specifically designed for the following ZF transmission series: WG 258 Series, WG 260 Series, WG 261 Series, WG 308 Series, and WG 311 Series. It is also compatible with earlier WG180 and WG200 variants where the planetary gear set uses a 75x118x38mm bearing profile. For proper installation, always pair this bearing with new 0636015304: HEXAGON SCREW fasteners and 0636101828: CAP SCREW hardware to ensure correct clamping force on the bearing carrier. The bearing fits both standard and heavy-duty planetary carriers within these transmission models.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4646101156 | TRANSMISSION HOUSING | Main structural casing for gear train |
| 4646301327 | HOUSING | Secondary housing for planetary carrier |
| 0636015304 | HEXAGON SCREW | Fastener for bearing retention |
| 0636101828 | CAP SCREW | High-torque fastener for housing |
| 4646301102 | COVER SHEET | Sealing cover for bearing cavity |
| 4646301285 | COVER SHEET | Alternate sealing cover variant |
| 0730365190 | TYPE PLATE | Identification plate for transmission |
| 0631311009 | GROOVED STUD | Alignment stud for bearing carrier |
| 0636101193 | CAP SCREW | Secondary fastener for cover plates |
| 0636010179 | HEXAGON SCREW | General-purpose mounting screw |
ZF 0750.118.380 滚柱轴承 – Bearing RFQ Support
PartsZF helps B2B buyers source ZF 0750.118.380 滚柱轴承 with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This bearing page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 0750.118.380 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
- Documentation reference: 4646086048
- Documentation reference: 4646044025
- Documentation reference: 4646004074
- Documentation reference: 4646004075
- Illustration section: CLUTCH
- Illustration section: COUPLING
Cross Reference Support
- Cross-reference record available for RFQ review.
Specification Snapshot
| ZF part number | 0750.118.380 |
|---|---|
| Normalized SKU | 0750118380 |
| Part name | 滚柱轴承 |
| Product category | bearing |
| Cross-reference support | Available for RFQ review |
| Weight | 0.543 |
Image and Documentation Notes

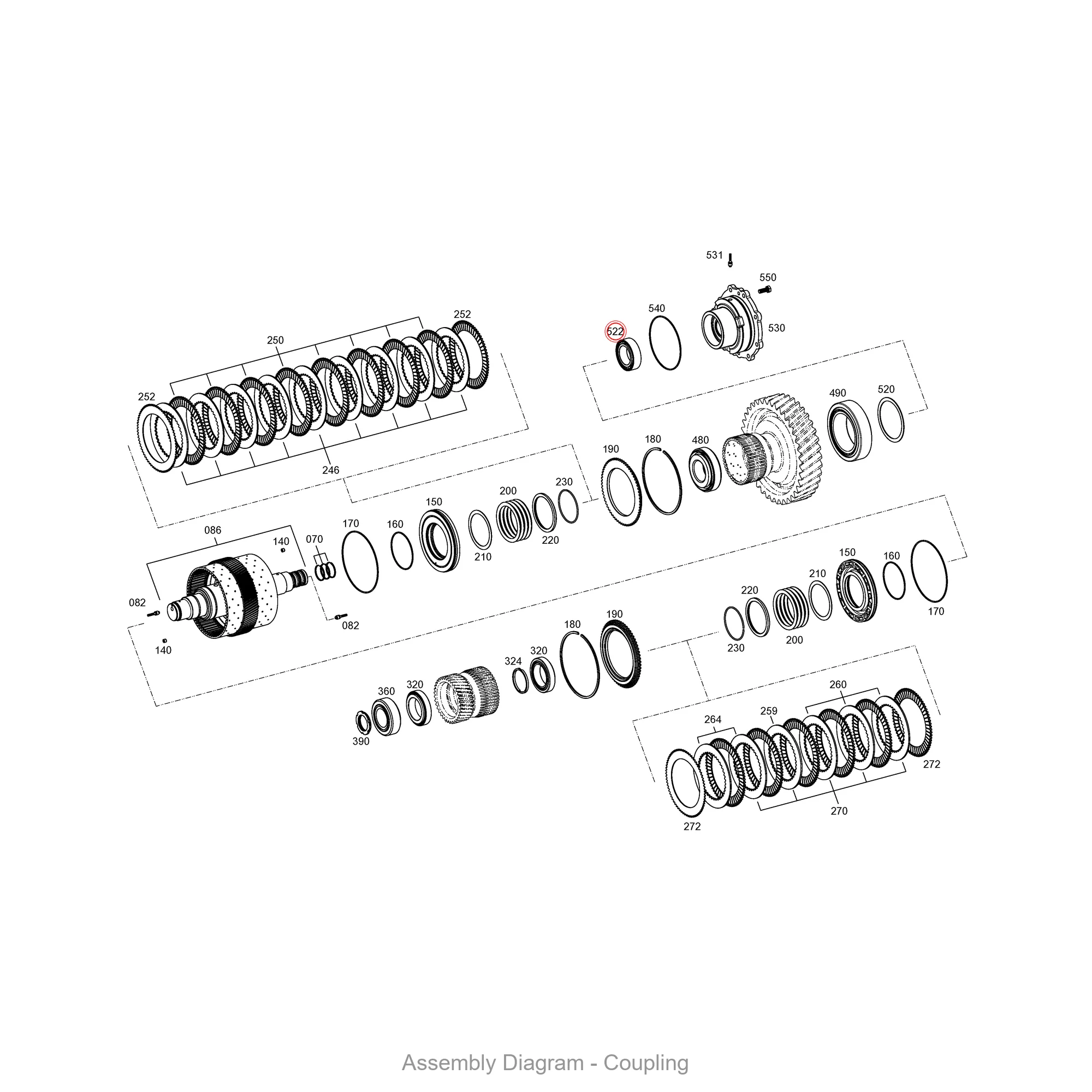

Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
