ZF 0750.147.036 HOSE PIPE
ZF Part Number: 0750.147.036 (also written as 0750147036 / 0750.147.036 / 0750 147 036)
OEM Cross Reference / Interchange Numbers
ZF 0750.147.036 (HOSE PIPE) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运RZ | 860324955 | OEM Cross Ref |
| 徐工铲运 | 860116208 | OEM Cross Ref |
| 山东临工 | 7200002238 | OEM Cross Ref |
| 柳工 | SP100278 | OEM Cross Ref |
This ZF part (0750.147.036) directly replaces the following OEM numbers: 徐工铲运RZ: 860324955; 徐工铲运: 860116208; 山东临工: 7200002238. All listed cross-reference numbers are confirmed compatible with ZF 0750.147.036.
Compatible ZF Transmission Models
This hose pipe is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 180
- ZF 4 WG 180(555)
- ZF 4 WG 200(555)
- ZF 4 WG 200(555/5)
- ZF 6 WG 150
- ZF 6 WG 180(500)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Kit Repair Kit | 120 | 1 |
| Oil Pipe | 100 | 1 |
| Oil Pipe | 110 | 1 |
| Oil Pipe | 120 | 1 |
| Oil Pipe | 130 | 1 |
| Oil Pipe | 140 | 1 |
| Oil Pipe | 21.120 | 1 |
| Oil Pipe | 500 | 1 |
Related Parts in Same Assembly
- 0501.003.819 — BRAKE (Qty: 1)
- 4168.030.113 — CONVERTER (Qty: 1)
- 4642.221.149 — SUCTION TUBE (Qty: 1)
- 4642.231.123 — OIL LEVEL TUBE (Qty: 1)
- 4642.301.182 — END COVER (Qty: 1)
- 4642.301.205 — TRANSMISSION HOUSING (Qty: 1)
- 4642.302.161 — INPUT SHAFT (Qty: 1)
- 4642.303.002 — OUTPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0750.147.036?
ZF 0750.147.036 is an OEM hose pipe produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 180, 4 WG 180(555), 4 WG 200(555), 4 WG 200(555/5). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0750.147.036?
This hose pipe is found in 7 ZF transmission variants, including: 3 WG 200, 4 WG 180, 4 WG 180(555), 4 WG 200(555), 4 WG 200(555/5), 6 WG 150, 6 WG 180(500). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0750.147.036 installed in the transmission?
This hose pipe is located in the kit repair kit, oil pipe area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 120 in the Kit Repair Kit section.
How do I look up ZF part 0750.147.036?
This part can be found under several formats: 0750147036 / 0750.147.036 / 0750 147 036. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0750.147.036).
Where can I buy ZF 0750.147.036?
You can purchase genuine ZF 0750.147.036 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

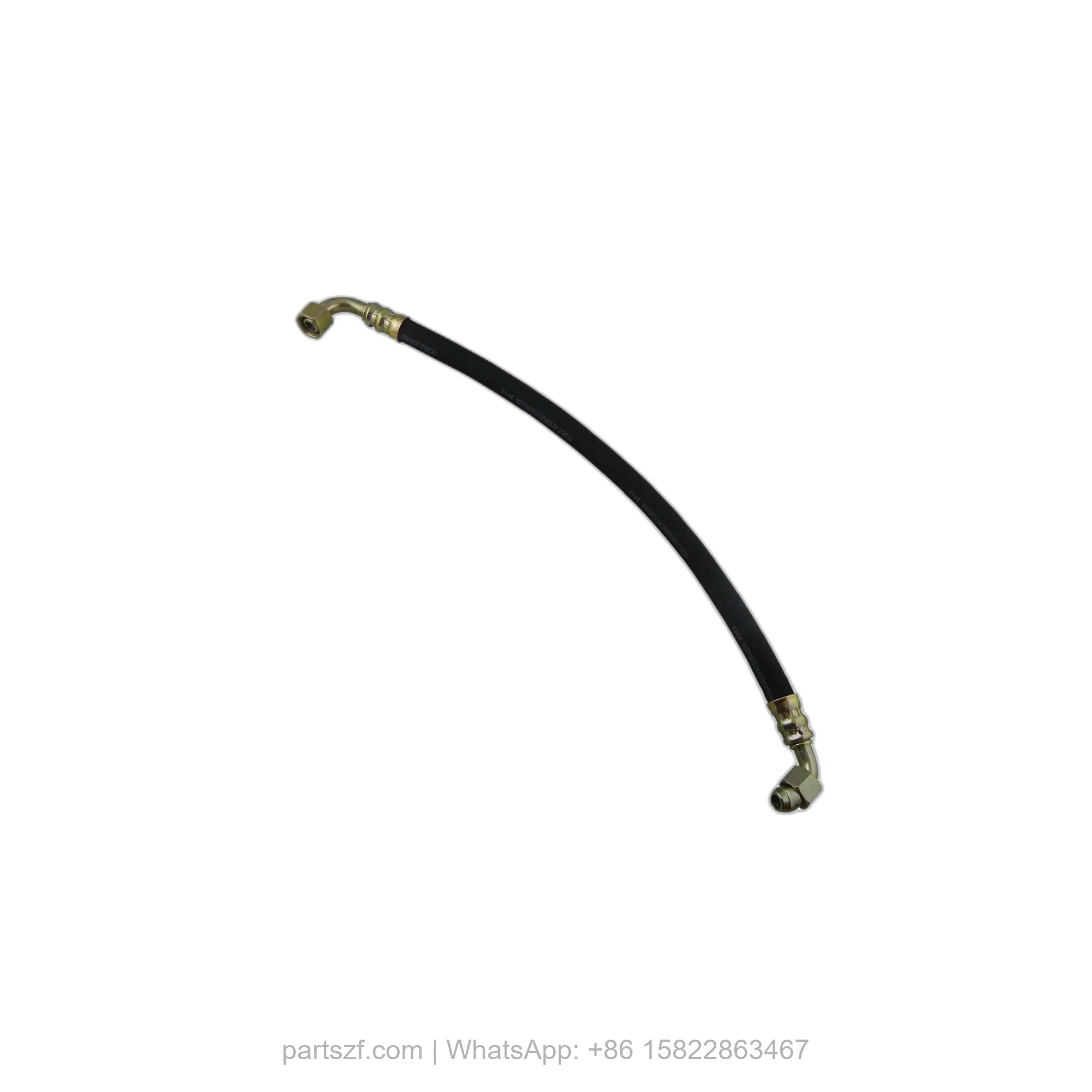

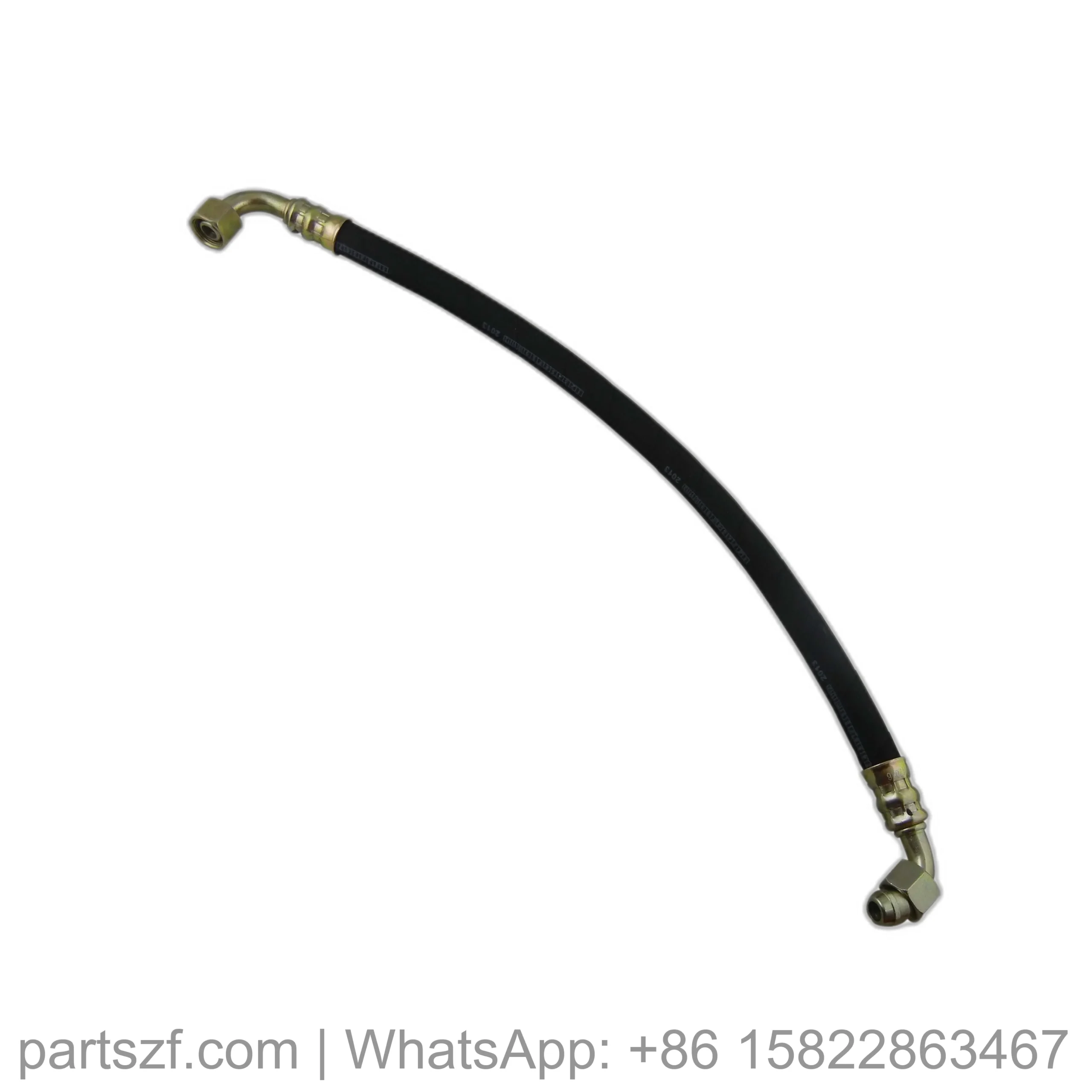

Product Photos

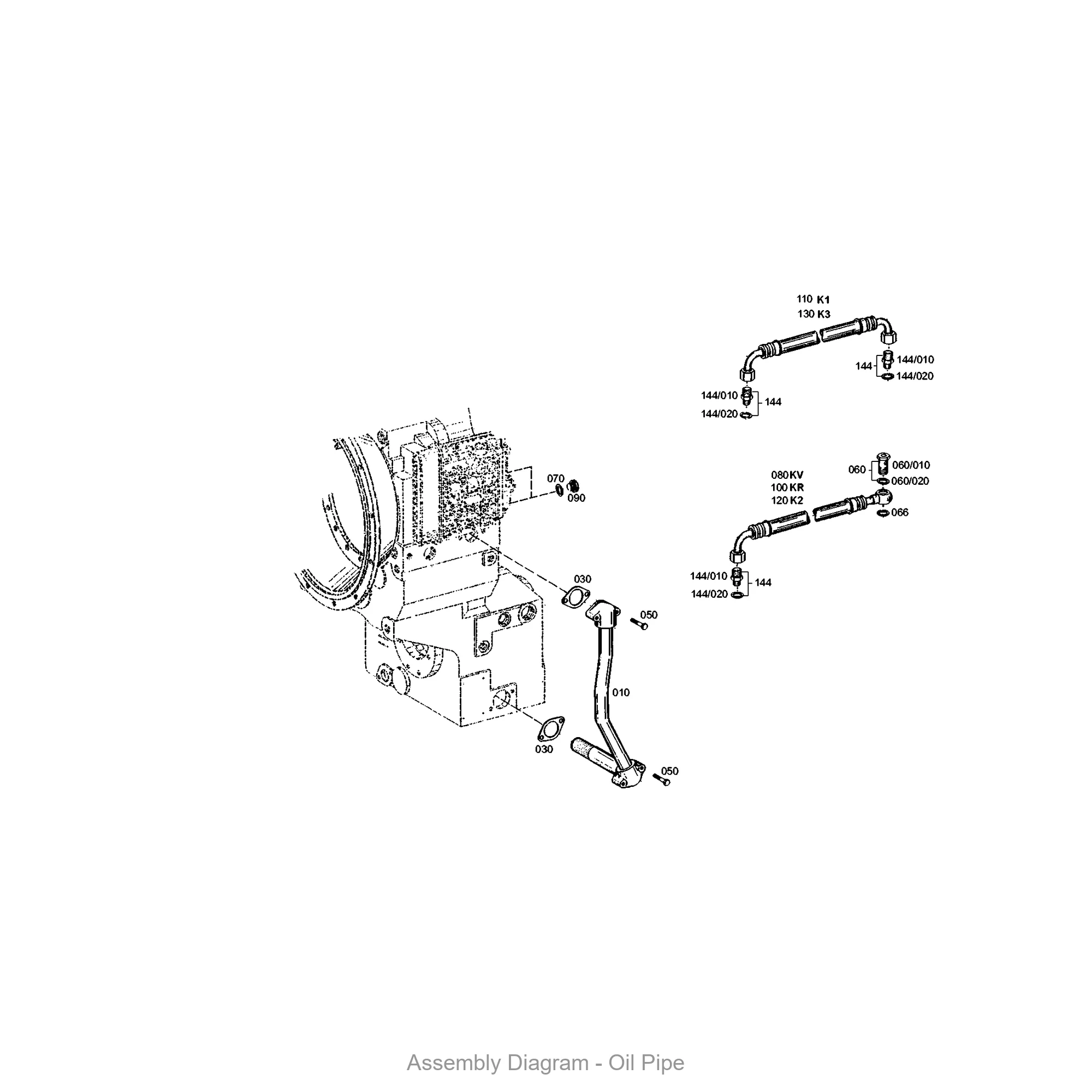

Exploded View / Assembly Diagram
The diagram below shows where ZF 0750.147.036 is located within the transmission assembly.
