ZF 0750.147.228 HOSE PIPE
ZF Part Number: 0750.147.228 (also written as 0750147228 / 0750.147.228 / 0750 147 228)
OEM Cross Reference / Interchange Numbers
ZF 0750.147.228 (HOSE PIPE) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运RZ | 860324823 | OEM Cross Ref |
| 徐工铲运RZ | 860324924 | OEM Cross Ref |
| 徐工铲运 | 860158843 | OEM Cross Ref |
| 徐工铲运 | 860116231 | OEM Cross Ref |
| 山东临工 | 7200001769 | OEM Cross Ref |
| 柳工 | SP100282 | OEM Cross Ref |
This ZF part (0750.147.228) directly replaces the following OEM numbers: 徐工铲运RZ: 860324823, 860324924; 徐工铲运: 860158843, 860116231; 山东临工: 7200001769. All listed cross-reference numbers are confirmed compatible with ZF 0750.147.228.
Compatible ZF Transmission Models
This hose pipe is used in the following ZF transmission models:
- ZF 4 WG 150
- ZF 4 WG 158
- ZF 4 WG 180(555)
- ZF 4 WG 200
- ZF 4 WG 200(555/5)
- ZF 4 WG 208
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Shift System | 730 | 1 |
Related Parts in Same Assembly
- 0501.003.819 — BRAKE (Qty: 1)
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 4168.030.110 — CONVERTER (Qty: 1)
- 4642.221.149 — SUCTION TUBE (Qty: 1)
- 4642.231.133 — OIL LEVEL TUBE (Qty: 1)
- 4642.301.182 — END COVER (Qty: 1)
- 4642.301.205 — TRANSMISSION HOUSING (Qty: 1)
- 4642.302.161 — INPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 0750.147.228?
ZF 0750.147.228 is an OEM hose pipe produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 150, 4 WG 158, 4 WG 180(555), 4 WG 200, 4 WG 200(555/5). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0750.147.228?
This hose pipe is found in 6 ZF transmission variants, including: 4 WG 150, 4 WG 158, 4 WG 180(555), 4 WG 200, 4 WG 200(555/5), 4 WG 208. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0750.147.228 installed in the transmission?
This hose pipe is located in the shift system area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 730 in the Shift System section.
How do I look up ZF part 0750.147.228?
This part can be found under several formats: 0750147228 / 0750.147.228 / 0750 147 228. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0750.147.228).
Where can I buy ZF 0750.147.228?
You can purchase genuine ZF 0750.147.228 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

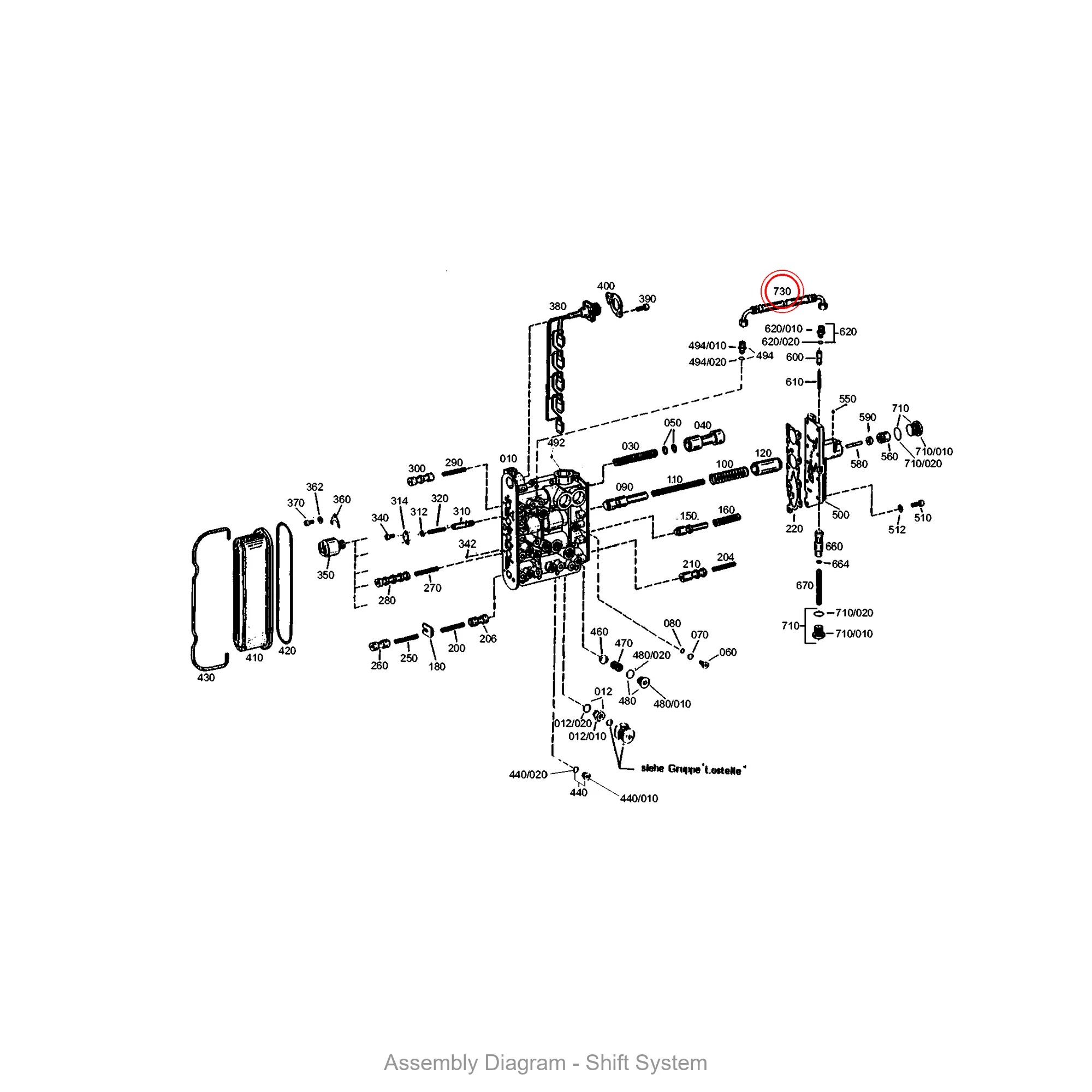

Exploded View / Assembly Diagram
The diagram below shows where ZF 0750.147.228 is located within the transmission assembly.
