Overview
The ZF 2093.104.410 MAIN SHAFT is a critical rotating component engineered for the WG100, WG130, and WG131 transmission series. This OEM genuine part serves as the primary torque-transfer interface between the input drive and the gear cluster, ensuring precise alignment and load distribution under heavy-duty cycles. The SKU 2093.104.410 is machined from high-tensile alloy steel to withstand torsional stress and maintain concentricity within the main housing. When installed, this shaft works in concert with the 2093109024: DIFFERENTIAL to synchronize power flow, and it interfaces directly with the 0750117075: TAPER ROLLER BEARING for stable axial support. Its position in the transmission makes it indispensable for smooth gear engagement and long-term drivetrain reliability.
Symptoms of Failure
When the ZF 2093.104.410 MAIN SHAFT begins to degrade, operators may notice distinct performance issues. 1. Driveline vibration under load — a worn shaft loses balance, causing noticeable shaking during acceleration. 2. Intermittent gear slipping — as the splines wear, the shaft fails to hold the gear cluster securely, leading to unexpected disengagement. 3. Metallic grinding noises from the transmission housing — this indicates surface fatigue or micro-cracking on the shaft journal. 4. Oil contamination with metallic particles — debris from a failing shaft can migrate into the lubricant, accelerating wear on adjacent components like the 2093209095: DIFFERENTIAL and the 2093309071: DIFF.HOUSING.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | 2093.104.410 |
| Overall Length | ~385 mm |
| Journal Diameter | ~45 mm |
| Spline Count | 24 (involute) |
| Material | Case-hardened alloy steel (20MnCr5 equivalent) |
| Weight | ~4.2 kg |
| OEM Reference | ZF 2093.104.410 |
Compatibility
This main shaft is specifically designed for the ZF WG100, WG130, and WG131 transmission models. It is also compatible with select variants of the WG180 and WG200 series where the shaft length and spline geometry match. Always verify the original transmission tag before ordering. For complete assembly integrity, pair this shaft with the 2093109024: DIFFERENTIAL and the 0750117075: TAPER ROLLER BEARING to ensure proper preload and alignment.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 2093109024 | DIFFERENTIAL | Distributes torque between axles |
| 0750117075 | TAPER ROLLER BEARING | Supports radial and axial loads on shaft |
| 2093209095 | DIFFERENTIAL | Secondary torque distribution unit |
| 2093309071 | DIFF.HOUSING | Encloses differential gears |
| 0631100223 | SPRING PIN | Secures shaft alignment |
| 0730300820 | THRUST WASHER | Reduces axial friction |
| 4482360002 | AXLE BEVEL GEAR | Transfers power to axle shafts |
| 2097309085 | DIFFERENTIAL AXLE | Connects differential to wheels |
| 5838300811 | THRUST WASHER | Controls gear end-play |
| 4482360001 | DIFFERENTIAL BEVEL GEAR | Engages with ring gear for torque split |
Frequently Asked Questions
Q: Can the ZF 2093.104.410 MAIN SHAFT be used in a WG200 transmission without modification?
A: The WG200 series may accept this shaft only if the spline count and overall length match your specific transmission variant. Always cross-reference your original part number before installation.
Q: What tools are required to replace the main shaft?
A: Replacement typically requires a bearing puller, torque wrench, and a press for the taper roller bearing. We recommend replacing the 0750117075: TAPER ROLLER BEARING simultaneously to prevent premature wear.
Q: How can I confirm the shaft is genuine OEM?
A: Genuine ZF parts feature laser-etched part numbers and a consistent surface finish. The SKU 2093.104.410 should match exactly with no suffixes or alterations.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 2093.104.410 MAIN SHAFT – Shaft RFQ Support
PartsZF helps B2B buyers source ZF 2093.104.410 MAIN SHAFT with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This shaft page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 2093.104.410 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
- Illustration section: T 7226 L
- Illustration section: T 7224 L
- Illustration section: T 7227 L
- Illustration section: T 7226
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 2093.104.410 |
|---|---|
| Normalized SKU | 2093104410 |
| Part name | MAIN SHAFT |
| Product category | shaft |
| Cross-reference support | Available for RFQ review |
Image and Documentation Notes

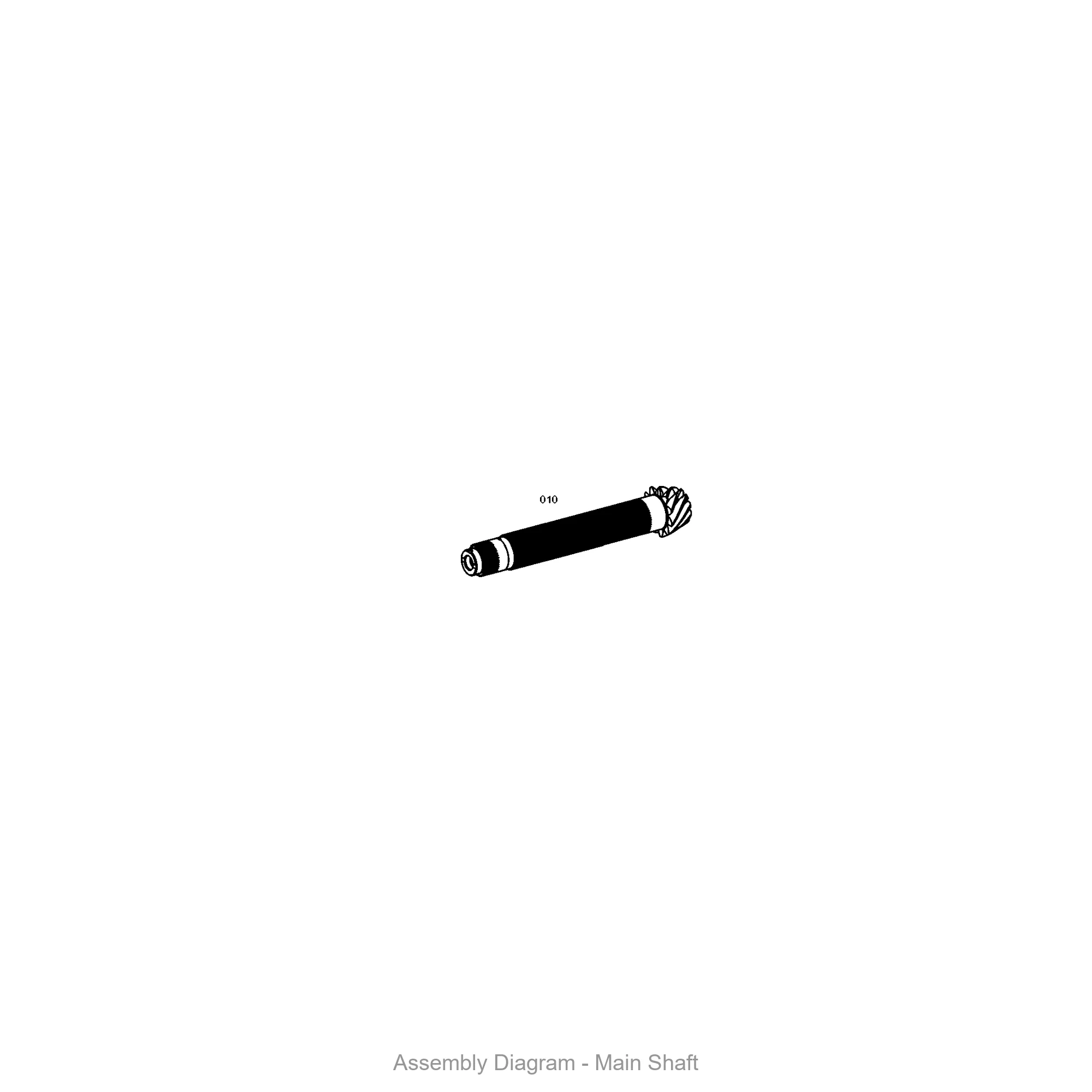

Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
Related Parts
- ZF 4646.302.141 INPUT SHAFT
- ZF 4646.323.010 OUTPUT SHAFT
- ZF 4646.304.069 OUTPUT SHAFT
- ZF 4646.304.065 QUILL SHAFT
- ZF 4657.354.010 INPUT SHAFT
