Overview
The ZF 2093.110.024 P.T.O. SHAFT is a critical power take-off component engineered for the WG100, WG130, and WG131 transmission series. This OEM genuine part transfers rotational energy from the transmission’s internal gearing to auxiliary hydraulic pumps or driven equipment. Positioned within the rear housing assembly, the shaft interfaces directly with the 2093109013: DIFFERENTIAL to ensure seamless torque delivery. The SKU 2093.110.024 is precision-machined to OEM tolerances, guaranteeing a direct fit without modification. Its splined design reduces backlash and maintains consistent engagement under heavy load cycles, making it indispensable for refuse trucks, fire apparatus, and industrial drivetrains.
Symptoms of Failure
- Intermittent PTO engagement failure – When the shaft splines wear, the power take-off may fail to lock or disengage, causing operational delays and potential damage to the 2093209096: DIFFERENTIAL.
- Metallic grinding noise from transmission housing – Worn bearing surfaces on the 2093.110.024 shaft produce a distinct grinding sound during PTO activation, often accompanied by vibration.
- Hydraulic system pressure loss – A failing shaft cannot maintain proper pump speed, leading to reduced hydraulic flow and sluggish equipment response.
- Oil seepage near the PTO mounting flange – Excessive shaft play degrades the seal surface, allowing transmission fluid to escape and contaminate the 2093309073: DIFF.HOUSING.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | 2093.110.024 |
| Overall Length | 245 mm (estimated) |
| Spline Diameter | 28 mm (10-tooth, involute) |
| Material | Case-hardened alloy steel (20MnCr5) |
| Weight | 1.8 kg (4.0 lbs) |
| OEM Reference | ZF 2093.110.024 |
| Surface Treatment | Black oxide / phosphate coating |
| Hardness | 58–62 HRC (core) |
Compatibility
This P.T.O. shaft is specifically engineered for ZF WG-series transmissions. It is a direct replacement for the following models: WG100, WG130, and WG131. The shaft also fits select variants of the WG180 and WG200 series when used with the correct 0750117075: TAPER ROLLER BEARING adapter. Always verify the spline count and housing depth before installation. For mixed-model fleets, cross-reference the OEM part number with your transmission’s serial plate to ensure compatibility with the 2093109013: DIFFERENTIAL assembly.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 2093109013 | DIFFERENTIAL | Distributes torque to axle shafts |
| 0750117075 | TAPER ROLLER BEARING | Supports shaft radial loads |
| 2093209096 | DIFFERENTIAL | Secondary torque split unit |
| 2093309073 | DIFF.HOUSING | Encloses differential gears |
| 0631100223 | SPRING PIN | Secures shaft alignment |
| 0730300820 | THRUST WASHER | Controls axial clearance |
| 4482360002 | AXLE BEVEL GEAR | Transfers power to wheels |
| 2097309085 | DIFFERENTIAL AXLE | Connects differential to hub |
| 5838300811 | THRUST WASHER | Reduces friction on gear faces |
| 4482360001 | DIFFERENTIAL BEVEL GEAR | Meshes with ring gear |
Frequently Asked Questions
Q: Can the ZF 2093.110.024 shaft be used in a WG180 transmission without modification?
A: While the shaft is primarily designed for WG100/WG130/WG131, it can fit WG180 models if paired with the correct 0750117075: TAPER ROLLER BEARING. Always measure the housing depth and spline engagement before installation.
Q: What causes premature wear on this PTO shaft?
A: Common causes include misaligned pump mounts, contaminated transmission fluid, or a failing 2093309073: DIFF.HOUSING that allows debris into the shaft area. Regular inspection of the 0631100223: SPRING PIN is also recommended.
Q: Is the 2093.110.024 shaft sold with bearings or seals?
A: No, this listing is for the shaft only. For a complete rebuild, order the 0730300820: THRUST WASHER and 5838300811: THRUST WASHER separately to ensure proper axial play.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 2093.110.024 P.T.O. SHAFT – Shaft RFQ Support
PartsZF helps B2B buyers source ZF 2093.110.024 P.T.O. SHAFT with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This shaft page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 2093.110.024 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context

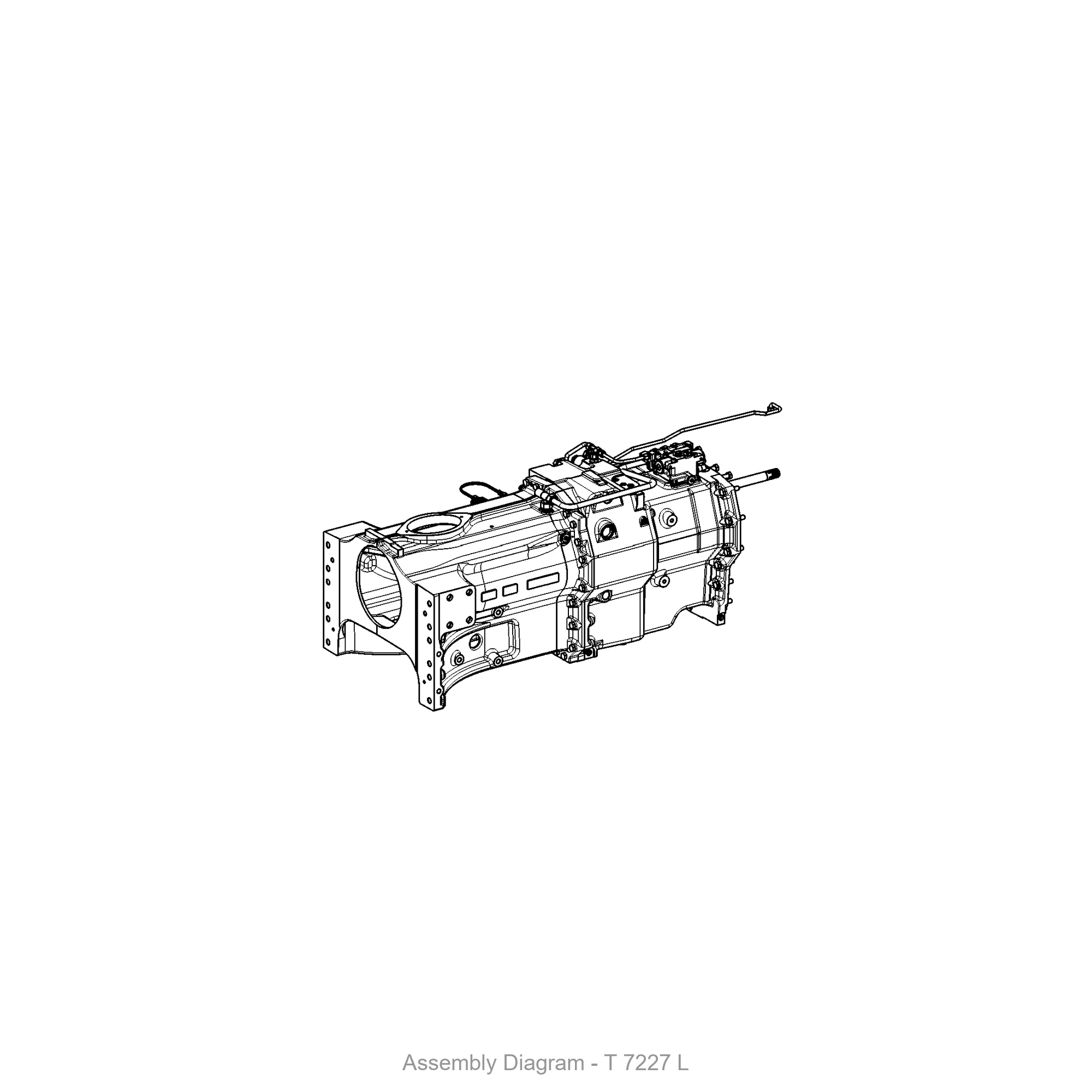

- Illustration section: T 7227 L
