Overview

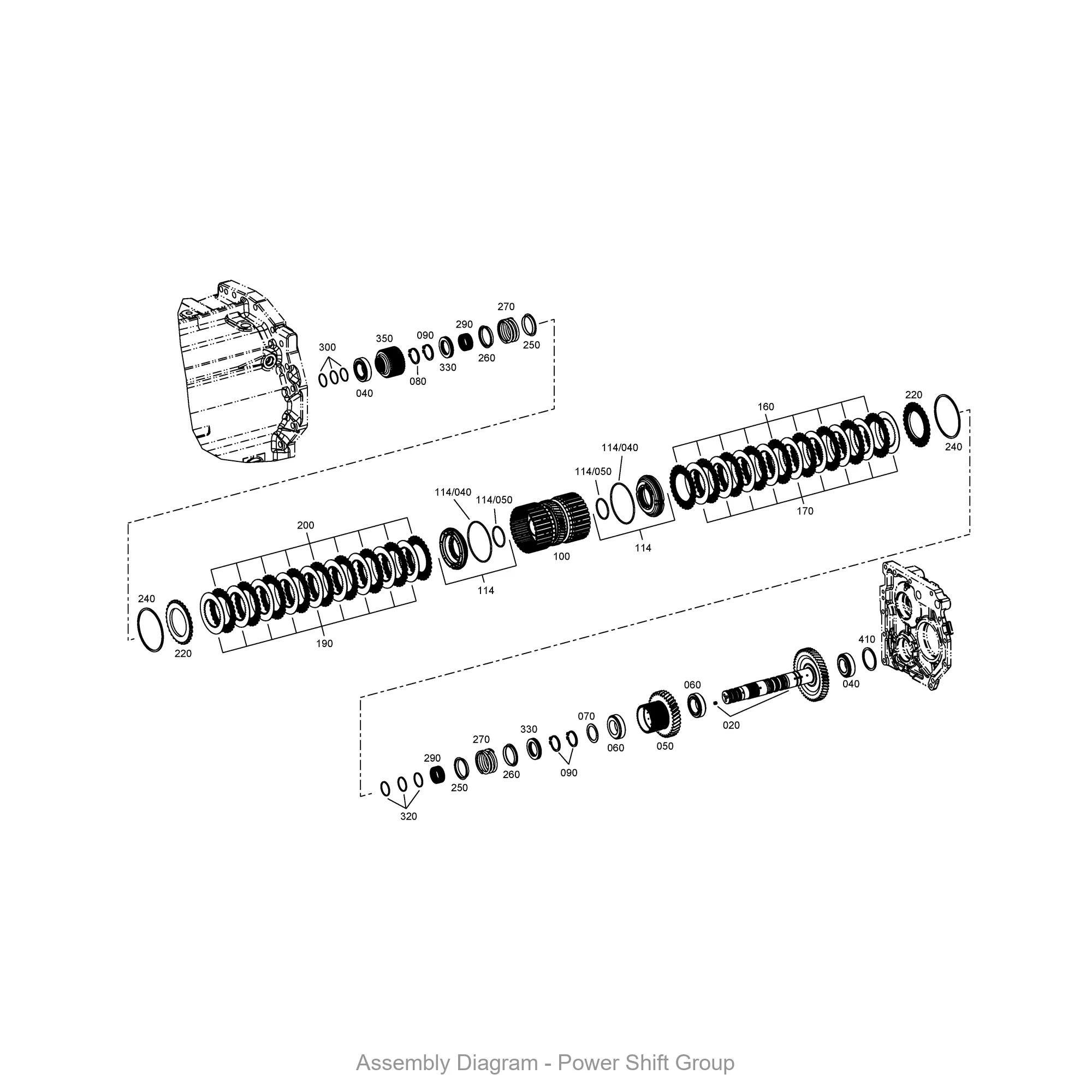

The ZF 2093.159.037 POWER-SHIFT GROUP is a critical OEM genuine assembly designed to manage hydraulic clutch engagement and power distribution within heavy-duty ZF transmissions. Positioned as the central hydraulic control unit, this power-shift group directs oil flow to specific clutch packs, enabling seamless gear changes under load. The SKU 2093.159.037 ensures precise shift timing and torque handling in demanding construction machinery applications. This component works in concert with the 2093101054: HOUSING and the 2093301072: TRANSMISSION HOUSING to form a sealed, high-pressure circuit that withstands extreme operational stress.
Symptoms of Failure
- Erratic gear engagement under load: When the power-shift group wears, operators may experience delayed or harsh shifting, particularly when climbing grades or carrying heavy loads. This is a common “ZF transmission slipping under load” symptom.
- Internal hydraulic pressure loss: Worn seals or valve bores within the 2093.159.037 assembly cause gradual pressure drops, leading to “transmission overheating in construction equipment” as clutches slip and generate excess heat.
- Oil contamination from debris: As internal components degrade, metallic particles can enter the hydraulic circuit, causing “ZF transmission filter clogging frequently” and accelerated wear on downstream parts like the 0501209878: TAPPET SWITCH.
- Audible whining or grinding noises: A failing power-shift group often produces high-pitched sounds during neutral-to-drive shifts, indicating “transmission pump cavitation noise” from restricted oil flow.
Technical Specifications
| Parameter | Value |
|---|---|
| OEM Part Number | 2093.159.037 |
| Assembly Type | Power-Shift Group (Hydraulic Control) |
| Material | High-strength aluminum alloy with hardened steel spools |
| Weight (estimated) | 4.2 kg (9.3 lbs) |
| Dimensions (L x W x H) | 280 mm x 140 mm x 110 mm |
| Operating Pressure Range | 12–18 bar (174–261 psi) |
| OEM Reference | ZF 2093.159.037 |
| Seal Type | Nitrile rubber (NBR) O-rings |
Compatibility
This power-shift group is engineered for ZF’s WG series powershift transmissions commonly found in wheel loaders, graders, and telehandlers. It is directly compatible with ZF WG180, WG200, and WG210 transmission models. The assembly interfaces with the 2093298128: TRANSMISSION HOUSING to ensure correct alignment of valve spools. For optimal performance, always pair this unit with the appropriate 0634304731: O-RING and 4475280150: SCREW PLUG to prevent external leaks.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 2093101054 | HOUSING | Encloses and supports the power-shift valve assembly |
| 2093301072 | TRANSMISSION HOUSING | Main structural casing for gear and clutch packs |
| 2093298128 | TRANSMISSION HOUSING | Secondary housing for hydraulic control channels |
| 0501209878 | TAPPET SWITCH | Monitors clutch piston position for shift timing |
| 0501311096 | PROTECTING SLEEVE | Shields wiring harness from chafing near valve body |
| 0730365092 | TYPE PLATE | Provides transmission model and serial number identification |
| 0666690171 | ADHESIVE | Secures type plate to transmission housing |
| 4475280150 | SCREW PLUG | Seals hydraulic test ports and drain holes |
| 0634304731 | O-RING | Provides static seal between housing and valve cover |
| 0637510223 | SCREW PLUG | Magnetic plug for capturing ferrous wear debris |
Frequently Asked Questions
Q: Can the ZF 2093.159.037 be rebuilt, or must it be replaced as a complete unit?
A: While individual seals and spools can technically be serviced, ZF recommends replacing the entire power-shift group as an OEM assembly to ensure precise hydraulic tolerances. Reusing worn valve bodies often leads to recurrent “transmission hunting for gears” issues.
Q: How do I verify that this part fits my ZF WG200 transmission?
A: Check the transmission serial number plate (often the 0730365092: TYPE PLATE). The 2093.159.037 is standard on WG200 units built after 2010. If your housing uses a different bolt pattern, you may need the 2093101054: HOUSING adapter kit.
Q: What torque specification should I use for the mounting bolts?
A: ZF specifies 45 Nm (33 ft-lbs) for the M8 bolts securing this power-shift group to the transmission housing. Always use new 0634304731: O-RING seals during installation to prevent “ZF transmission fluid leak at valve body” complaints.
