Overview
This OEM genuine ZF 2093.303.086 GEAR is a critical component engineered for the WG100, WG130, and WG131 transmission series. Positioned within the final drive assembly, this gear directly transfers torque from the differential to the axle shafts, ensuring smooth power delivery under heavy loads. The SKU 2093.303.086 is precision-machined to ZF’s exacting tolerances, making it a direct replacement for worn or damaged gears. When paired with a properly functioning DIFFERENTIAL, this gear maintains optimal drivetrain alignment and reduces parasitic power loss.
Symptoms of Failure
- Whining or howling noise during acceleration: Worn gear teeth cause uneven contact patterns, producing a distinct high-pitched sound that intensifies under load.
- Vibration in the driveline at highway speeds: A damaged 2093.303.086 gear creates rotational imbalance, felt as a shudder through the chassis or steering wheel.
- Metal debris in transmission fluid: Flaking or chipped gear teeth contaminate the oil, often visible as glitter-like particles during fluid changes.
- Intermittent loss of power to wheels: Severe wear can cause the gear to skip teeth, resulting in sudden torque interruptions during gear engagement.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 2093.303.086 |
| Material | Case-hardened alloy steel (20MnCr5) |
| Weight | 2.85 kg (6.28 lbs) |
| Outside Diameter | 148.5 mm |
| Number of Teeth | 37 |
| OEM Reference | ZF 2093.303.086 |
| Hardness | 58-62 HRC |
Compatibility
This gear is specifically designed for the ZF WG100, WG130, and WG131 transmissions. It also fits select variants of the WG180 and WG200 series when used with the correct DIFFERENTIAL HOUSING. For proper installation, always inspect the mating TAPER ROLLER BEARING and the DIFFERENTIAL assembly for wear before reassembly.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 5838109012 | DIFFERENTIAL | Distributes torque between left and right wheels |
| 0750117075 | TAPER ROLLER BEARING | Supports gear shaft radial and axial loads |
| 2093209023 | DIFFERENTIAL | Secondary differential for multi-axle configurations |
| 5838300626 | DIFFERENTIAL HOUSING | Encloses and protects differential gears |
| 0631329088 | SPRING PIN | Secures gear alignment during assembly |
| 5838300811 | THRUST WASHER | Reduces axial friction between rotating parts |
| 5838300721 | AXLE BEVEL GEAR | Transfers power from differential to axle shaft |
| 5838300633 | AXLE | Transmits rotational force to wheel hubs |
| 5838300753 | THRUST WASHER | Controls end-play in gear stack |
| 5838300818 | THRUST WASHER | Prevents metal-to-metal contact under load |
Frequently Asked Questions
Q: Can I install the 2093.303.086 gear without replacing the taper roller bearing?
A: It is strongly recommended to replace the TAPER ROLLER BEARING simultaneously, as worn bearings accelerate gear tooth wear and cause misalignment.
Q: How do I confirm this gear fits my WG130 transmission?
A: Verify your transmission’s serial number against ZF’s parts catalog. The 2093.303.086 gear is compatible with WG130 units built after 2012, but always cross-check with the differential housing part number.
Q: What torque specification is required for the retaining nut?
A: The retaining nut should be torqued to 280 Nm (206 ft-lbs) for WG100/WG130 models. Always use a new spring pin (0631329088) to lock the nut after tightening.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 2093.303.086 GEAR – Gear RFQ Support
PartsZF helps B2B buyers source ZF 2093.303.086 GEAR with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This gear page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 2093.303.086 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context

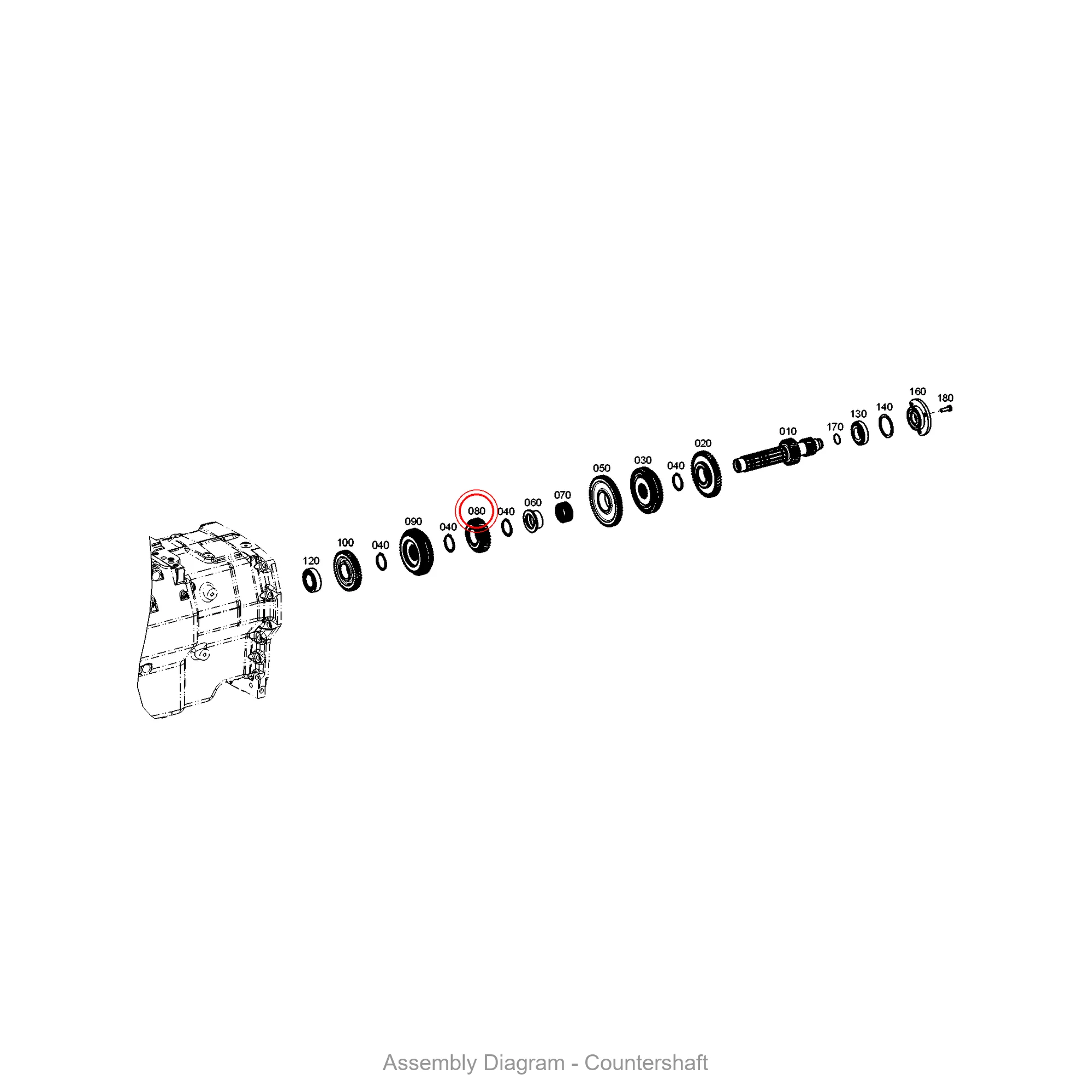

- Illustration section: COUNTERSHAFT
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 2093.303.086 |
|---|---|
| Normalized SKU | 2093303086 |
| Part name | GEAR |
| Product category | gear |
| Cross-reference support | Available for RFQ review |
| Weight | 1.4 |
Image and Documentation Notes
Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
