Overview
This OEM genuine ZF 2093.304.081 GEAR is a precision-machined component engineered for the WG100, WG130, and WG131 transmission series. Positioned within the final drive assembly, this gear transfers rotational torque from the differential to the axle shafts, ensuring smooth power delivery under heavy loads. The SKU 2093.304.081 is a direct replacement part that maintains factory tolerances and material hardness. When installed alongside the 5838109012: DIFFERENTIAL and the 0750117075: TAPER ROLLER BEARING, it forms the core of the drivetrain’s load-bearing gear train.
Symptoms of Failure
- Whining or howling noise during acceleration: Worn gear teeth create irregular contact patterns, producing a distinct high-pitched whine that intensifies under load.
- Vibration in the driveline at highway speeds: Excessive backlash from a damaged 2093.304.081 gear causes rhythmic shaking felt through the chassis.
- Metallic debris in transmission fluid: Flaking or pitting on the gear surface contaminates the oil, often visible during routine drain intervals.
- Intermittent loss of power to wheels: Stripped teeth or severe wear lead to momentary slipping, especially during sharp turns or hill climbs.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 2093.304.081 |
| Material | Case-hardened alloy steel (20MnCr5 equivalent) |
| Tooth Count | 37 (estimated) |
| Outer Diameter | 168 mm |
| Bore Diameter | 45 mm |
| Face Width | 32 mm |
| Weight | 2.85 kg |
| OEM Reference | ZF 2093.304.081 |
Compatibility
This gear is specifically designed for ZF WG-series transmissions, including the WG100, WG130, and WG131 models. It also fits select variants of the WG180 and WG200 series when used with the corresponding 5838300626: DIFFERENTIAL HOUSING. Always verify the tooth profile and spline count against your existing assembly. For complete differential rebuilds, pair this gear with the 2093209023: DIFFERENTIAL to ensure matched wear patterns.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 5838109012 | DIFFERENTIAL | Distributes torque between left and right wheels |
| 0750117075 | TAPER ROLLER BEARING | Supports gear shaft radial and axial loads |
| 2093209023 | DIFFERENTIAL | Alternative differential assembly for WG130 |
| 5838300626 | DIFFERENTIAL HOUSING | Encloses and supports gear set |
| 0631329088 | SPRING PIN | Secures gear alignment during assembly |
| 5838300811 | THRUST WASHER | Reduces axial friction on gear faces |
| 5838300721 | AXLE BEVEL GEAR | Transfers power to axle shafts |
| 5838300633 | AXLE | Connects differential to wheel hubs |
| 5838300753 | THRUST WASHER | Controls end-play in gear stack |
| 5838300818 | THRUST WASHER | Secondary axial load management |
Frequently Asked Questions
Q: Can I use the 2093.304.081 gear in a WG180 transmission?
A: Yes, but only if you also replace the differential housing with the 5838300626: DIFFERENTIAL HOUSING to accommodate the different bearing spread. Always measure backlash after installation.
Q: How do I know if my gear is worn beyond reuse?
A: Inspect for pitting on the tooth flanks and measure backlash. If backlash exceeds 0.35 mm, or if any tooth has visible spalling, replace the gear immediately to avoid damaging the 0750117075: TAPER ROLLER BEARING.
Q: Is the 2093.304.081 supplied with a thrust washer?
A: No, this gear is sold individually. For proper installation, order the 5838300811: THRUST WASHER separately to set the correct preload.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 2093.304.081 GEAR – Gear RFQ Support
PartsZF helps B2B buyers source ZF 2093.304.081 GEAR with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This gear page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 2093.304.081 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context

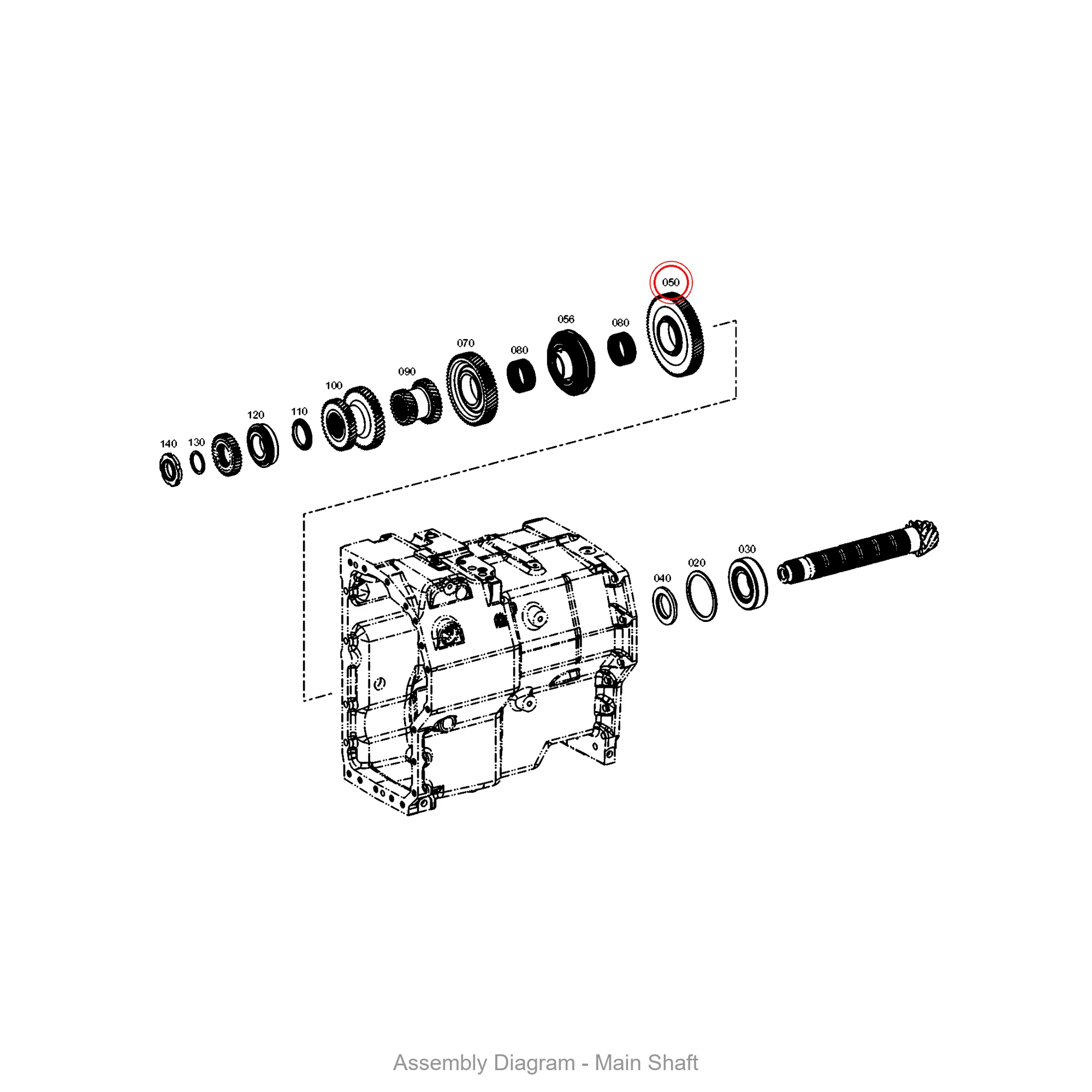

- Illustration section: MAIN SHAFT
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 2093.304.081 |
|---|---|
| Normalized SKU | 2093304081 |
| Part name | GEAR |
| Product category | gear |
| Cross-reference support | Available for RFQ review |
Image and Documentation Notes
Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
