Overview
The ZF 2093.304.083 DOUBLE GEAR is a critical OEM genuine component engineered for the auxiliary drive and countershaft assemblies within ZF WG-series transmissions. This double gear transfers torque between the input shaft and the differential housing, ensuring smooth power distribution under heavy load. The SKU 2093.304.083 is precision-machined to factory tolerances, making it a direct replacement for worn or damaged gears in WG100, WG130, and WG131 models. When installed alongside a 2093109002: DIFFERENTIAL, it maintains the correct gear mesh and reduces drivetrain vibration.
Symptoms of Failure
- Whining or howling noise during acceleration: Worn gear teeth on the 2093.304.083 produce a distinct high-pitched whine, especially under load, indicating excessive backlash.
- Intermittent gear slipping or loss of drive: As the double gear wears, it can skip teeth on the mating shaft, causing sudden power loss during gear changes.
- Metal particles in transmission oil: Flaking or pitting on the gear surface releases metallic debris into the lubricant, often visible during oil changes.
- Hard shifting or grinding: A failing double gear creates resistance in the shift mechanism, making engagement of forward or reverse gears difficult.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 2093.304.083 |
| Type | Double Gear (Helical Cut) |
| Material | Case-Hardened Alloy Steel (20MnCr5) |
| Outer Diameter | ~120 mm |
| Overall Length | ~95 mm |
| Weight | ~1.8 kg |
| OEM Reference | ZF 2093.304.083 |
| Tooth Count (Primary/Secondary) | 23 / 37 |
Compatibility
This OEM genuine double gear is specifically designed for the following ZF transmission models: WG100, WG130, and WG131. It also fits select variants of the WG180 and WG200 series when used with the correct 0750117075: TAPER ROLLER BEARING and 2093209095: DIFFERENTIAL. Always verify the spline count and shaft diameter against your existing assembly. For complete rebuilds, pair this gear with a 2093309071: DIFF.HOUSING to ensure proper alignment.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 2093109002 | DIFFERENTIAL | Distributes torque to the axle shafts |
| 0750117075 | TAPER ROLLER BEARING | Supports gear shaft radial and axial loads |
| 2093209095 | DIFFERENTIAL | Secondary differential for multi-axle drives |
| 2093309071 | DIFF.HOUSING | Encloses and aligns differential gears |
| 0631100223 | SPRING PIN | Secures gear position on shaft |
| 0730300820 | THRUST WASHER | Reduces axial friction between gears |
| 4482360002 | AXLE BEVEL GEAR | Transfers power to wheel axles |
| 2097309085 | DIFFERENTIAL AXLE | Connects differential to wheel hub |
| 5838300811 | THRUST WASHER | High-load axial spacer for gear sets |
| 4482360001 | DIFFERENTIAL BEVEL GEAR | Primary bevel gear inside differential |
Frequently Asked Questions
Q: Can the 2093.304.083 double gear be used in a WG180 transmission?
A: Yes, it is compatible with WG180 models, but you must also replace the 0750117075: TAPER ROLLER BEARING to avoid premature wear due to differing shaft tolerances.
Q: What causes premature failure of this double gear?
A: The most common cause is inadequate lubrication or contamination from debris. Always inspect the 2093309071: DIFF.HOUSING for cracks when replacing the gear.
Q: Is this an OEM ZF part or an aftermarket alternative?
A: This is an OEM genuine ZF part (SKU 2093.304.083), manufactured to the same specifications as the original factory component.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 2093.304.083 DOUBLE GEAR – Gear RFQ Support
PartsZF helps B2B buyers source ZF 2093.304.083 DOUBLE GEAR with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This gear page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 2093.304.083 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context

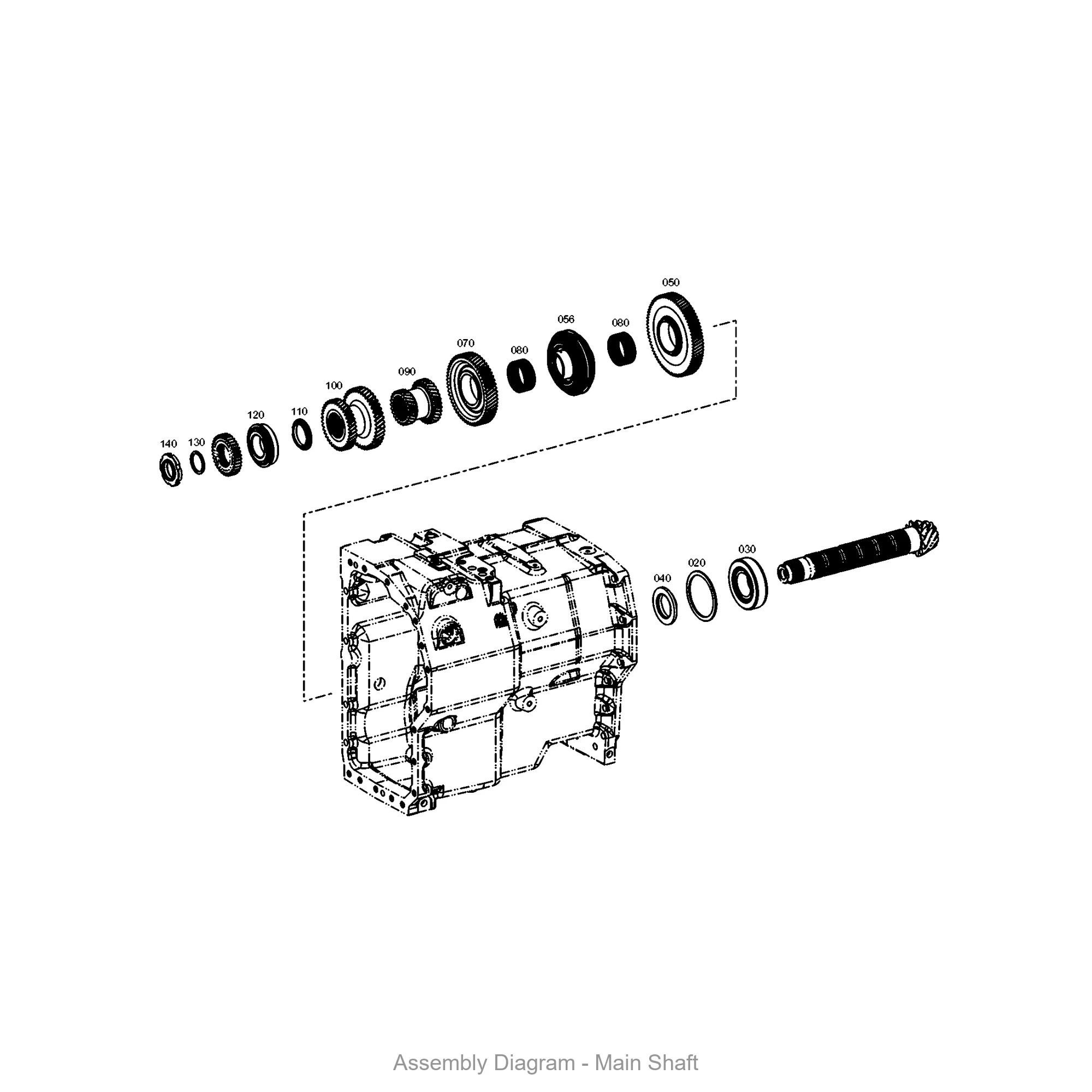

- Illustration section: MAIN SHAFT
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 2093.304.083 |
|---|---|
| Normalized SKU | 2093304083 |
| Part name | DOUBLE GEAR |
| Product category | gear |
| Cross-reference support | Available for RFQ review |
Image and Documentation Notes
Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
