Overview
The ZF 2093.306.045 GEAR SHIFT RAIL is a precision-machined component engineered for the WG100, WG130, and WG131 transmission series. This OEM genuine part functions as the primary mechanical interface between the shift lever and the internal shift forks, translating driver input into precise gear engagement. Positioned within the upper casing of the transmission housing, the rail slides axially to guide the shift forks into the correct synchronizer hubs. The SKU 2093.306.045 is manufactured to ZF’s exacting tolerances, ensuring smooth, repeatable shifting under heavy-duty industrial loads. When installed alongside a 5838109012: DIFFERENTIAL, this rail maintains the drivetrain’s mechanical integrity by preventing lateral play that could misalign the shift forks.
Symptoms of Failure
- Hard shifting or gear clash: A worn shift rail develops grooves or burrs on its sliding surface, causing the shift fork to bind. Operators often report difficulty engaging second or reverse gear, especially in cold oil conditions.
- Unexplained neutral drift: When the rail’s detent notches wear unevenly, the transmission may pop out of gear under load. This symptom is frequently misdiagnosed as a synchronizer issue.
- Metallic grinding noise during shifts: A bent or pitted rail creates intermittent contact with the shift fork bore, producing a distinct scraping sound. This is often accompanied by fine metal particles in the transmission oil.
- Oil seepage from the shift tower: A cracked rail or worn O-ring groove at the shift tower interface allows transmission fluid to weep past the seal, leaving visible drips on the bell housing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 2093.306.045 |
| Material | Case-hardened alloy steel (20MnCr5 equivalent) |
| Overall Length | 312 mm ±0.5 mm |
| Rail Diameter | 18 mm (sliding section) |
| Detent Notch Depth | 2.5 mm (four positions) |
| Weight | 0.87 kg (1.92 lbs) |
| Surface Hardness | 58–62 HRC (case depth 0.8 mm) |
| OEM Reference | ZF 2093.306.045 |
Compatibility
This shift rail is directly compatible with ZF WG100, WG130, and WG131 transmissions found in medium-duty trucks, agricultural tractors, and industrial material handlers. It also fits select variants of the WG180 and WG200 series when used with the correct shift fork assembly. For optimal drivetrain alignment, always pair this rail with a 0750117075: TAPER ROLLER BEARING to support the main shaft, and verify the 5838300626: DIFFERENTIAL HOUSING bore is free of scoring. The rail also interfaces with the 2093209023: DIFFERENTIAL carrier assembly in WG130 units, where precise rail travel is critical for load-sharing between axles.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 5838109012 | DIFFERENTIAL | Distributes torque between drive wheels |
| 0750117075 | TAPER ROLLER BEARING | Supports axial and radial loads on main shaft |
| 2093209023 | DIFFERENTIAL | Rear axle differential for WG130 series |
| 5838300626 | DIFFERENTIAL HOUSING | Encloses differential gears and bearings |
| 0631329088 | SPRING PIN | Secures shift rail to shift fork |
| 5838300811 | THRUST WASHER | Controls axial clearance in differential |
| 5838300721 | AXLE BEVEL GEAR | Transfers power from differential to axle shaft |
| 5838300633 | AXLE | Drives wheel hub assembly |
| 5838300753 | THRUST WASHER | Reduces friction between bevel gear and housing |
| 5838300818 | THRUST WASHER | Adjusts differential side gear clearance |
Frequently Asked Questions
Q: How do I know if my ZF WG100 shift rail is worn beyond repair?
A: Measure the rail diameter at the detent notches using a micrometer. If the diameter is less than 17.4 mm at any point, or if you can feel a distinct groove with your fingernail, replacement with SKU 2093.306.045 is necessary. A worn rail will also show visible scoring lines running parallel to the sliding axis.
Q: Can I install this shift rail without removing the transmission from the vehicle?
A: In most WG130 and WG131 applications, the shift rail can be accessed by removing the shift tower cover and the top plate. However, if the rail is seized or bent, you may need to drop the transmission to avoid damaging the shift fork bore. Always replace the 0631329088: SPRING PIN during reinstallation.
Q: Does this part come with the detent spring and ball?
A: No, the 2093.306.045 is the rail only. The detent spring and ball are sold separately. We recommend inspecting the shift fork bore and the 5838300811: THRUST WASHER for wear whenever the rail is replaced, as debris from a failing rail often damages these adjacent components.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 2093.306.045 GEAR SHIFT RAIL – Gear RFQ Support
PartsZF helps B2B buyers source ZF 2093.306.045 GEAR SHIFT RAIL with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This gear page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 2093.306.045 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context

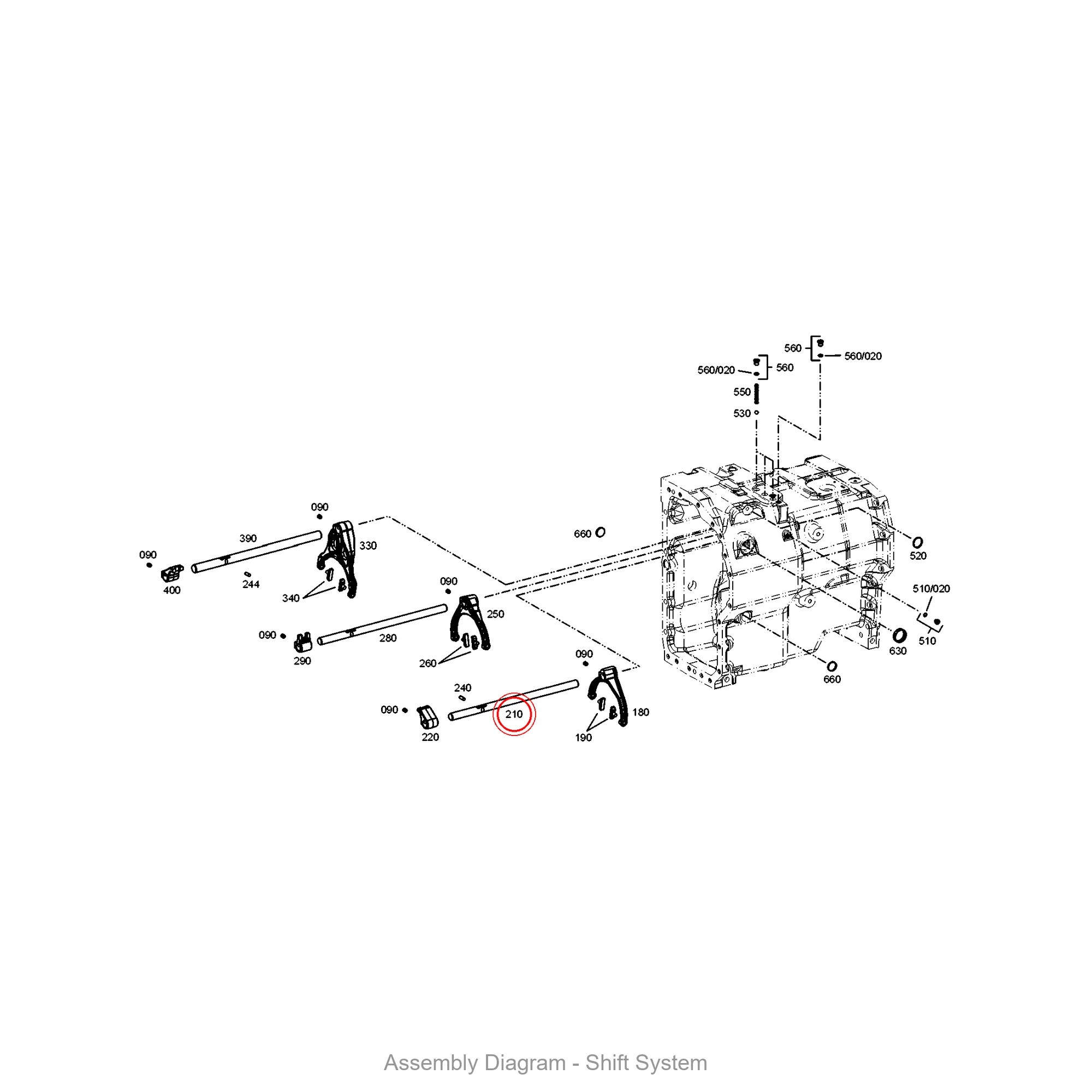

- Illustration section: SHIFT SYSTEM
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 2093.306.045 |
|---|---|
| Normalized SKU | 2093306045 |
| Part name | GEAR SHIFT RAIL |
| Product category | gear |
| Cross-reference support | Available for RFQ review |
| Weight | 1.4 |
Image and Documentation Notes
Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
