Overview
This genuine ZF 2093.306.054 GEAR SHIFT FORK is a critical actuation component within the WG100, WG130, and WG131 transmission assemblies. It is responsible for precisely engaging and disengaging the gear selector sleeves, directing power flow through the appropriate gear sets. Positioned on the shift rail within the transmission housing, this fork translates the driver’s input into smooth, reliable gear changes. The SKU 2093.306.054 is manufactured to OEM specifications, ensuring exact fitment and consistent shift quality. When paired with a properly functioning 5838109012: DIFFERENTIAL, the entire drivetrain operates with optimal efficiency and reduced wear.
Symptoms of Failure
- Hard or grinding gear engagement: A worn shift fork often causes the transmission to grind when shifting into gear, particularly under load. This is a common long-tail search query for “ZF transmission grinding when shifting.”
- Gear pop-out or slipping: If the fork’s pads are worn, it may not fully seat the gear collar, leading to the transmission unexpectedly jumping out of gear during operation.
- Excessive shift lever play: A bent or cracked shift fork creates slop in the shift linkage, making it difficult to find gears and resulting in a vague, imprecise shifter feel.
- Unusual metallic noises from the transmission: A failing fork can contact rotating components, producing a distinct rattling or scraping sound that intensifies with speed.
Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | 2093.306.054 |
| Material | Forged steel with hardened contact pads |
| Overall Length | ~185 mm |
| Fork Width (Inner Slot) | ~12.5 mm |
| Weight | ~0.85 kg |
| OEM Reference | ZF 2093.306.054 |
| Surface Treatment | Phosphate coating for corrosion resistance |
Compatibility
This genuine shift fork is engineered for direct replacement in the following ZF transmission models: WG100, WG130, and WG131. It is also commonly utilized in the WG180 and WG200 series where the shift mechanism shares identical geometry. Always verify the fork’s pad thickness and rail diameter against your specific unit. For a complete overhaul, consider replacing the 0750117075: TAPER ROLLER BEARING and the 2093209023: DIFFERENTIAL to ensure all mating components meet factory tolerances.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 5838109012 | DIFFERENTIAL | Distributes torque between axles |
| 0750117075 | TAPER ROLLER BEARING | Supports rotating shafts under axial load |
| 2093209023 | DIFFERENTIAL | Secondary torque distribution unit |
| 5838300626 | DIFFERENTIAL HOUSING | Encloses and protects differential gears |
| 0631329088 | SPRING PIN | Secures shift fork to rail |
| 5838300811 | THRUST WASHER | Controls axial clearance in gear sets |
| 5838300721 | AXLE BEVEL GEAR | Transfers power to axle shafts |
| 5838300633 | AXLE | Drives wheel hubs |
| 5838300753 | THRUST WASHER | Reduces friction on planetary gears |
| 5838300818 | THRUST WASHER | Prevents gear-to-housing contact |
Frequently Asked Questions
Q: How do I know if my ZF 2093.306.054 shift fork is bent?
A: Visually inspect the fork arms for symmetry. A bent fork will show uneven wear on the contact pads and cause the shift rail to bind. Measuring the fork’s inner slot width with calipers can reveal deformation beyond 0.5 mm.
Q: Can I replace the shift fork without removing the transmission?
A: In most WG100/WG130 applications, the shift fork is accessible after removing the transmission side cover. However, if the 5838300626: DIFFERENTIAL HOUSING obstructs access, a full transmission removal may be necessary to avoid damaging seals.
Q: What other parts should I replace when installing a new shift fork?
A: It is strongly recommended to replace the 0631329088: SPRING PIN and inspect all thrust washers such as 5838300818: THRUST WASHER for scoring. Worn shift forks often indicate broader wear in the selector mechanism.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 2093.306.054 GEAR SHIFT FORK – Gear RFQ Support
PartsZF helps B2B buyers source ZF 2093.306.054 GEAR SHIFT FORK with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This gear page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 2093.306.054 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context

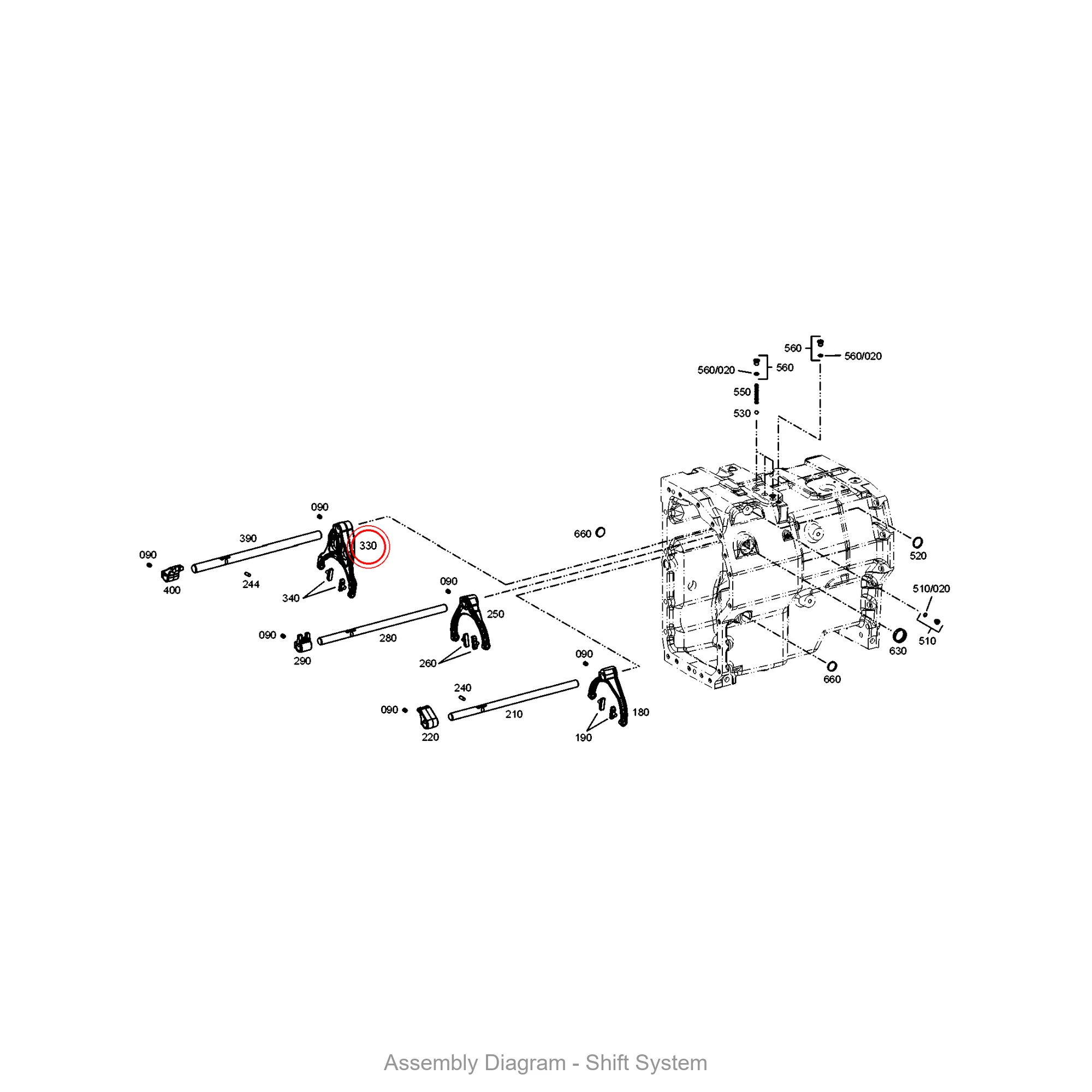

- Illustration section: SHIFT SYSTEM
