ZF 2093.359.059 INNER DISK CARRIER
ZF Part Number: 2093.359.059 (also written as 2093359059 / 2093.359.059 / 2093 359 059)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Lastschaltgr | 350 | 1 |
| Power Shift Group | 350 | 1 |
Application / Compatibility
| Assembly | Section | Model |
|---|---|---|
| 2093.005.092 | LASTSCHALTGR | — |
| 2093.005.094 | LASTSCHALTGR | — |
| 2093.005.130 | LASTSCHALTGR | — |
| 2093.005.131 | LASTSCHALTGR | — |
| 2093.005.132 | LASTSCHALTGR | — |
| 2093.005.133 | LASTSCHALTGR | — |
| 2093.005.134 | LASTSCHALTGR | — |
| 2093.005.135 | LASTSCHALTGR | — |
| 2093.005.136 | LASTSCHALTGR | — |
| 2093.005.138 | LASTSCHALTGR | — |
Related Parts in Same Assembly
- 5838.300.288 — CLUTCH BELL HOUSING (Qty: 1)
- 0501.222.007 — VALVE BLOCK (Qty: 1)
- 0501.325.280 — SOLENOID VALVE (Qty: 1)
- 0501.327.379 — O-RING (Qty: 1)
- 0501.327.378 — O-RING (Qty: 1)
- 0501.327.380 — O-RING (Qty: 1)
- 0501.327.381 — SCREW (Qty: 1)
- 0750.117.075 — TAPER ROLLER BEARING (Qty: 2)
Frequently Asked Questions
What is ZF part number 2093.359.059?
ZF 2093.359.059 is an OEM inner disk carrier produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as various ZF transmission models. This is a genuine ZF component, not an aftermarket reproduction.
Where is ZF 2093.359.059 installed in the transmission?
This inner disk carrier is located in the lastschaltgr area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 350 in the Lastschaltgr section.
How do I look up ZF part 2093.359.059?
This part can be found under several formats: 2093359059 / 2093.359.059 / 2093 359 059. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (2093.359.059).
When should clutch disks be replaced?
Replace clutch disks when thickness is below the minimum specification in the ZF service manual, or if you observe slipping, burnt smell, or glazing on friction surfaces. Always replace the complete disk pack 鈥?never mix old and new disks.
Where can I buy ZF 2093.359.059?
You can purchase genuine ZF 2093.359.059 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

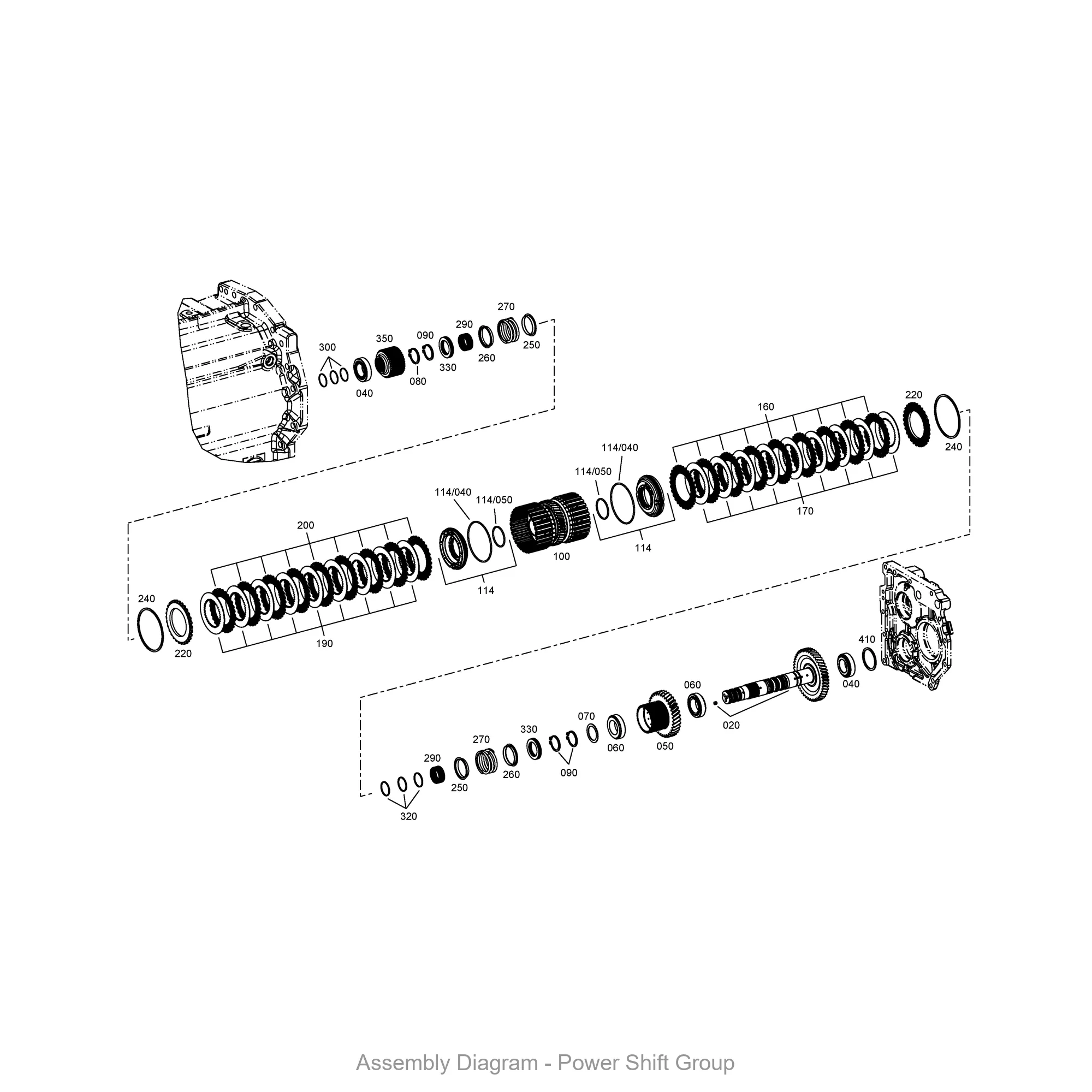

Exploded View / Assembly Diagram
The diagram below shows where ZF 2093.359.059 is located within the transmission assembly.
