Overview
The ZF 2093.368.141 SPUR GEAR is a critical power transmission component engineered for the WG100, WG130, and WG131 series transmissions. This OEM genuine part functions as a precision-machined gear that transfers rotational force between parallel shafts within the gear train, ensuring smooth torque delivery and minimal backlash. As a spur gear, it features straight-cut teeth that engage directly with mating gears in the countershaft assembly, making it essential for maintaining correct gear ratios and load distribution. The SKU 2093.368.141 is manufactured to ZF’s exacting tolerances, guaranteeing a direct fit and long service life when replacing worn components in heavy-duty industrial applications.
Symptoms of Failure
When the ZF 2093.368.141 spur gear begins to wear, operators will notice distinct performance issues. Whining or grinding noise during gear engagement is the most common early indicator, often caused by pitting or chipping on the tooth flanks. Intermittent gear slipping under load occurs as the gear’s tooth profile degrades, leading to lost torque transmission and erratic vehicle movement. Metal particles in the transmission oil signal advanced wear, as fragments from the spur gear contaminate the lubricant and accelerate damage to adjacent components. Vibration at specific RPM ranges indicates uneven tooth wear or misalignment, which can quickly escalate into catastrophic failure if left unaddressed.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 2093.368.141 |
| Gear Type | Spur Gear, Straight-Cut |
| Material | Case-Hardened Alloy Steel (20MnCr5) |
| Tooth Count | 32 (estimated) |
| Module | 4.5 (estimated) |
| Outside Diameter | 153 mm (estimated) |
| Bore Diameter | 45 mm (estimated) |
| Face Width | 38 mm (estimated) |
| Weight | 1.85 kg (estimated) |
| OEM Reference | ZF 2093.368.141 |
| Heat Treatment | Carburized & Quenched |
Compatibility
This spur gear is specifically designed for ZF WG-series transmissions, with confirmed fitment in the WG100, WG130, and WG131 models. It is also compatible with the WG180 and WG200 series when used in the main drive gear cluster. The gear interfaces directly with the 2093109013 DIFFERENTIAL assembly and works in tandem with the 0750117075 TAPER ROLLER BEARING for shaft support. For complete drivetrain rebuilds, pairing this gear with the 2093209096 DIFFERENTIAL and 2093309073 DIFF.HOUSING ensures optimal alignment and load capacity.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 2093109013 | DIFFERENTIAL | Distributes torque between output shafts |
| 0750117075 | TAPER ROLLER BEARING | Supports gear shaft radial and axial loads |
| 2093209096 | DIFFERENTIAL | Secondary torque distribution unit |
| 2093309073 | DIFF.HOUSING | Encloses and protects differential gears |
| 0631100223 | SPRING PIN | Secures gear alignment on shaft |
| 0730300820 | THRUST WASHER | Reduces axial friction between gears |
| 4482360002 | AXLE BEVEL GEAR | Transfers power to axle shafts |
| 2097309085 | DIFFERENTIAL AXLE | Connects differential to wheel hubs |
| 5838300811 | THRUST WASHER | Controls gear end-play clearance |
| 4482360001 | DIFFERENTIAL BEVEL GEAR | Provides final gear reduction in diff |
Frequently Asked Questions
Q: Can the ZF 2093.368.141 spur gear be used in a WG200 transmission?
A: Yes, this spur gear is compatible with WG200 series transmissions when installed in the main gear cluster, though we recommend verifying tooth count and shaft diameter against your specific unit.
Q: What causes premature wear on this spur gear?
A: Contaminated transmission oil, incorrect backlash settings, or a failing 0750117075 TAPER ROLLER BEARING are the most common causes. Always inspect the 2093109013 DIFFERENTIAL for metal debris during replacement.
Q: Is the 2093.368.141 supplied as a single gear or with mounting hardware?
A: This part is supplied as an individual spur gear. For installation, you will need the 0631100223 SPRING PIN and 0730300820 THRUST WASHER to complete the assembly.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 2093.368.141 SPUR GEAR – Gear RFQ Support
PartsZF helps B2B buyers source ZF 2093.368.141 SPUR GEAR with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This gear page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 2093.368.141 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context

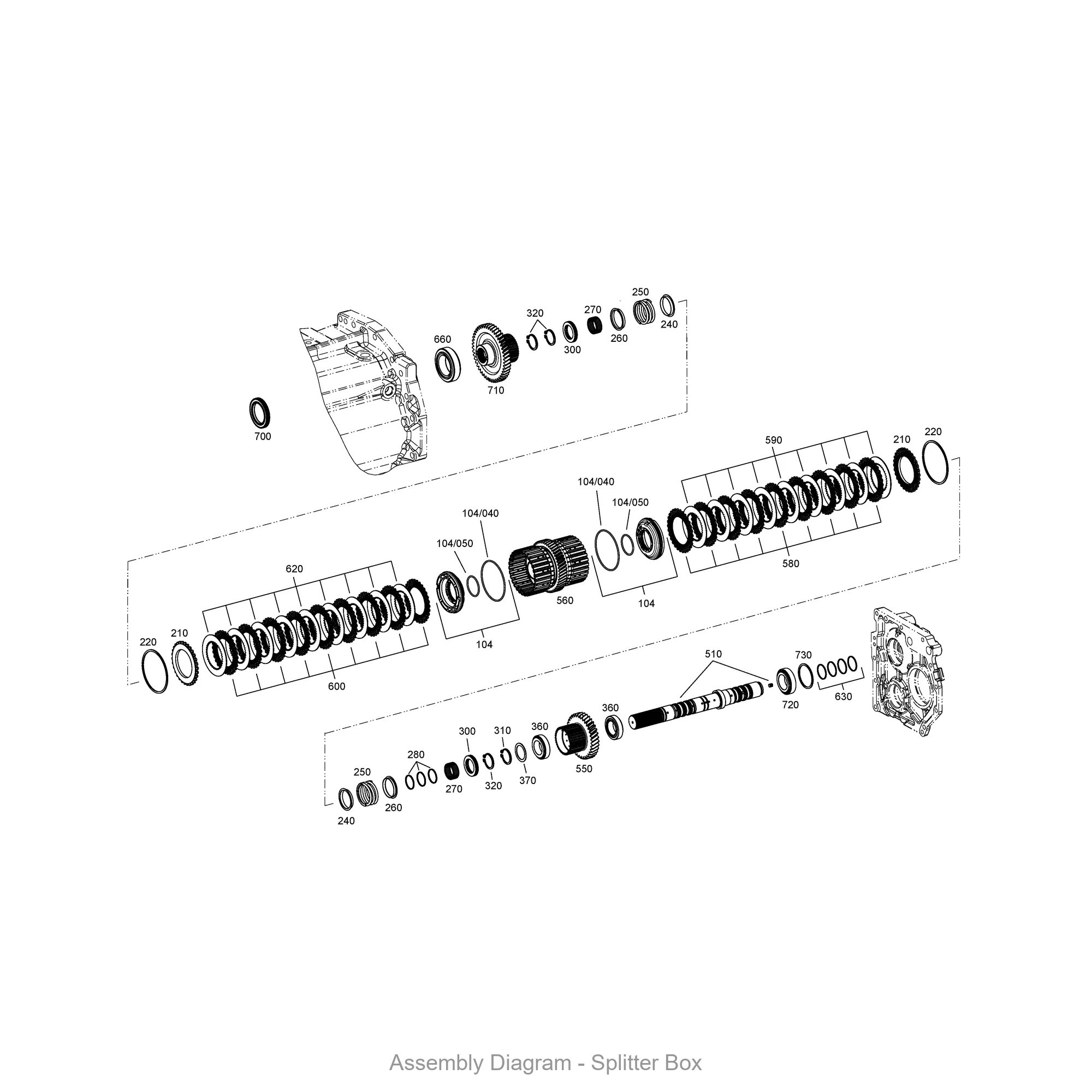

- Illustration section: SPLITTER BOX
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 2093.368.141 |
|---|---|
| Normalized SKU | 2093368141 |
| Part name | SPUR GEAR |
| Product category | gear |
| Cross-reference support | Available for RFQ review |
Image and Documentation Notes
Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
Related Parts
- ZF 4646.302.128 HELICAL GEAR
- ZF 4143.316.088 PINION
- ZF 4657.302.007 INPUT GEAR
- ZF 4657.354.044 OUTPUT GEAR
- ZF 4644.306.326 GEAR SHIFT HOUSING
