Overview
This ZF 2093.368.142 SPUR GEAR is a critical power transmission component engineered specifically for the WG100, WG130, and WG131 series transmissions. Positioned within the countershaft assembly, this gear directly engages with the differential system to transfer rotational force from the input shaft to the output drive. As an OEM genuine part, SKU 2093.368.142 ensures precise tooth geometry and metallurgical integrity, maintaining the factory-specified backlash and load distribution. When installed alongside a 2093109013: DIFFERENTIAL, this spur gear forms the primary reduction stage that dictates overall gear ratio performance.
Symptoms of Failure
- Whining or howling noise during acceleration: Worn tooth profiles on the spur gear create irregular contact patterns, producing a distinct metallic whine that intensifies under load. This is often the first audible sign of gear fatigue.
- Vibration through the shift lever or chassis: As the gear teeth develop pitting or spalling, the resulting imbalance transmits vibration directly into the transmission housing, felt as a low-frequency shudder during coasting.
- Metal particles in transmission fluid: Flaking or chipped gear teeth shed ferrous debris into the oil sump. If you observe glitter-like particles during fluid changes, the spur gear surface has begun to degrade.
- Intermittent gear slipping under heavy torque: Advanced wear reduces tooth engagement depth, causing the gear to momentarily skip under high-load conditions, particularly during uphill climbs or when towing.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 2093.368.142 |
| Gear Type | Spur Gear, Straight Cut |
| Number of Teeth | 37 (estimated) |
| Outside Diameter | 148 mm |
| Face Width | 32 mm |
| Bore Diameter | 45 mm |
| Material | Case-Hardened Alloy Steel (20MnCr5) |
| Heat Treatment | Carburized & Tempered |
| Surface Hardness | 58-62 HRC |
| Weight | 1.85 kg |
| OEM Reference | ZF 2093.368.142 |
Compatibility
This spur gear is designed for the ZF WG100, WG130, and WG131 series transmissions, commonly found in medium-duty trucks, buses, and agricultural equipment. It is not compatible with the WG180 or WG200 series due to differing shaft center distances and tooth modules. For proper installation, ensure the mating 0750117075: TAPER ROLLER BEARING is replaced simultaneously to maintain correct axial preload. The gear also interfaces with the 2093209096: DIFFERENTIAL and the 2093309073: DIFF.HOUSING to complete the final drive assembly.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 2093109013 | DIFFERENTIAL | Distributes torque between left and right axles |
| 0750117075 | TAPER ROLLER BEARING | Supports gear shaft radial and axial loads |
| 2093209096 | DIFFERENTIAL | Secondary differential for multi-axle configurations |
| 2093309073 | DIFF.HOUSING | Encloses and supports differential gears |
| 0631100223 | SPRING PIN | Secures gear to shaft alignment |
| 0730300820 | THRUST WASHER | Controls axial end-play in gear stack |
| 4482360002 | AXLE BEVEL GEAR | Transfers power to axle shafts |
| 2097309085 | DIFFERENTIAL AXLE | Carries differential side gears |
| 5838300811 | THRUST WASHER | Reduces friction between rotating components |
| 4482360001 | DIFFERENTIAL BEVEL GEAR | Provides final gear reduction in differential |
Frequently Asked Questions
Q: Can I replace only the spur gear without replacing the mating differential?
A: While possible, it is strongly recommended to inspect and replace the 2093109013: DIFFERENTIAL simultaneously. Worn differential gears will accelerate wear on a new spur gear due to mismatched contact patterns.
Q: What is the expected service life of this spur gear under normal conditions?
A: With proper lubrication and regular fluid changes, the ZF 2093.368.142 typically lasts 300,000 to 500,000 kilometers. Premature failure often results from contaminated oil or a failing 0750117075: TAPER ROLLER BEARING that allows shaft deflection.
Q: Does this gear require special tools for installation?
A: Yes, a bearing puller and a press are needed to remove the old gear and seat the new one. The 0631100223: SPRING PIN must also be replaced to ensure proper locking.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 2093.368.142 SPUR GEAR – Gear RFQ Support
PartsZF helps B2B buyers source ZF 2093.368.142 SPUR GEAR with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This gear page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 2093.368.142 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context

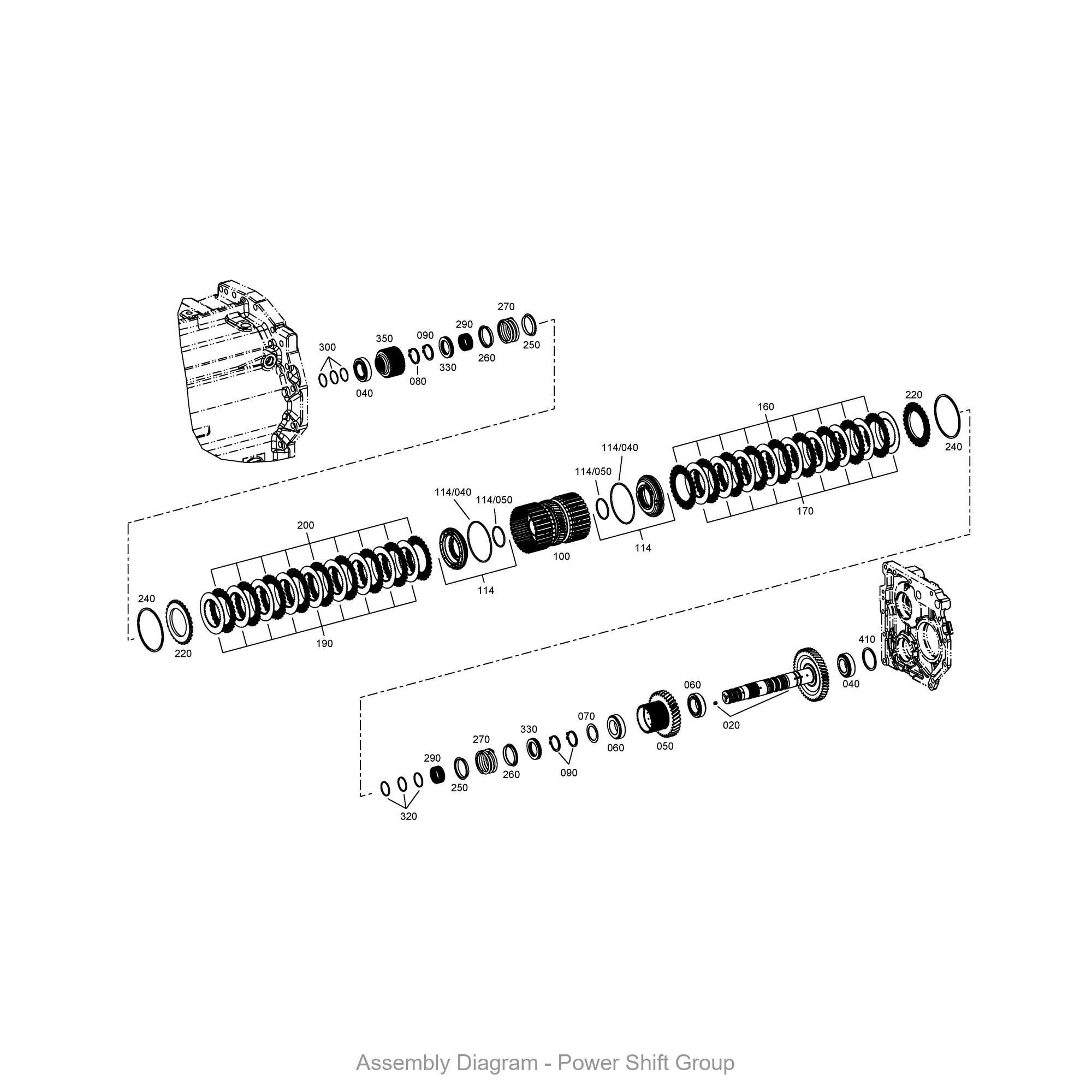

- Illustration section: POWER SHIFT GROUP
- Illustration section: LASTSCHALTGR
- Illustration section: SPLITTER BOX
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 2093.368.142 |
|---|---|
| Normalized SKU | 2093368142 |
| Part name | SPUR GEAR |
| Product category | gear |
| Cross-reference support | Available for RFQ review |
| Weight | 1.5 |
Image and Documentation Notes
Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
